Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place drain pan under the vehicle.
  2. Draw all of the fluid out of the reservoir in order to avoid spills.
  3. Disconnect the hydraulic brake booster hose from the power steering reservoir.

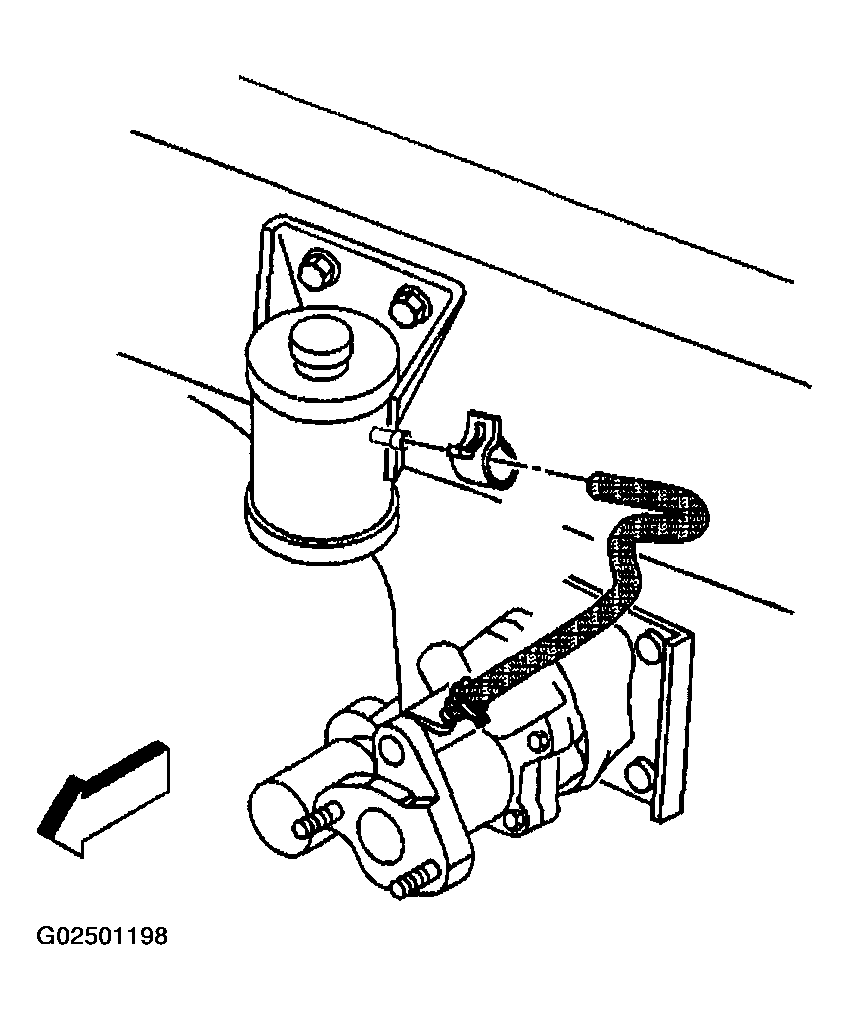

    Fig 1: Identifying Hydraulic Brake Booster Hose To Power Steering Reservoir
    G02501198Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering reservoir to the power steering pump hose from the power steering reservoir.

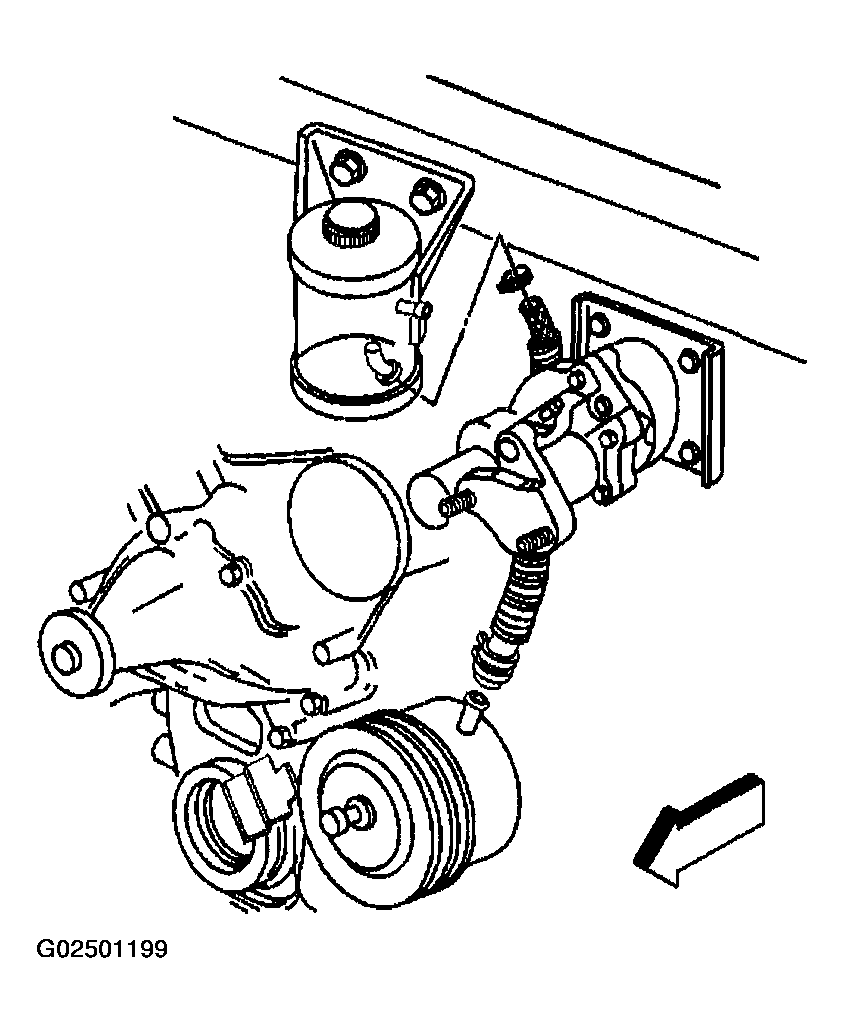

    Fig 2: Identifying Power Steering Reservoir To Power Steering Pump Hose
    G02501199Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering reservoir mounting bolts.
  6. Remove the power steering reservoir.

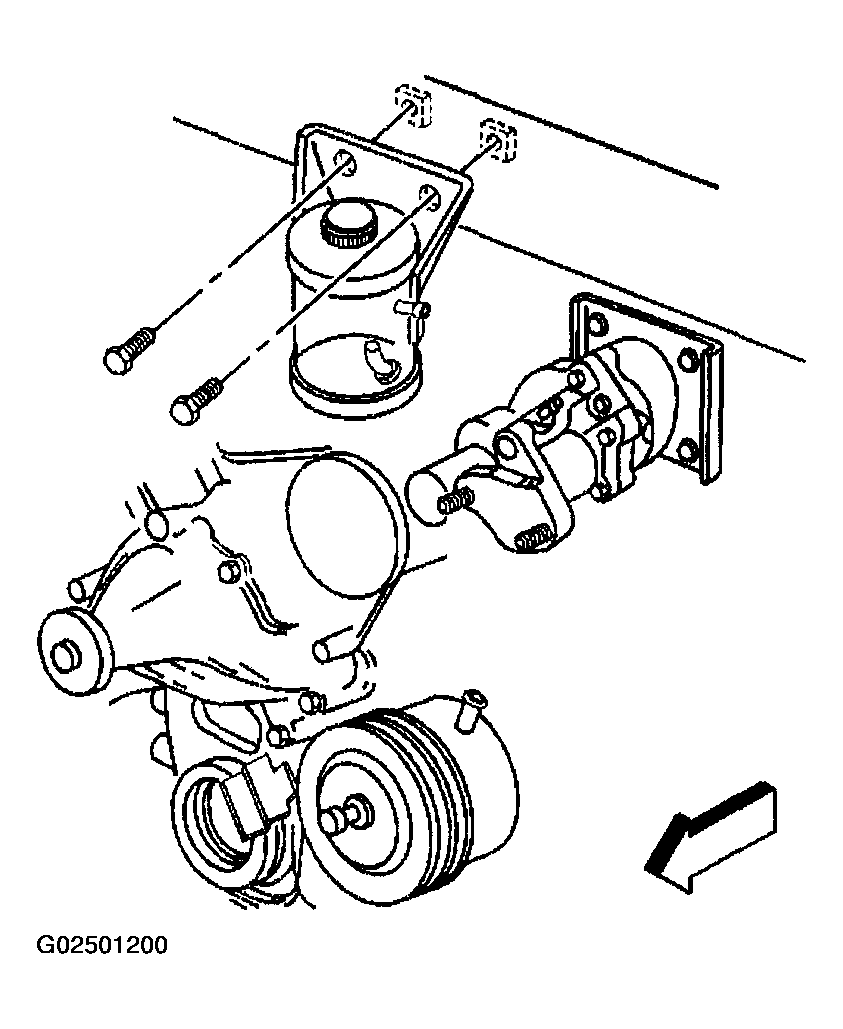

    Fig 3: Identifying Power Steering Reservoir
    G02501200Courtesy of GENERAL MOTORS CORP.
