Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower fan shroud.
  2. Remove the drive belt.
  3. Remove the power steering pump pulley using the J 25034-C  .

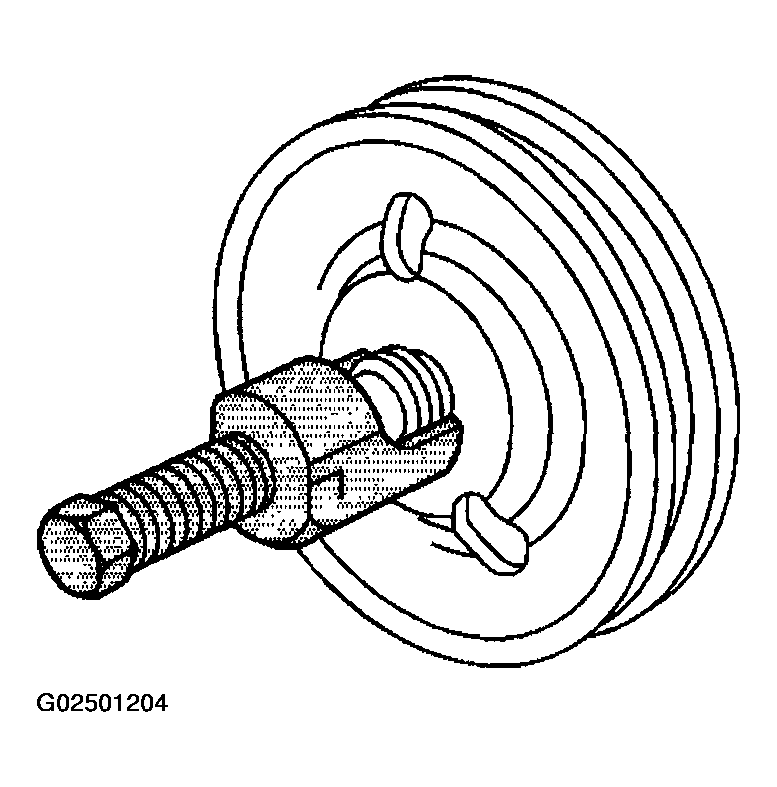

Fig 1: Removing Power Steering Pump Pulley
G02501204Courtesy of GENERAL MOTORS CORP.
