Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the power steering cooler hose from the steering pump.
  2. Raise the vehicle.
  3. Install a drain pan under the vehicle.
  4. Disconnect the power steering cooler pipe hose from the steering gear.

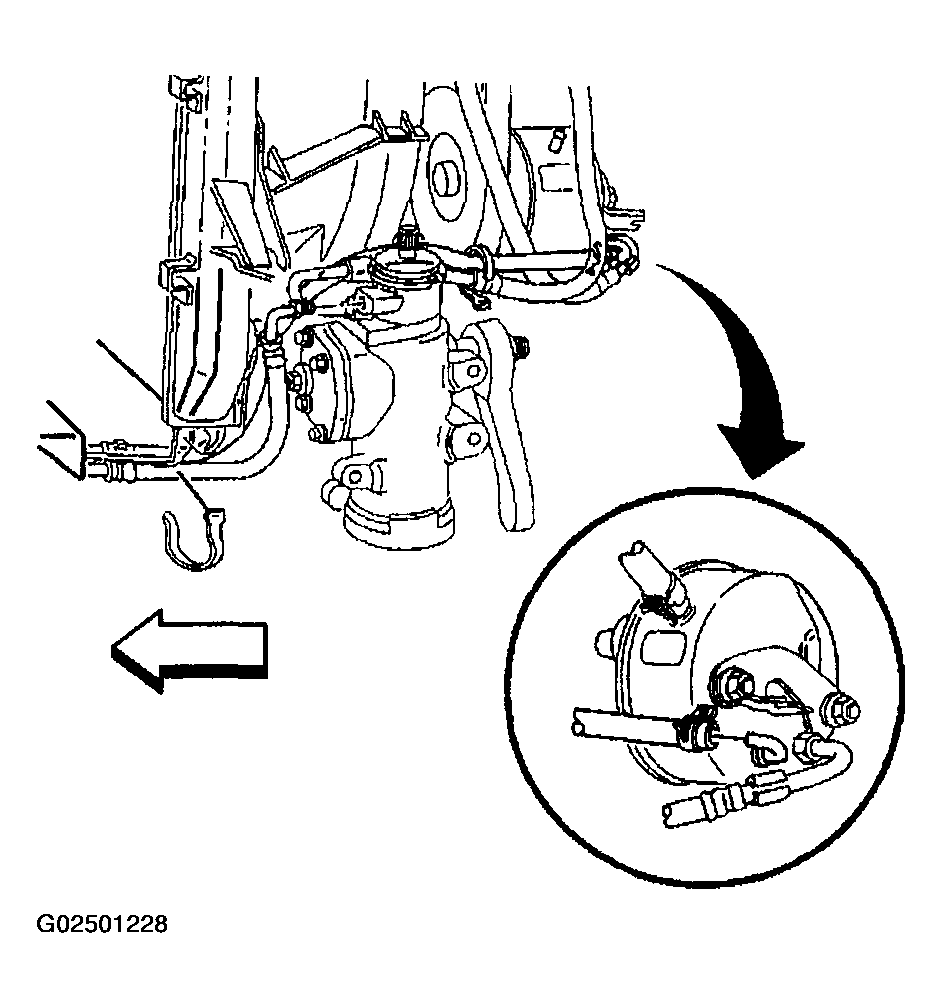

    Fig 1: Identifying Power Steering Cooler Pipe Hose At Steering Gear
    G02501228Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering cooler pipe (2) from the air baffle (3).

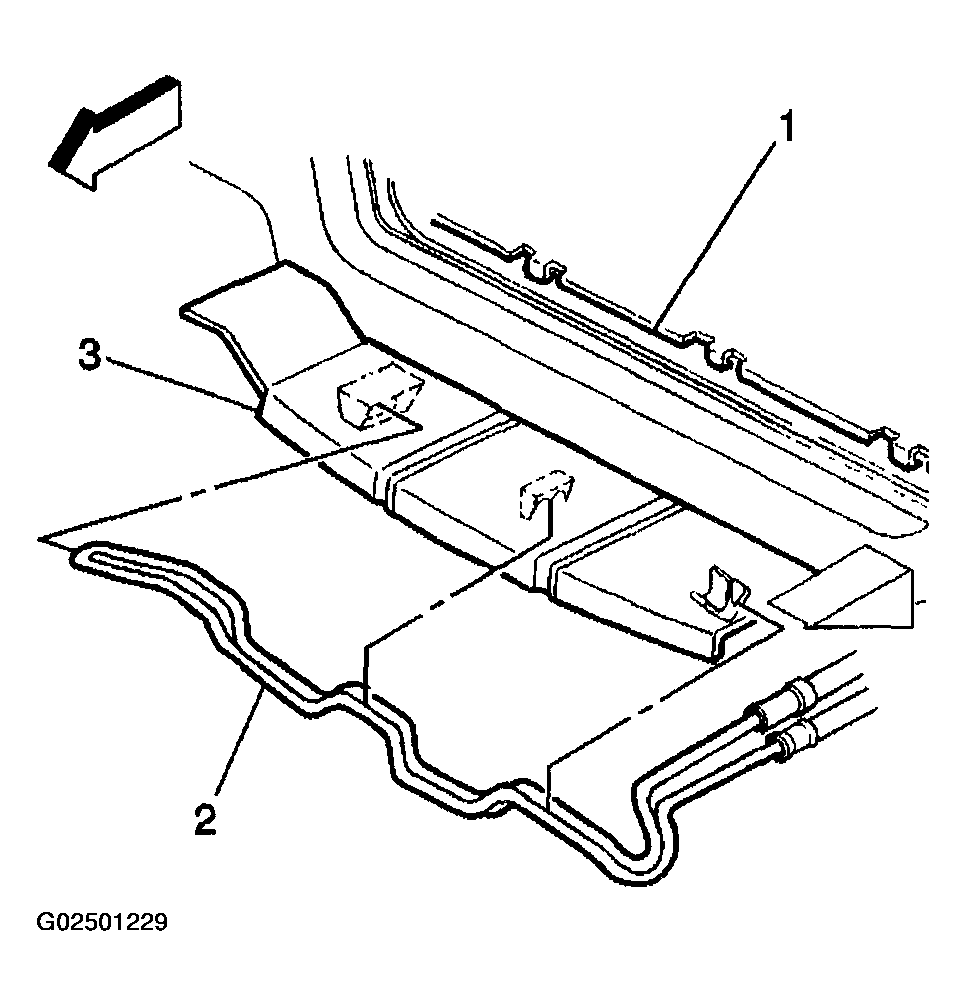

    Fig 2: Identifying Power Steering Cooler Pipe At Air Baffle
    G02501229Courtesy of GENERAL MOTORS CORP.
  6. Remove the power steering cooler pipe from the vehicle.
