Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pitman arm. Refer to PITMAN ARM REPLACEMENT (RWD) or PITMAN ARM REPLACEMENT (AWD) .
  2. Remove the snap ring (1) using J 4245  .
    Fig 1: Removing Snap Ring
    G02501223Courtesy of GENERAL MOTORS CORP.
  3. Remove the following components from the power steering gear (1):
    1. The dust seal (5)
    2. The return ring (4)
    3. The washer (3)
    4. The pitman shaft oil seal (2)
  4. Inspect the pitman shaft surface for roughness or pitting. Replace the pitman shaft if the shaft is pitted.
  5. Clean the pitman shaft and seal areas using a wire brush.

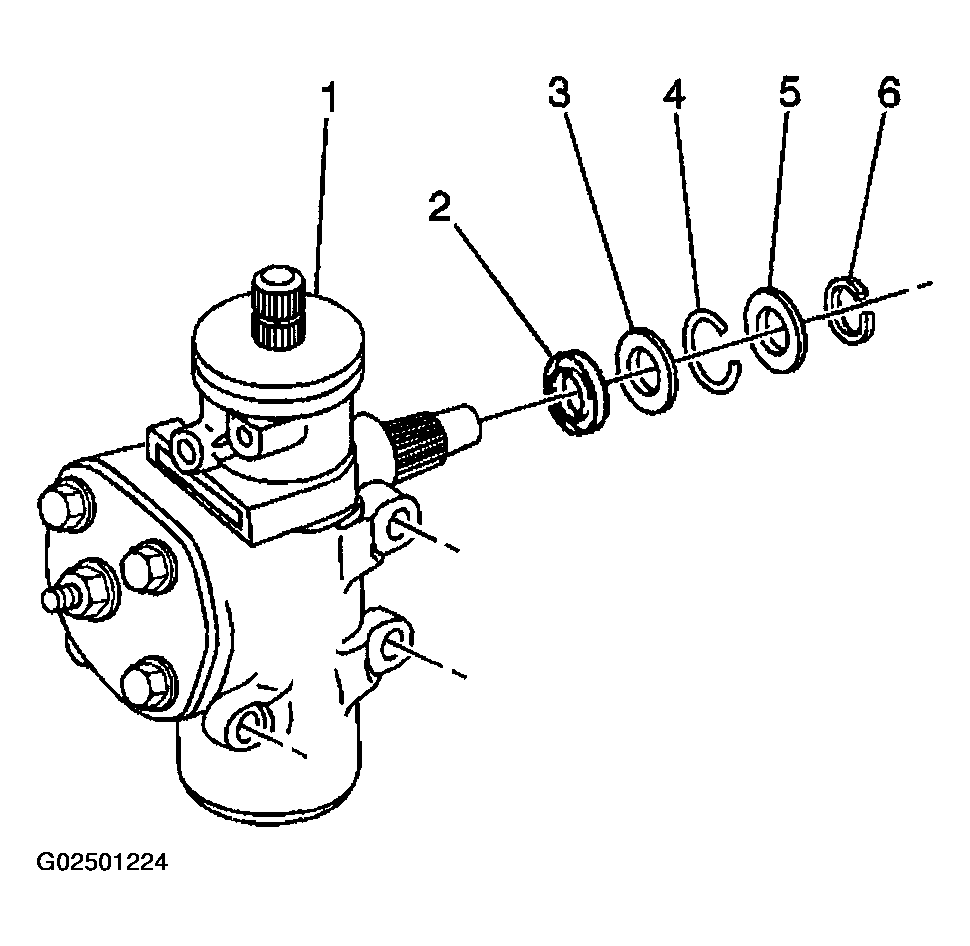

    Fig 2: Identifying Pitman Shaft
    G02501224Courtesy of GENERAL MOTORS CORP.
