Rattle, Clunk Or Shudder Noise From Power Steering System
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

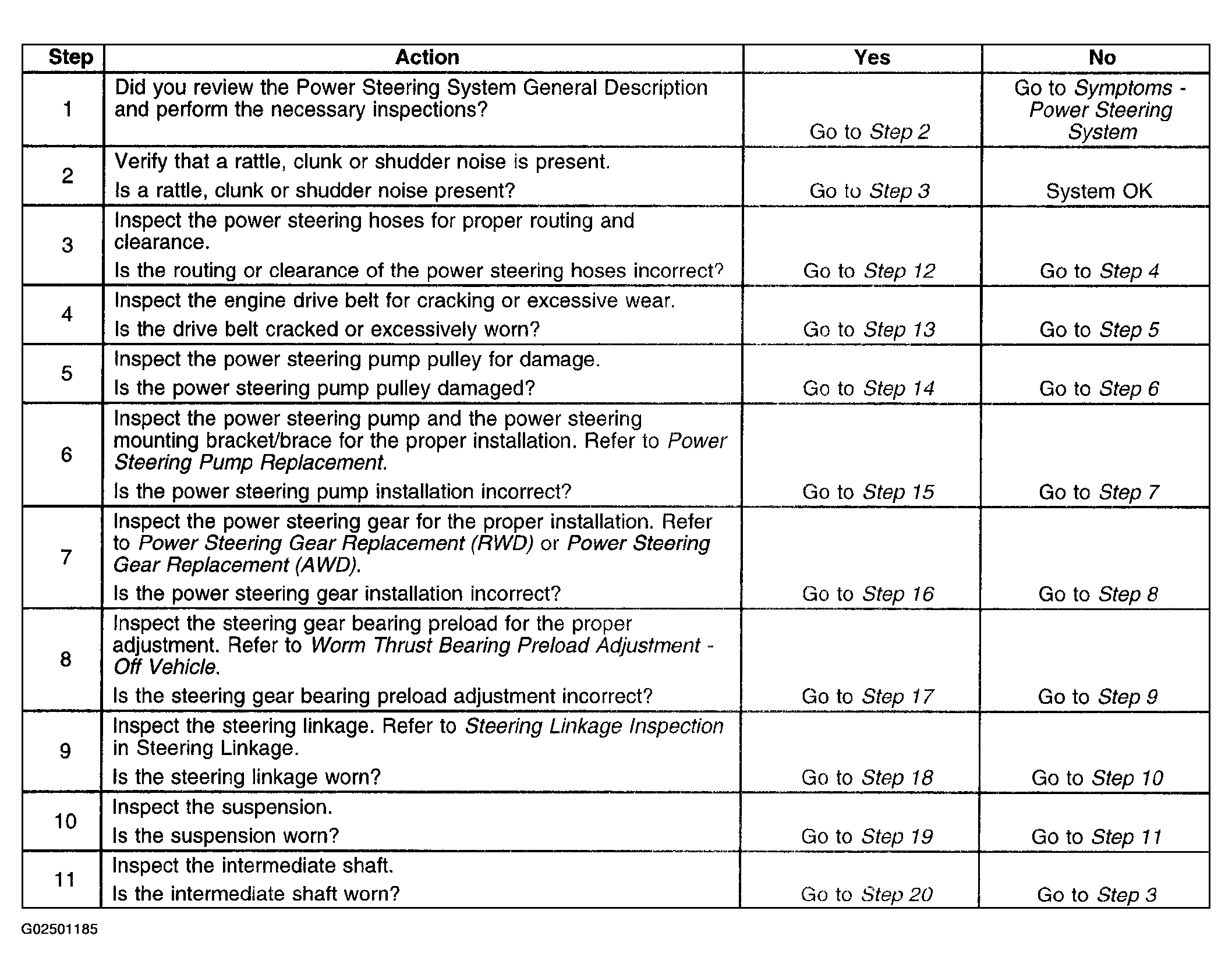

Fig 1: Identifying Rattle, Clunk Or Shudder Noise From Power Steering System Diagnosis (Steps 1-11)
Courtesy of GENERAL MOTORS CORP.

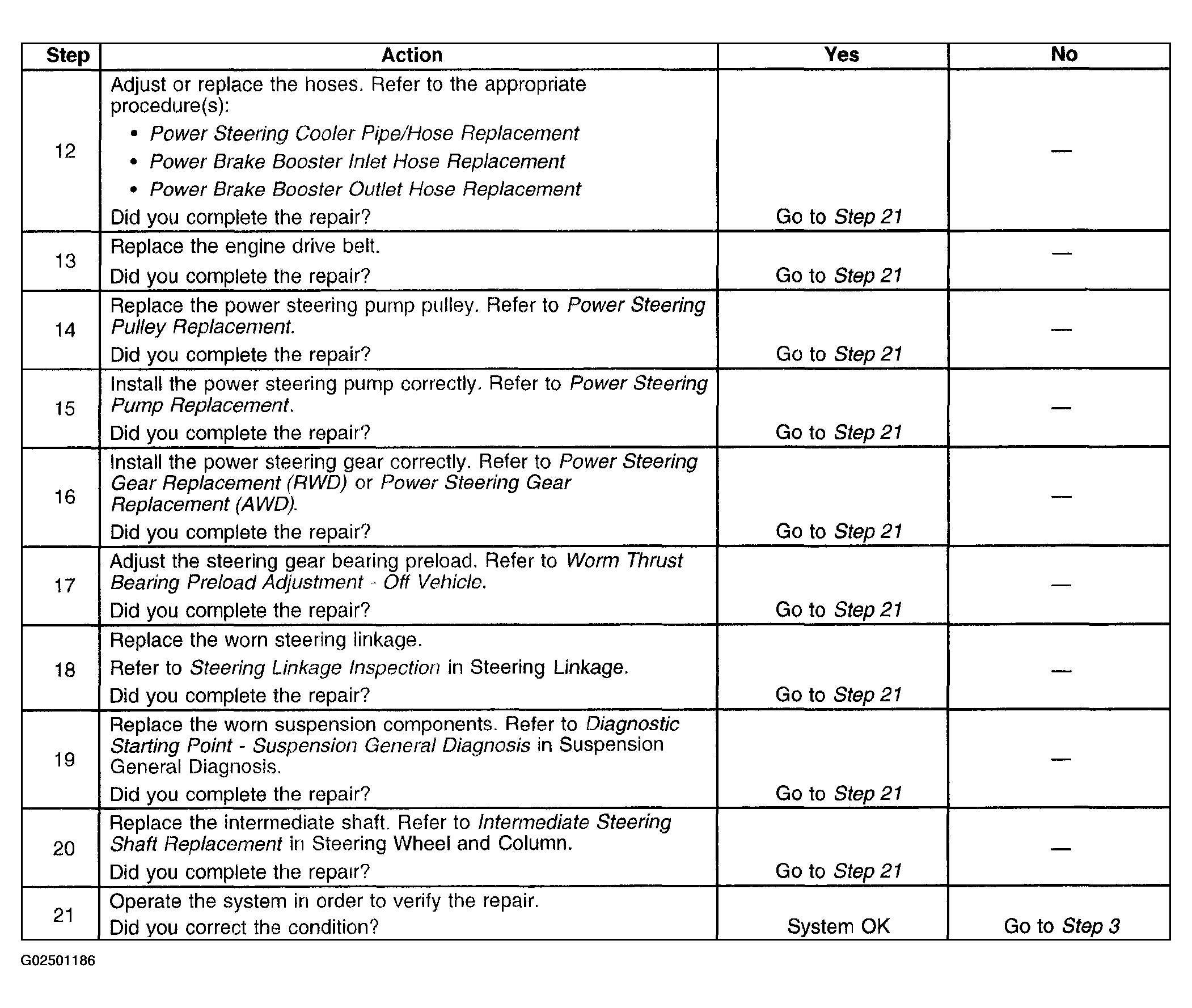

Fig 2: Identifying Rattle, Clunk Or Shudder Noise From Power Steering System Diagnosis (Steps 12-21)
