Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel tank filler door screws (2).
  2. Remove the fuel tank filler door (1) from the vehicle.
  3. Remove the gas cap tether from the fuel tank filler door.

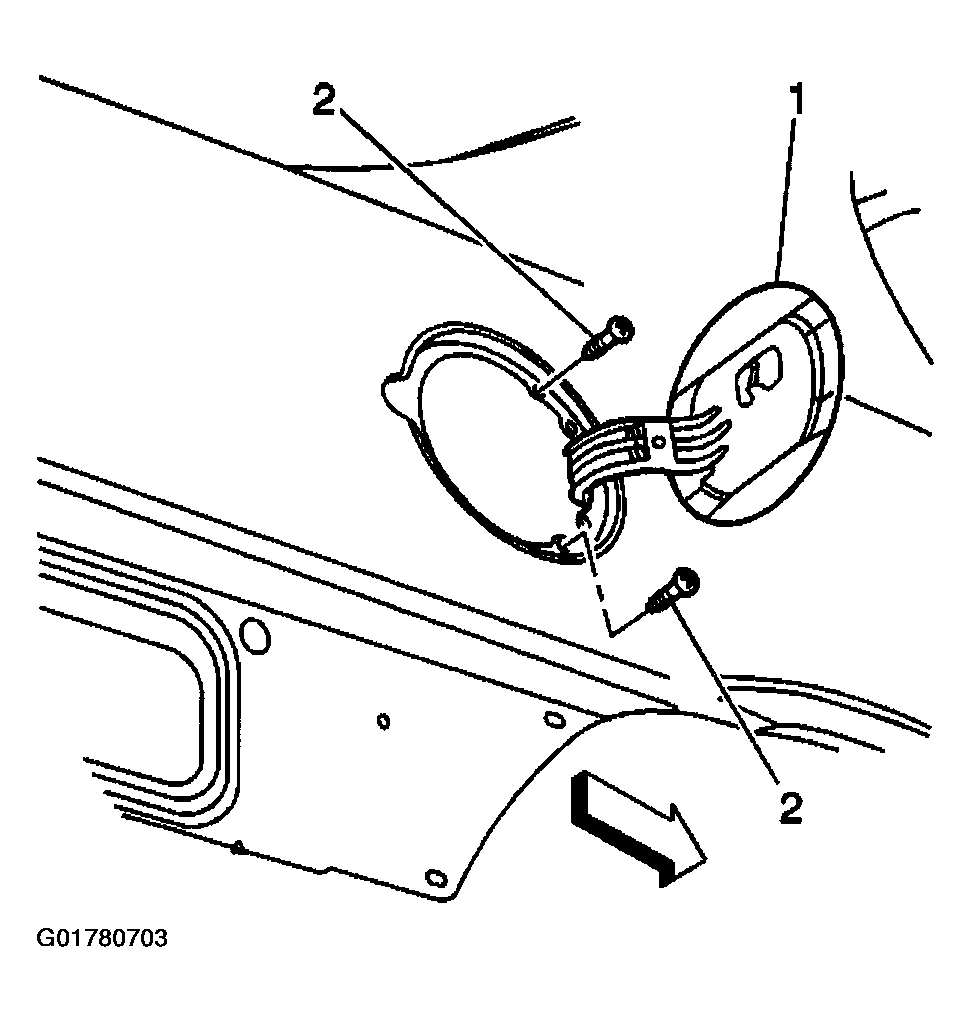

    Fig 1: Removing Fuel Filler Door
    G01780703Courtesy of GENERAL MOTORS CORP.
