Accelerator Pedal Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

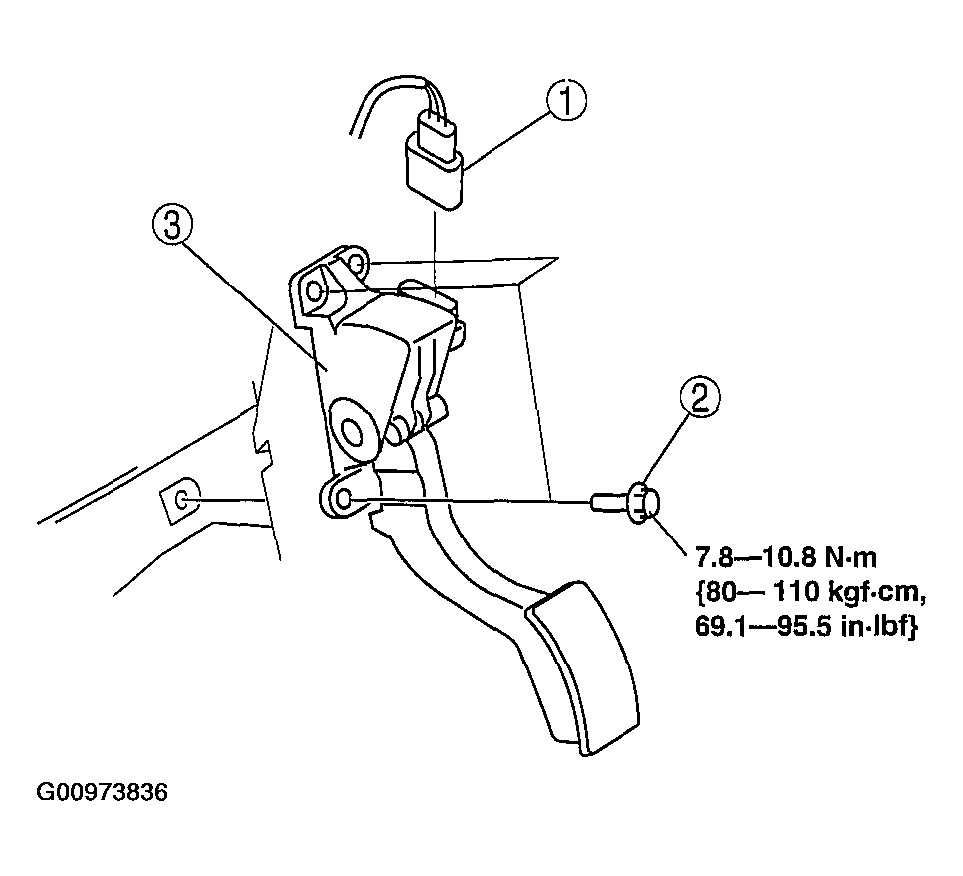

Fig 1: Accelerator Pedal With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removal Order Of Accelerator Pedal
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
