Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder block lower blind plug.
  2. Install the SST  .
  3. Turn the crankshaft clockwise until the crankshaft is in the No. 1 cylinder TDC position (until the balance weight is attached to the SST)  .

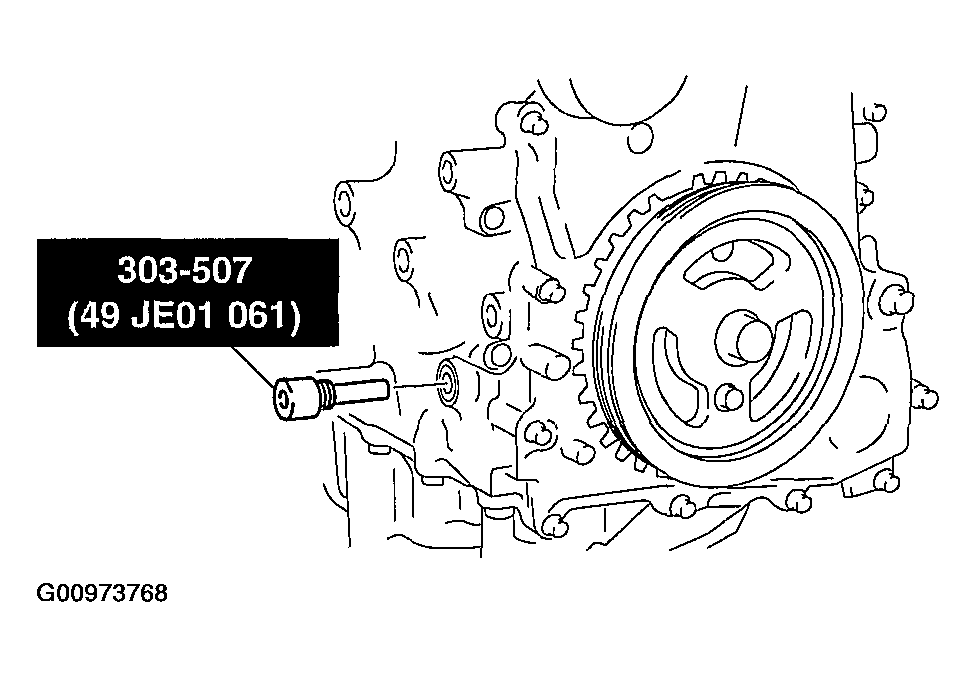

    Fig 1: Installing Special Service Tool
    G00973768Courtesy of MAZDA MOTORS CORP.
  4. Hold the crankshaft pulley using the SSTs  .

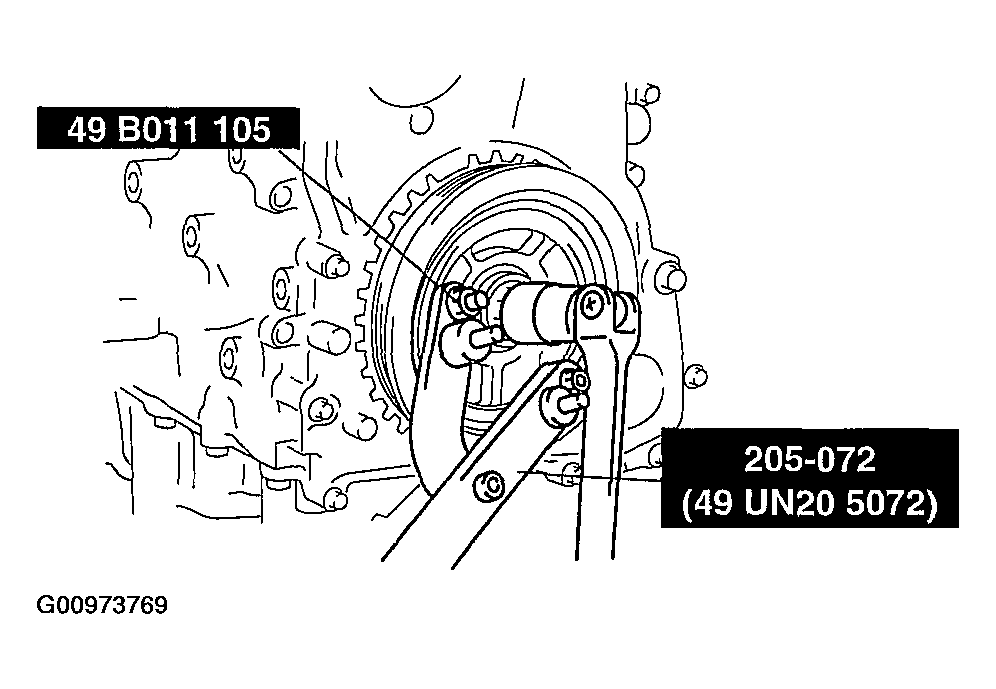

    Fig 2: Holding Crankshaft Pulley Using Special Service Tool
    G00973769Courtesy of MAZDA MOTORS CORP.
