Cylinder Head Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in 2-3 passes in the order shown in the figure.

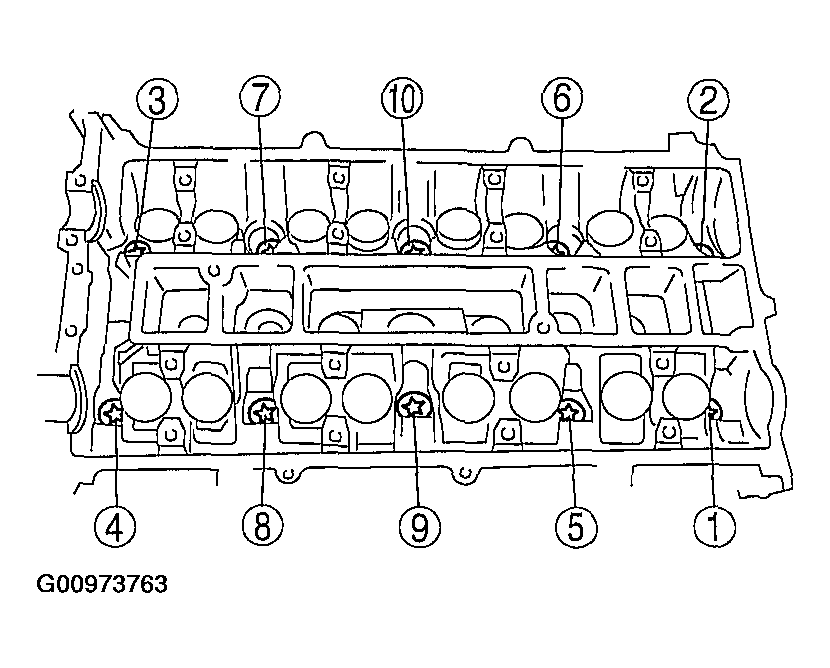

    Fig 1: Cylinder Head Bolts Loosening Sequence
    G00973763Courtesy of MAZDA MOTORS CORP.
