Camshaft Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The cylinder head and the camshaft caps are numbered to be reassembled in their original position correctly. When removed, keep the caps with the cylinder head they were removed from. Do not mix the caps.
  1. Loosen the camshaft cap bolts in 2-3 passes in the order shown in the figure.

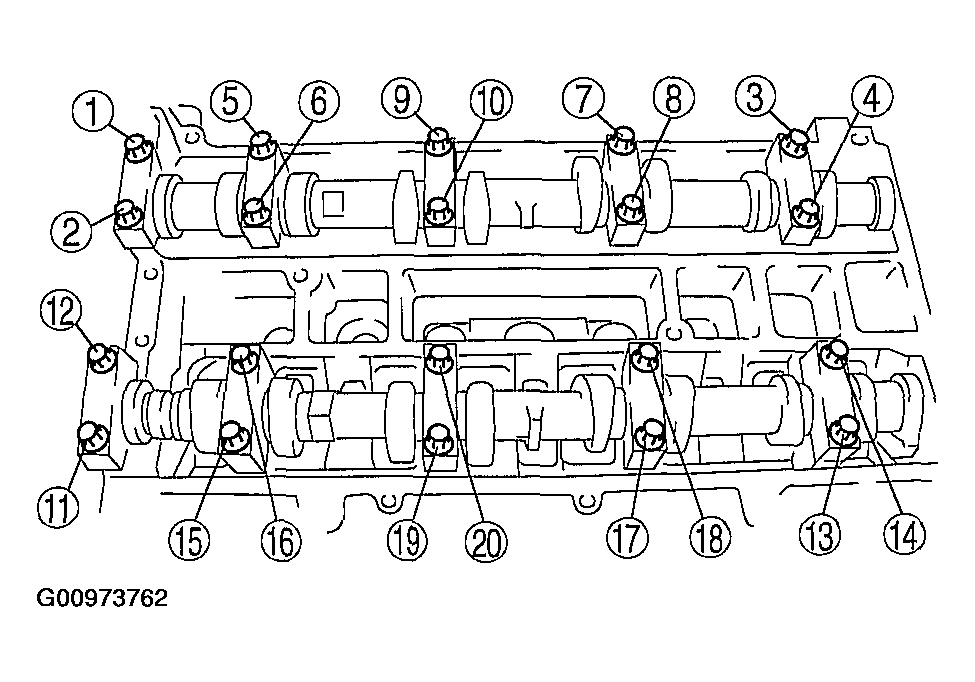

    Fig 1: Camshaft Cap Bolt Loosening Sequence
    G00973762Courtesy of MAZDA MOTORS CORP.
