Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

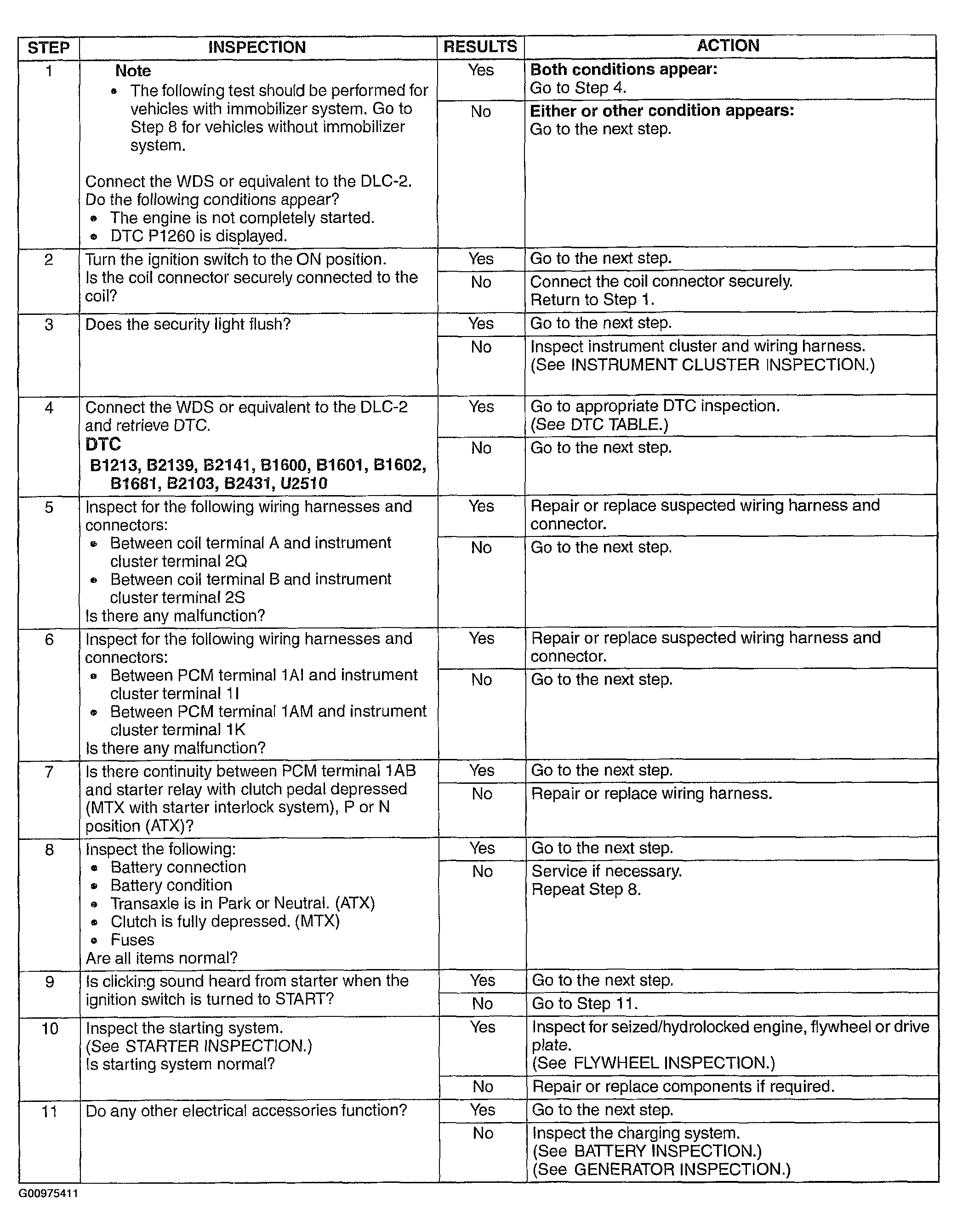

Fig 1: Symptom No. 3 Diagnostic Procedure (Steps 1-11)
G00975411Courtesy of MAZDA MOTORS CORP.

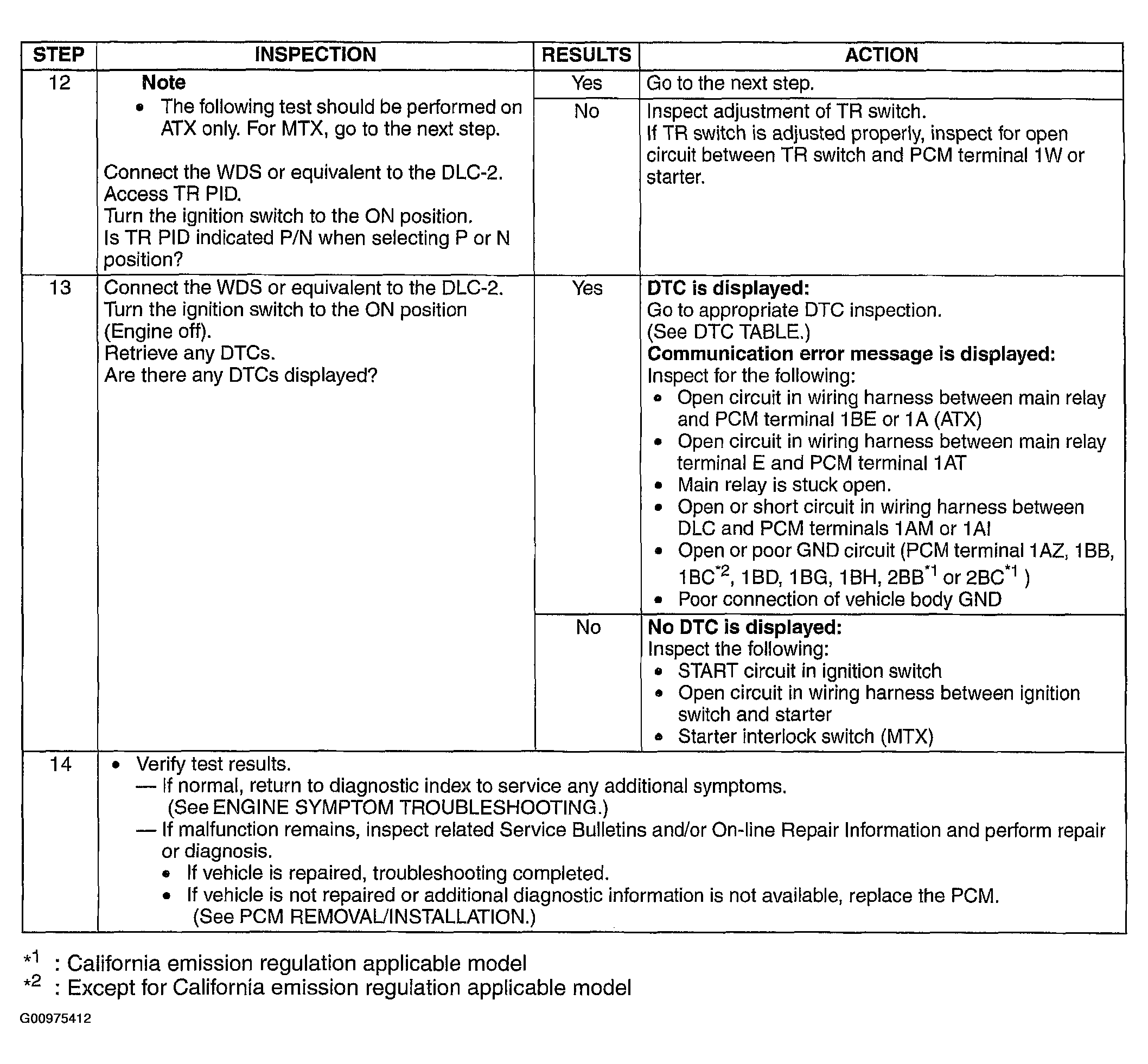

Fig 2: Symptom No. 3 Diagnostic Procedure (Steps 12-14)
G00975412Courtesy of MAZDA MOTORS CORP.
