Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

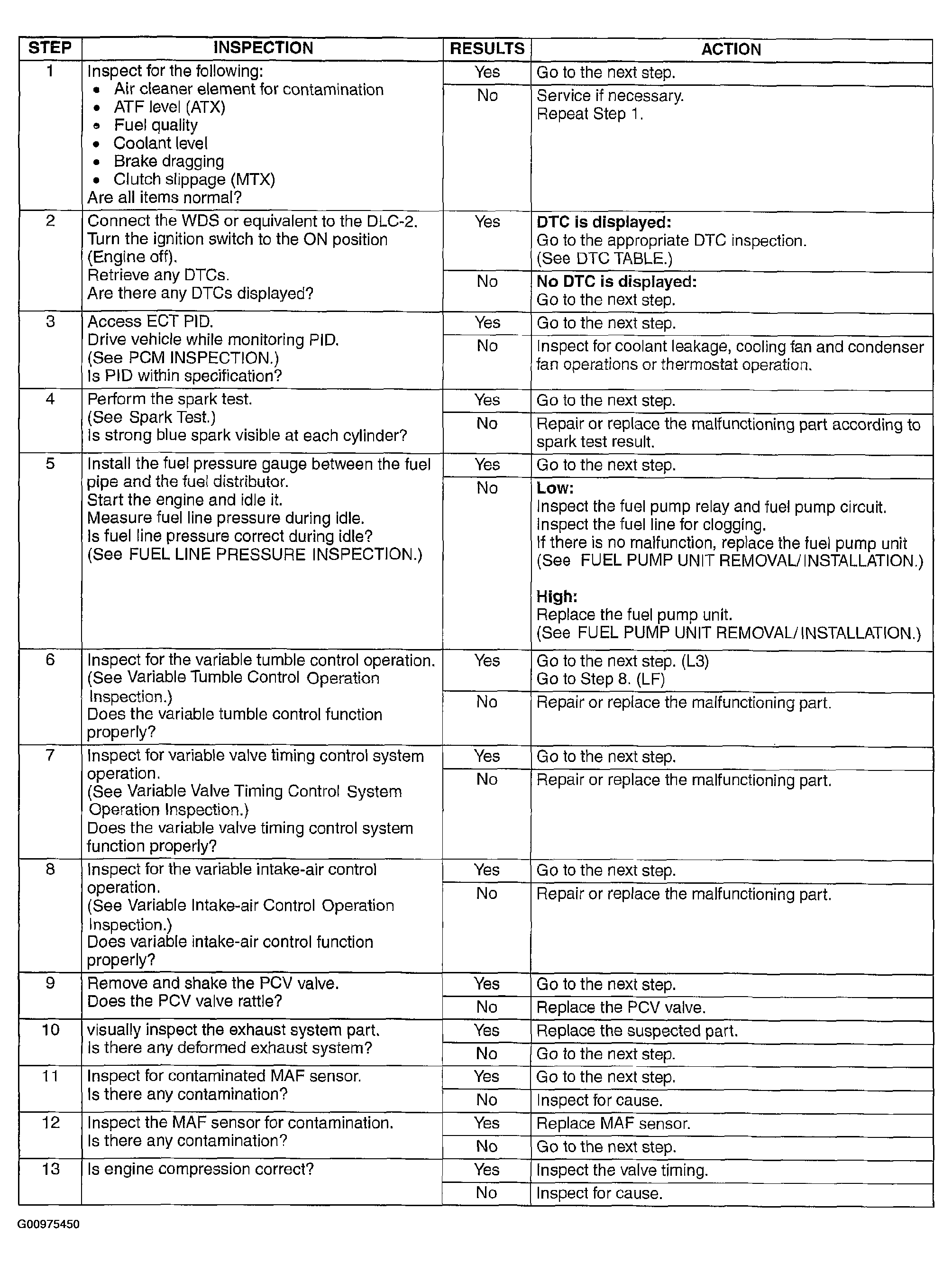

Fig 1: Symptom No. 14 Diagnostic Procedure (Step 1-13)
G00975450Courtesy of MAZDA MOTORS CORP.

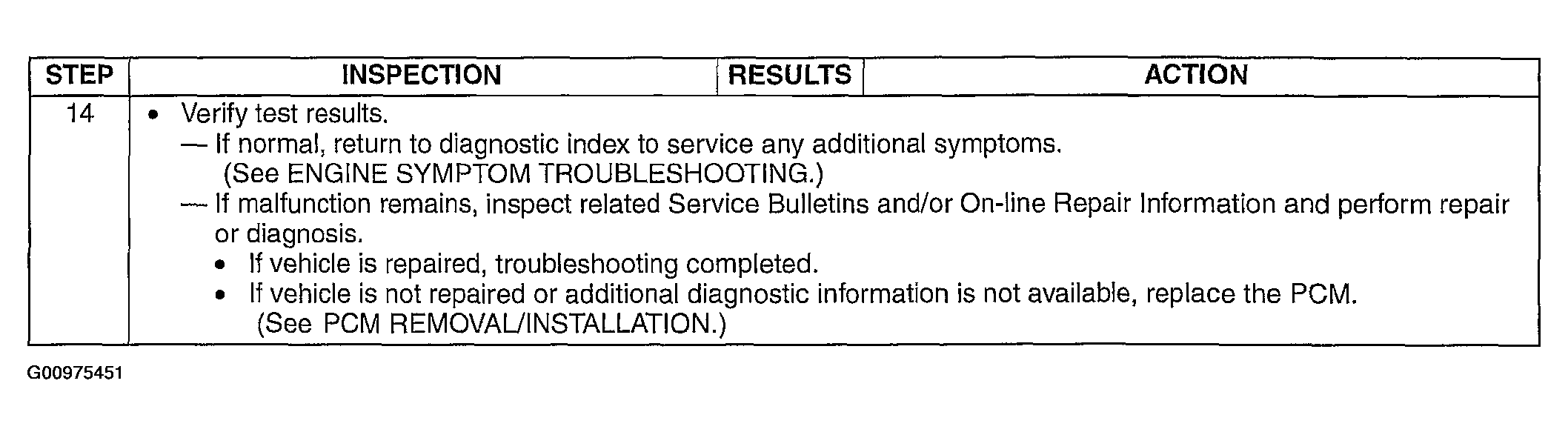

Fig 2: Symptom No. 14 Diagnostic Procedure (Step 14)
G00975451Courtesy of MAZDA MOTORS CORP.
