Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the oil fill plug.
  3. Place a suitable drain pan under the transmission in order to catch the drained transmission fluid.
  4. Remove the oil drain plug.
  5. Remove any old sealant from the transmission housing and plugs.

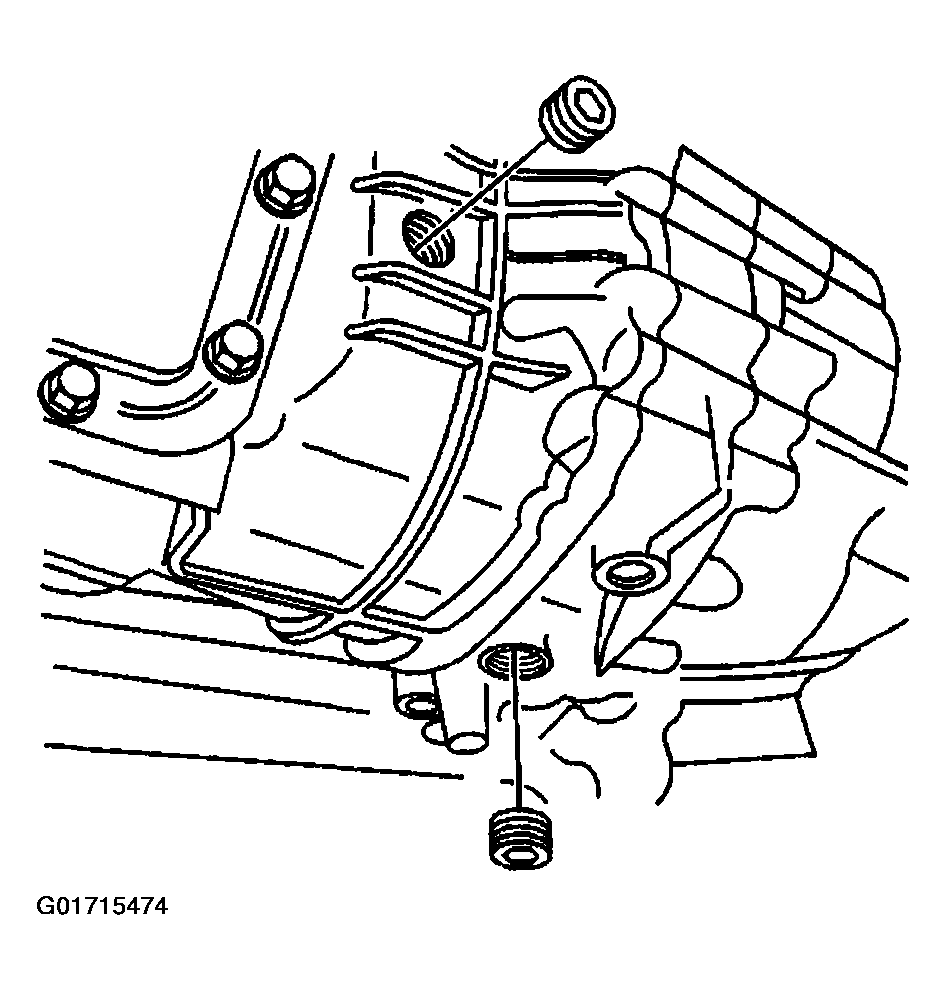

    Fig 1: Transmission Oil Drain & Fill Plugs
    G01715474Courtesy of GENERAL MOTORS CORP.
