Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Disconnect the vehicle speed sensor (VSS) electrical connector (3).

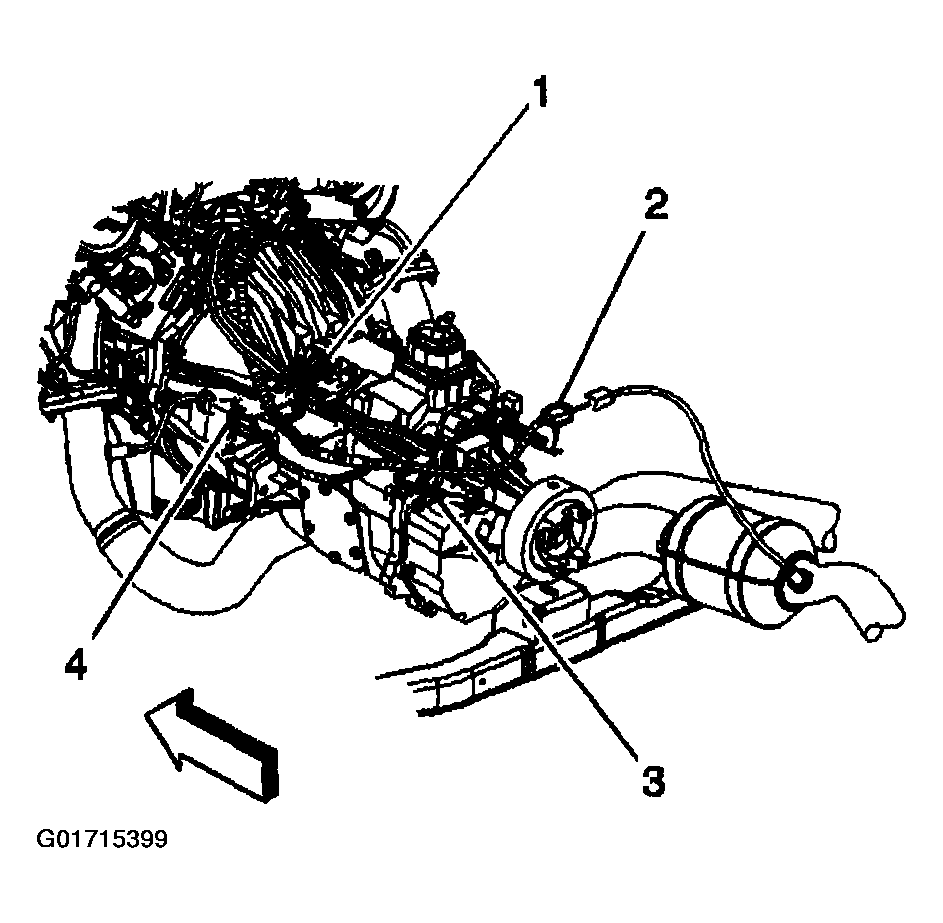

    Fig 1: VSS Electrical Connector
    G01715399Courtesy of GENERAL MOTORS CORP.
  3. Remove the VSS and seal.

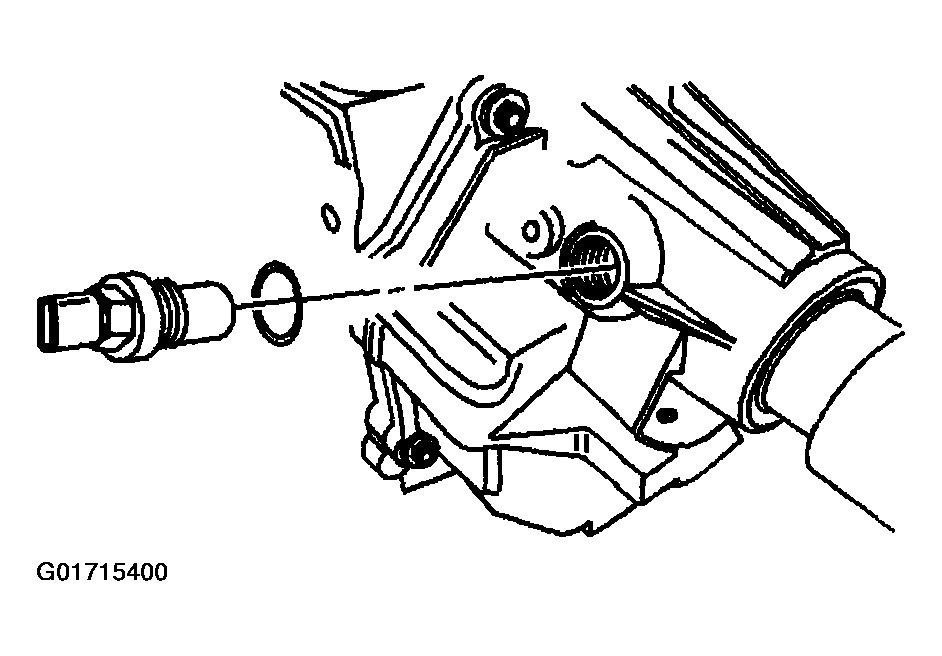

    Fig 2: VSS Assembly & Seal
    G01715400Courtesy of GENERAL MOTORS CORP.
