DTC P0704: Notes

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

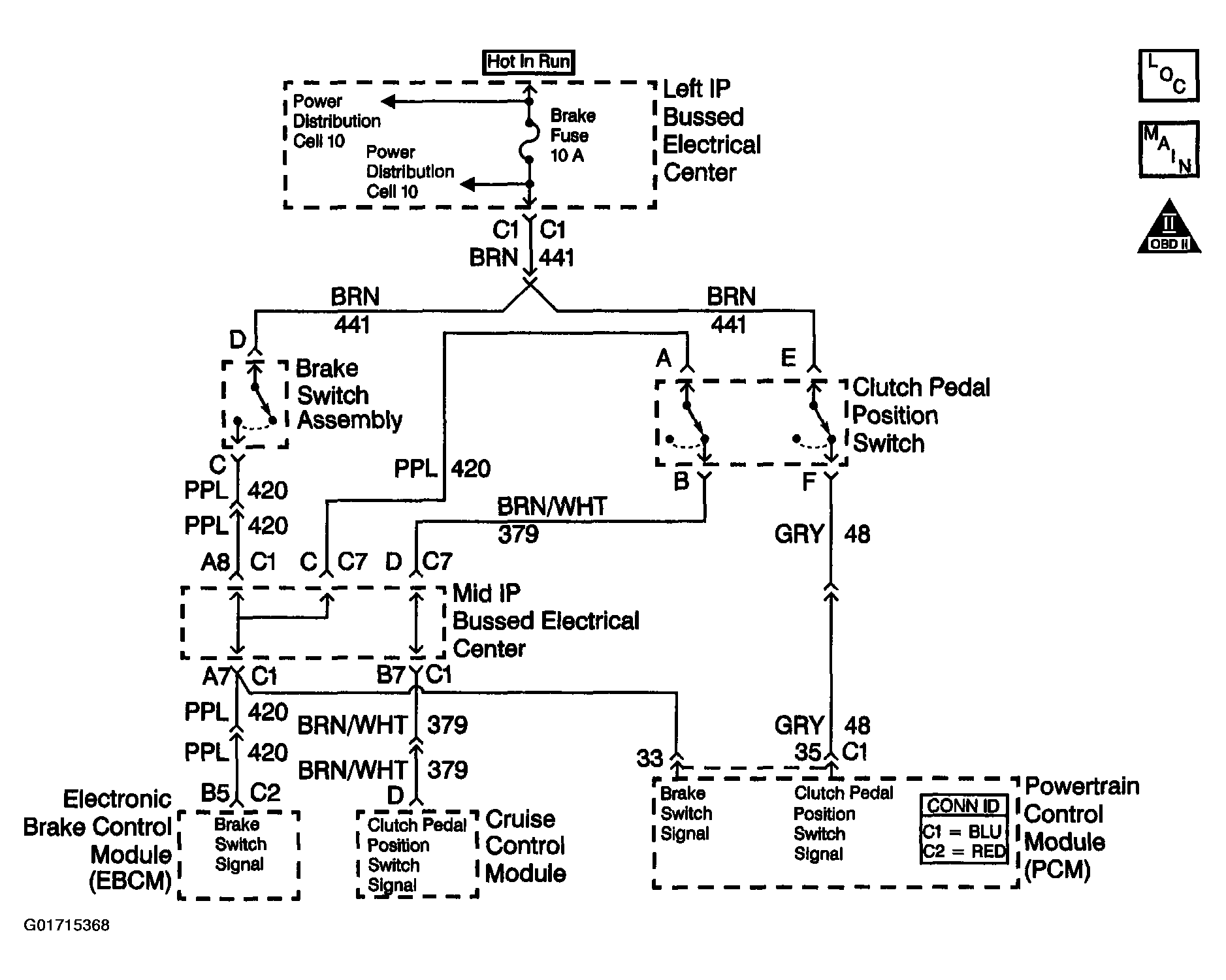

Fig 1: Clutch Pedal Position Switch Schematic
G01715368Courtesy of GENERAL MOTORS CORP.
