Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT NVG 236/246-NP8 (TWO SPEED AUTOMATIC) or TRANSFER CASE ASSEMBLY REPLACEMENT NVG 261-NP2 (TWO SPEED MANUAL) .
  2. Using J 36825 and J 23907, remove the output shaft seal.

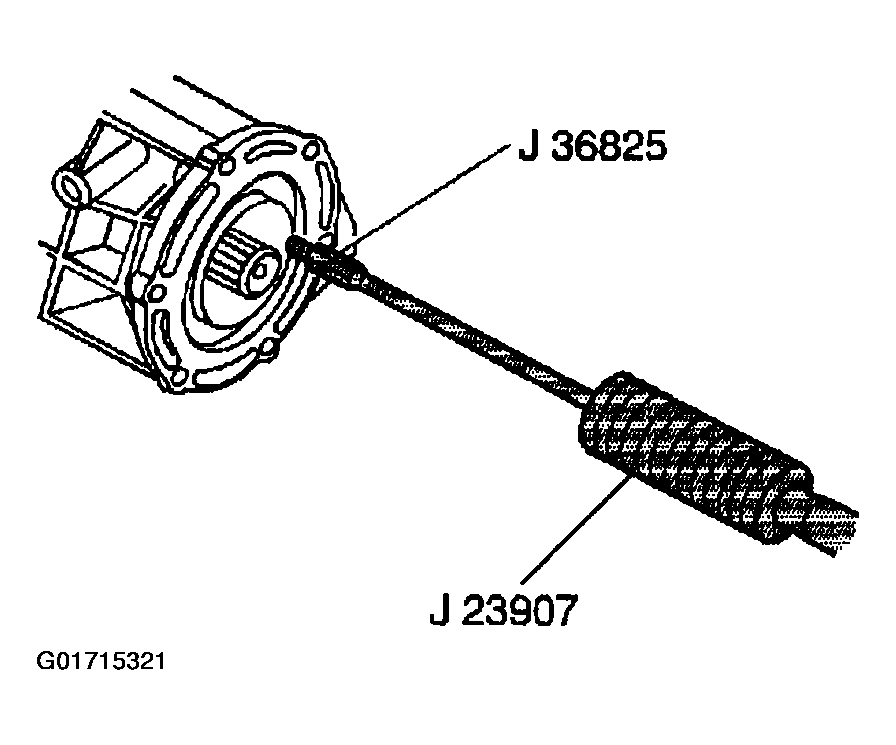

    Fig 1: Removing Output Shaft Seal
    G01715321Courtesy of GENERAL MOTORS CORP.
