Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood rear weatherstrip (1) from the pinch weld flange.

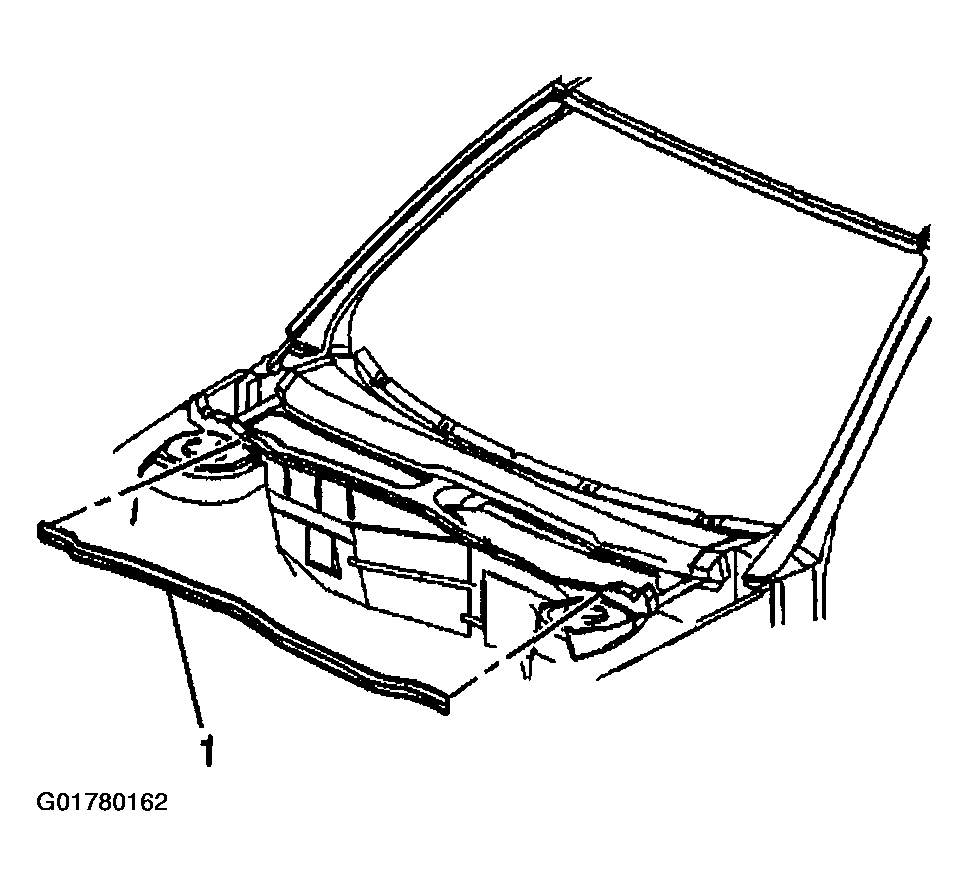

    Fig 1: Removing Hood Rear Weatherstrip
    G01780162Courtesy of GENERAL MOTORS CORP.
