Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood rear weatherstrip (1) to the pinch weld flange.

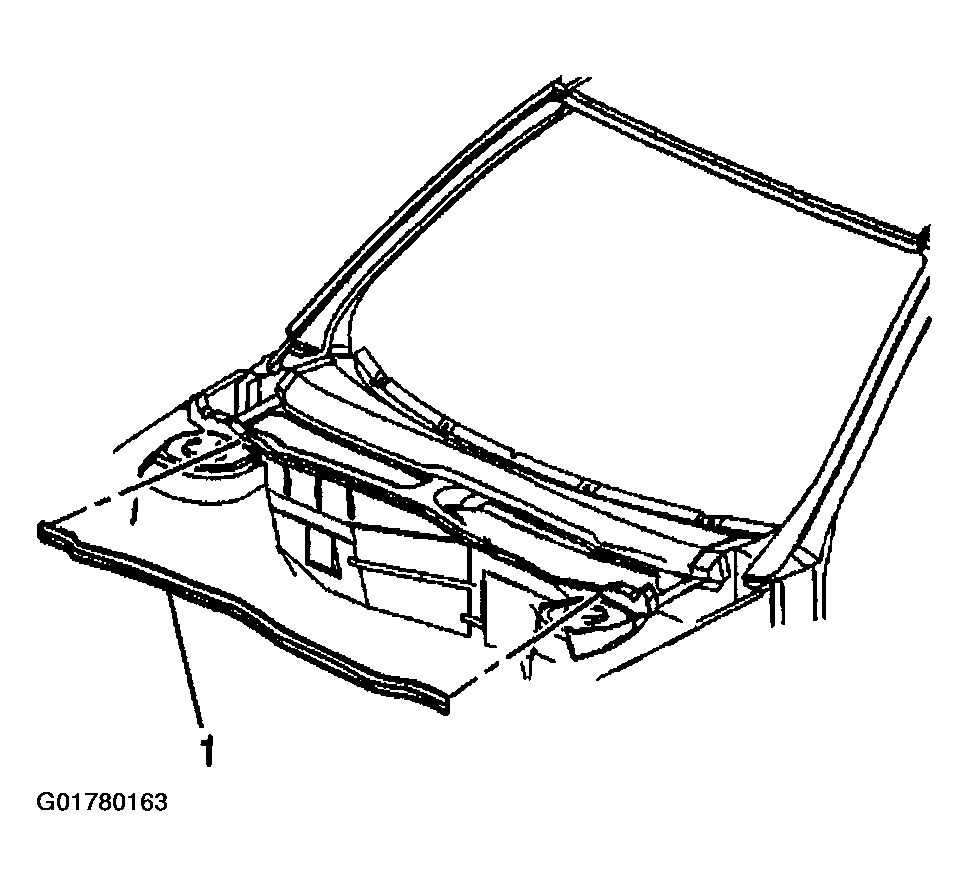

    2. Fig 1: Installing Hood Rear Weatherstrip
    G01780163Courtesy of GENERAL MOTORS CORP.
  2. Press the weatherstrip (1) to the pinch flange until fully seated.
  3. Close the hood.
