Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the wiper arm assemblies. Refer to WIPER ARM REPLACEMENT .
  3. Disconnect the washer tubing from the air inlet screen.
  4. Using J 38778  , remove the air inlet grille panel push-in retainers (1) from the panel.
  5. Remove the air inlet grille panel from the vehicle.

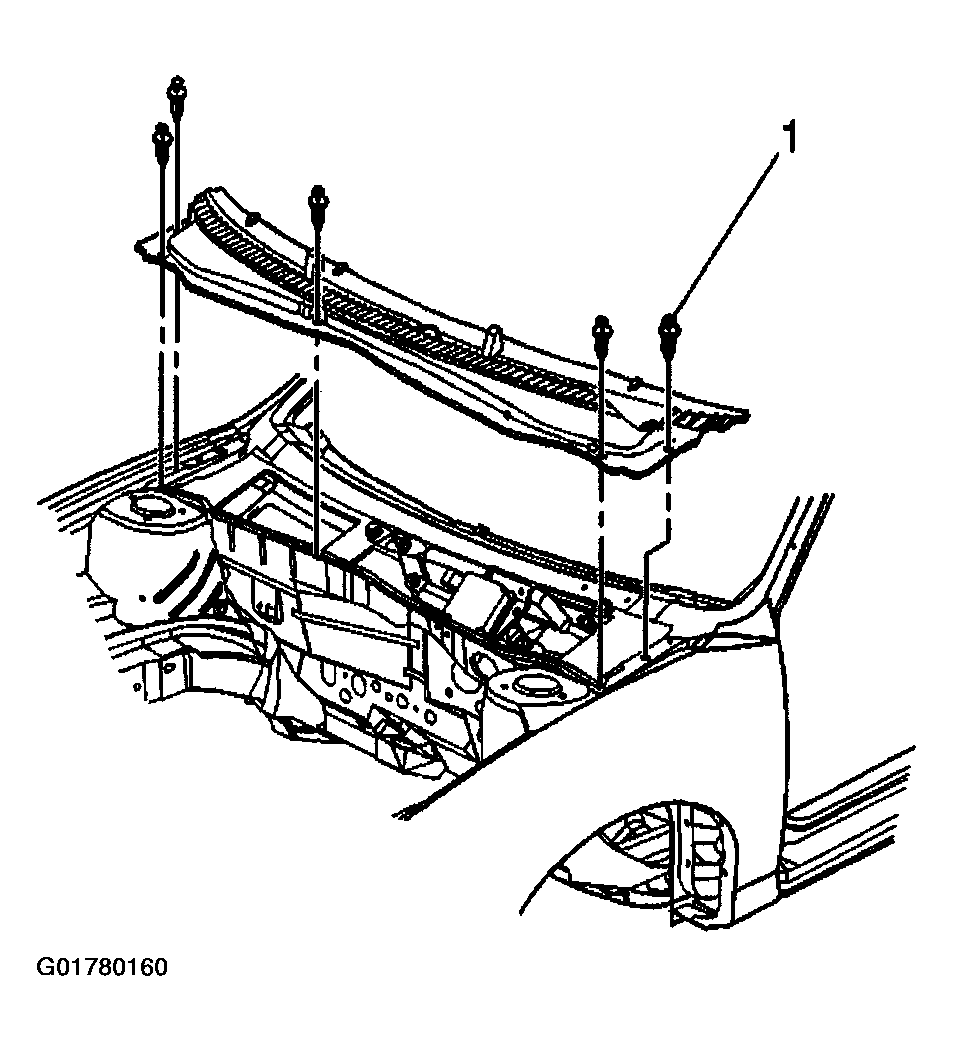

    Fig 1: Removing Air Inlet Grille Panel
    G01780160Courtesy of GENERAL MOTORS CORP.
