Oil Pan Cleaning and Inspection

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level sensor bolt.
  2. Remove the oil level sensor.

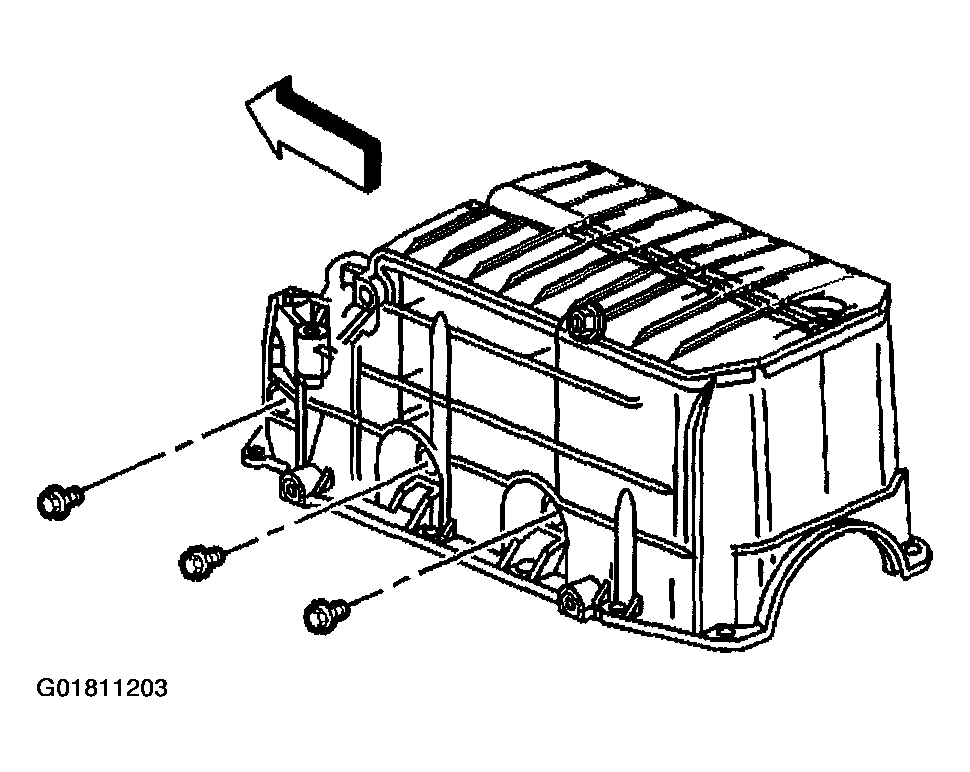

    Fig 1: Removing Oil Level Sensor
    G01811203Courtesy of GENERAL MOTORS CORP.
    WARNING: Bodily injury may occur if the cleaning solvent is inhaled or exposed to the skin.
  3. Clean the oil pan in solvent. Remove all sludge and debris from the bottom of the oil pan.
  4. Inspect the oil pan sealing surfaces for damage. Replace the oil pan if necessary.
  5. Install the oil level sensor.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the oil level sensor bolt.

    Tighten

    Tighten the oil level sensor bolt to 10 N.m (89 lb in).
