Tools Required

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

J 33049 Camshaft Bearing Remover/Installer

Select the expander assembly and driving washer.
Assemble the J 33049.

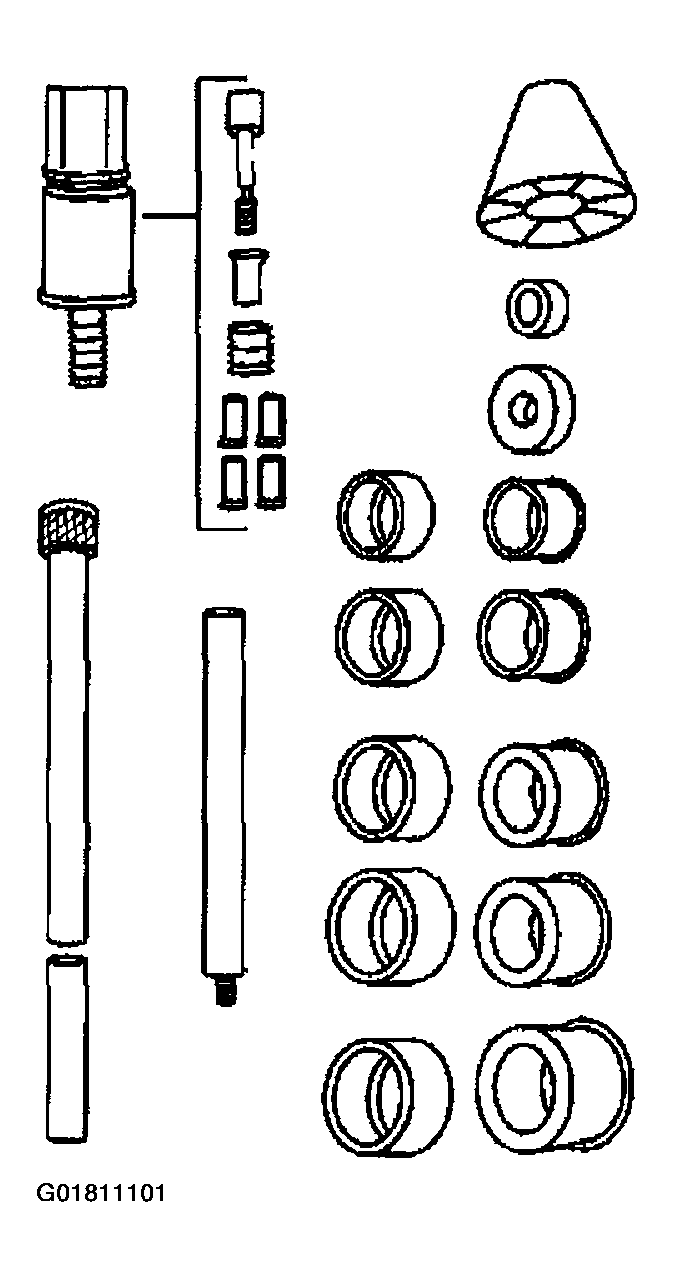

Fig 1: Identifying J 33049
Courtesy of GENERAL MOTORS CORP.

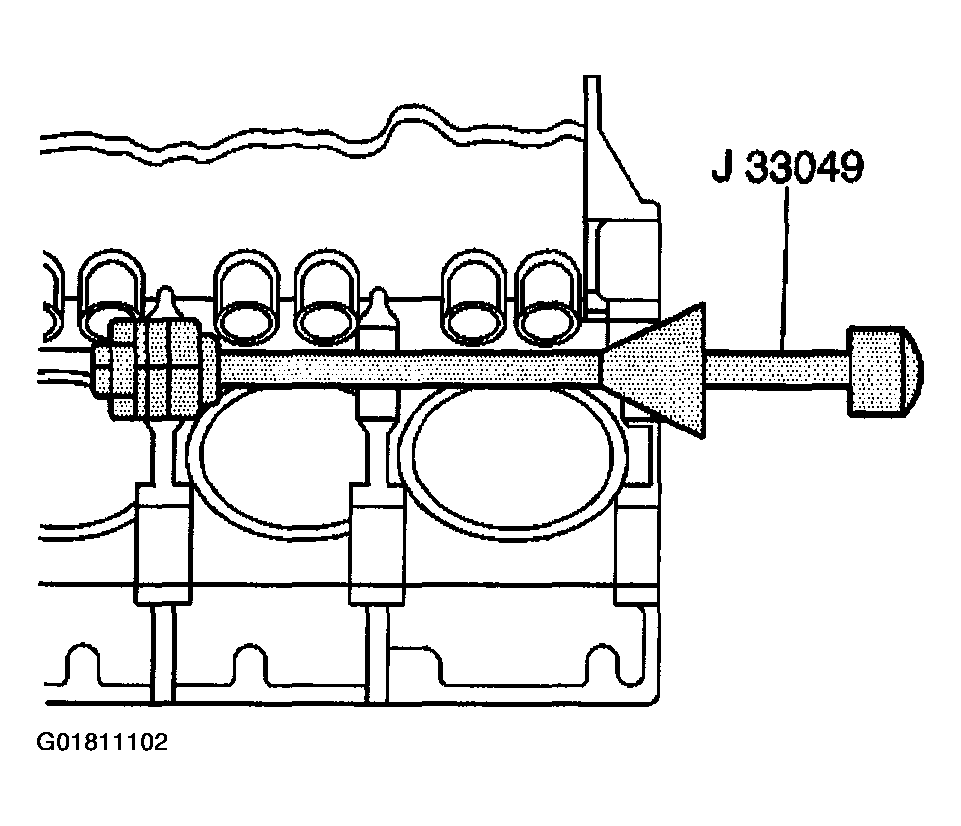

Drive out the camshaft bearings. Use the J 33049.

Fig 2: Driving Out Camshaft Bearings

Courtesy of GENERAL MOTORS CORP.
