Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator tube bolt.
  2. Remove the oil level indicator tube from the engine.

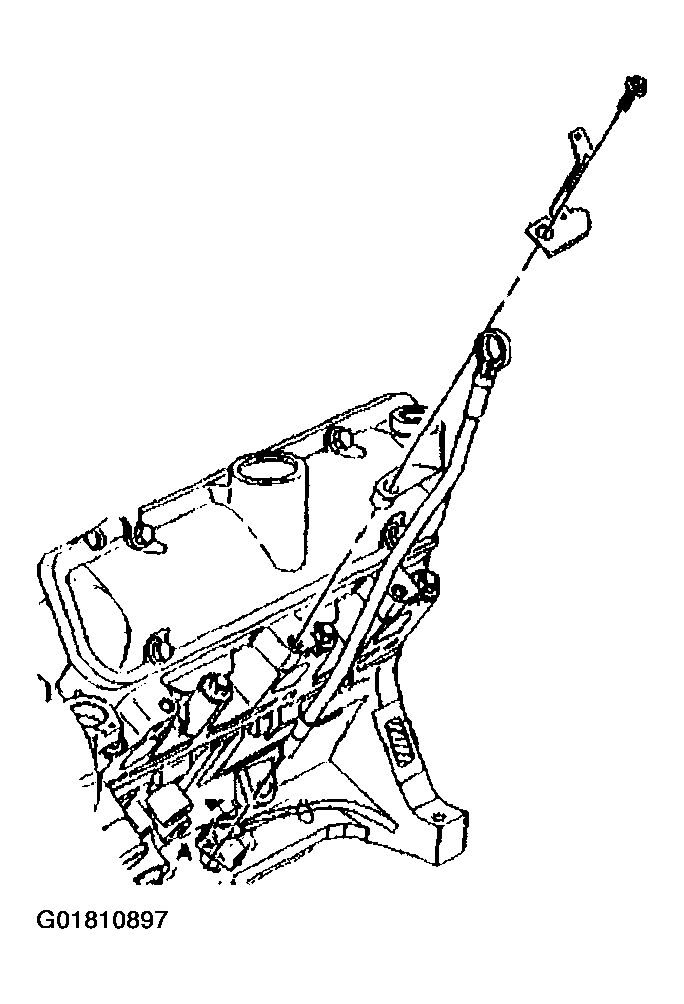

    Fig 1: Removing Oil Level Indicator & Tube
    G01810897Courtesy of GENERAL MOTORS CORP.
