Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to TRANSAXLE in Automatic Transaxle 4T40-E/4T45-E.
  2. Remove the flywheel attaching bolts. Use a suitable tool in order to prevent crankshaft rotation.
  3. Remove the flywheel spacer.
  4. Remove the flywheel.
  5. Clean the flywheel bolt threads and the bolt holes.

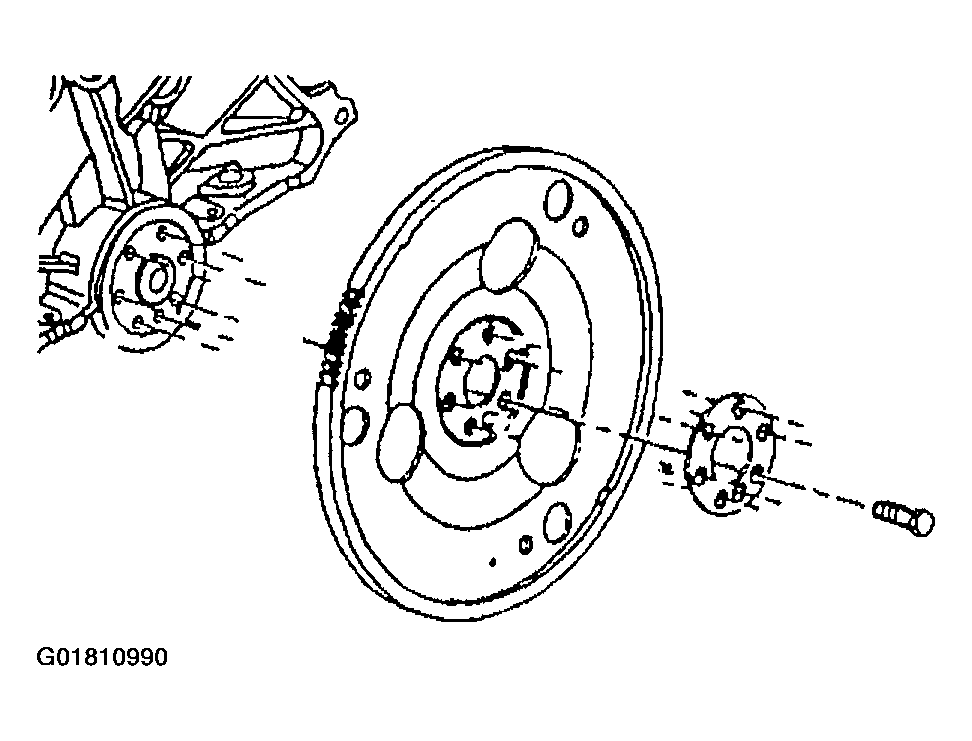

    Fig 1: Removing Engine Flywheel
    G01810990Courtesy of GENERAL MOTORS CORP.
