Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the drive belt tensioner using the J 39914  .
  2. Remove the drive belt from the generator pulley.

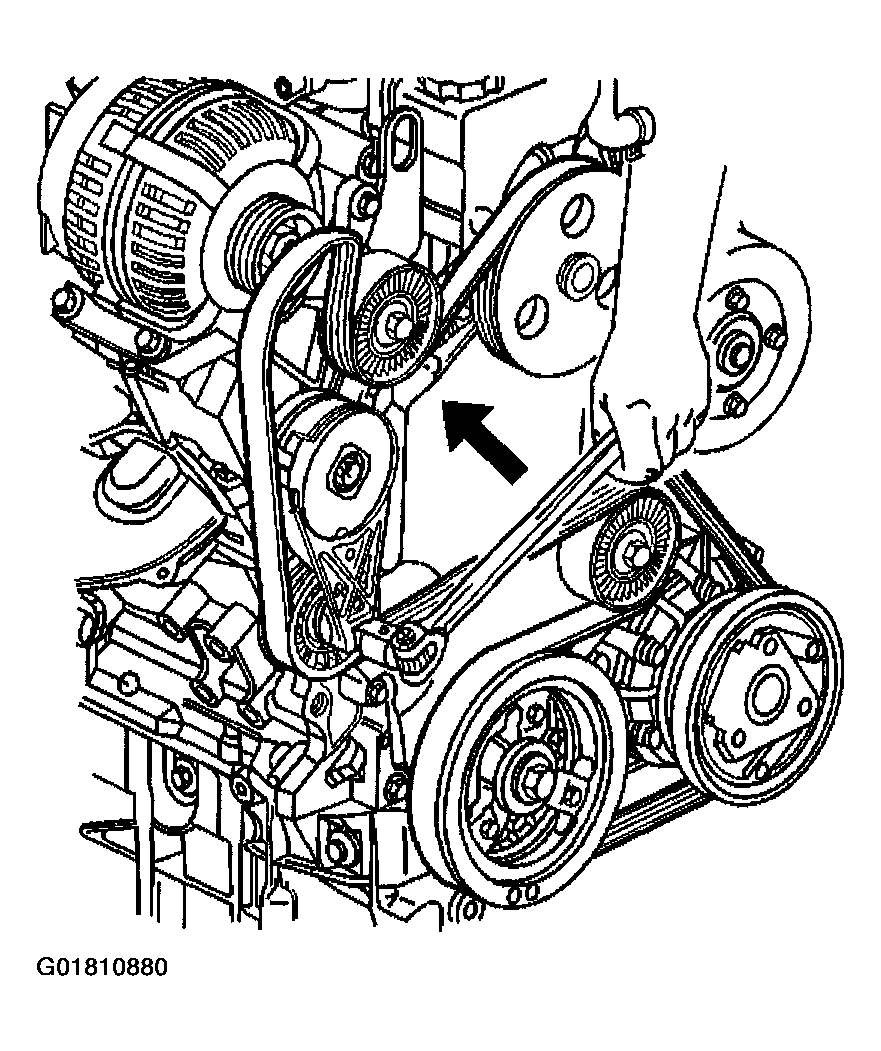

    Fig 1: Removing Drive Belt
    G01810880Courtesy of GENERAL MOTORS CORP.
  3. Remove the tensioner bolt.
  4. Remove the tensioner.

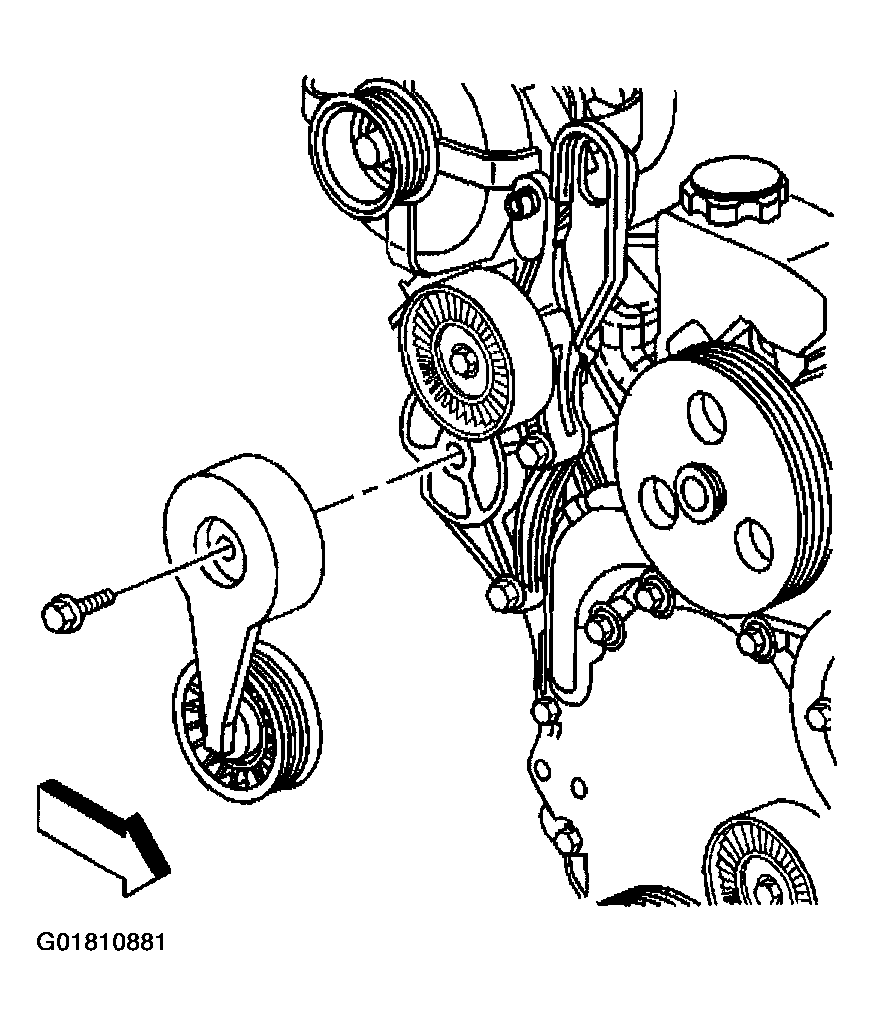

    Fig 2: Removing Drive Belt Tensioner
    G01810881Courtesy of GENERAL MOTORS CORP.
