Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition switch trim cover. Pry off with a small flat-bladed tool.

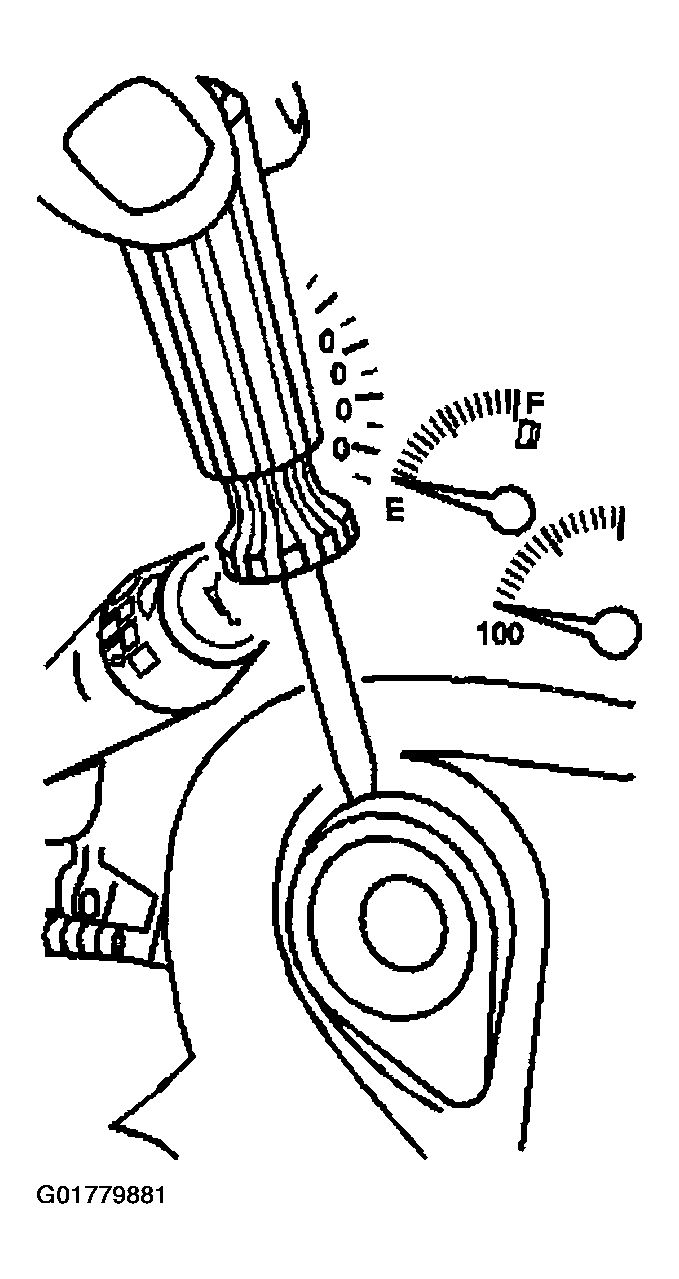

    Fig 1: Removing Ignition Switch Trim Cover
    G01779881Courtesy of GENERAL MOTORS CORP.
  2. Gently pry the accessory trim plate with small flat-bladed tool in order to disengage the retainers from the IP carrier.
  3. Remove the accessory trim plate from the from the IP carrier.

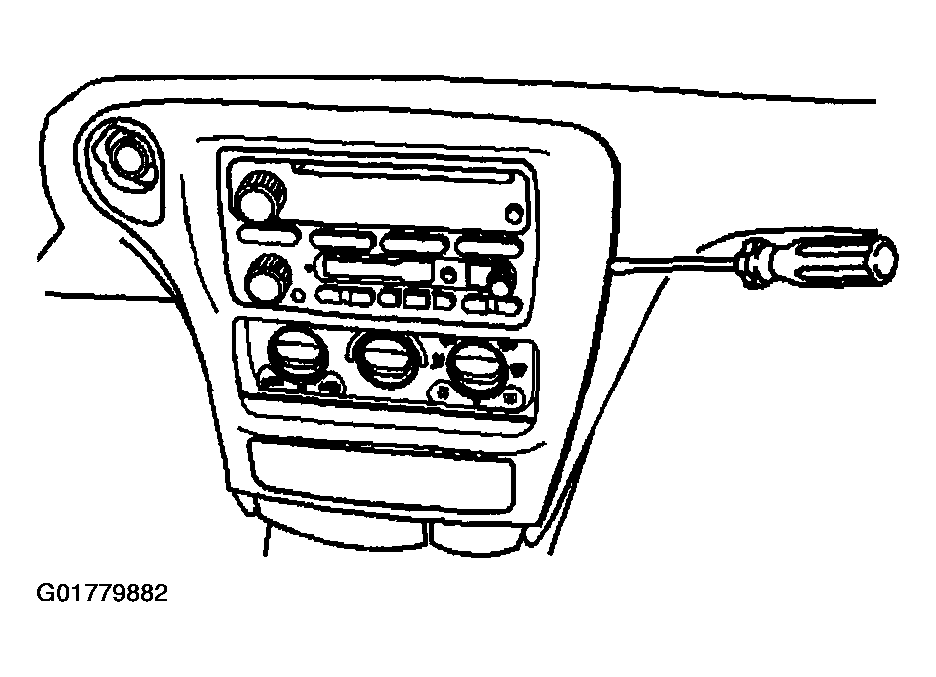

    4. Fig 2: Removing Accessory Trim Plate
    G01779882Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the cigar lighter electrical connector from the cigar lighter.
  5. Remove the cigar lighter from the accessory trim plate if required. Refer to Cigar Lighter Replacement .
