Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the screws from the lower steering column trim cover.
  3. Remove the upper steering column trim cover from the steering column.

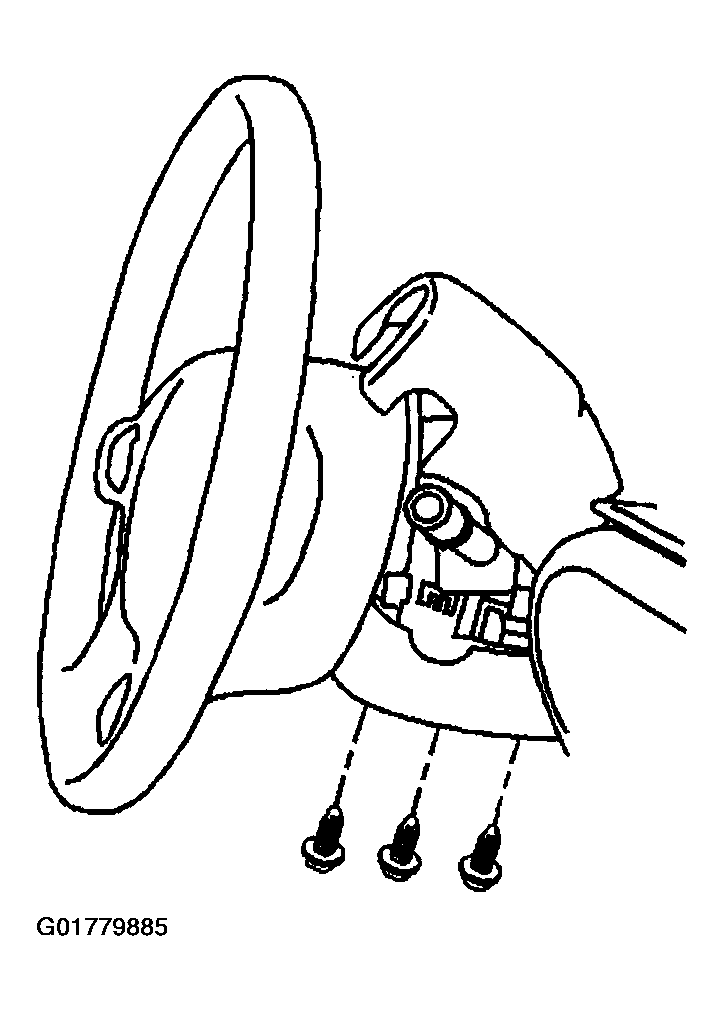

    Fig 1: Removing Upper steering Column Trim Cover
    G01779885Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws from the instrument panel cluster trim plate.
    Fig 2: Removing Instrument Panel Cluster Trim Plate Screws
    G01779886Courtesy of GENERAL MOTORS CORP.
  5. Gently pry out the instrument panel cluster trim plate form the IP carrier with a small flat-bladed tool.
  6. Remove the instrument panel cluster trim plate from the IP carrier.
  7. Disconnect the electrical connector from the IP dimmer switch.
  8. Disconnect the electrical connector from the hazard warning switch.

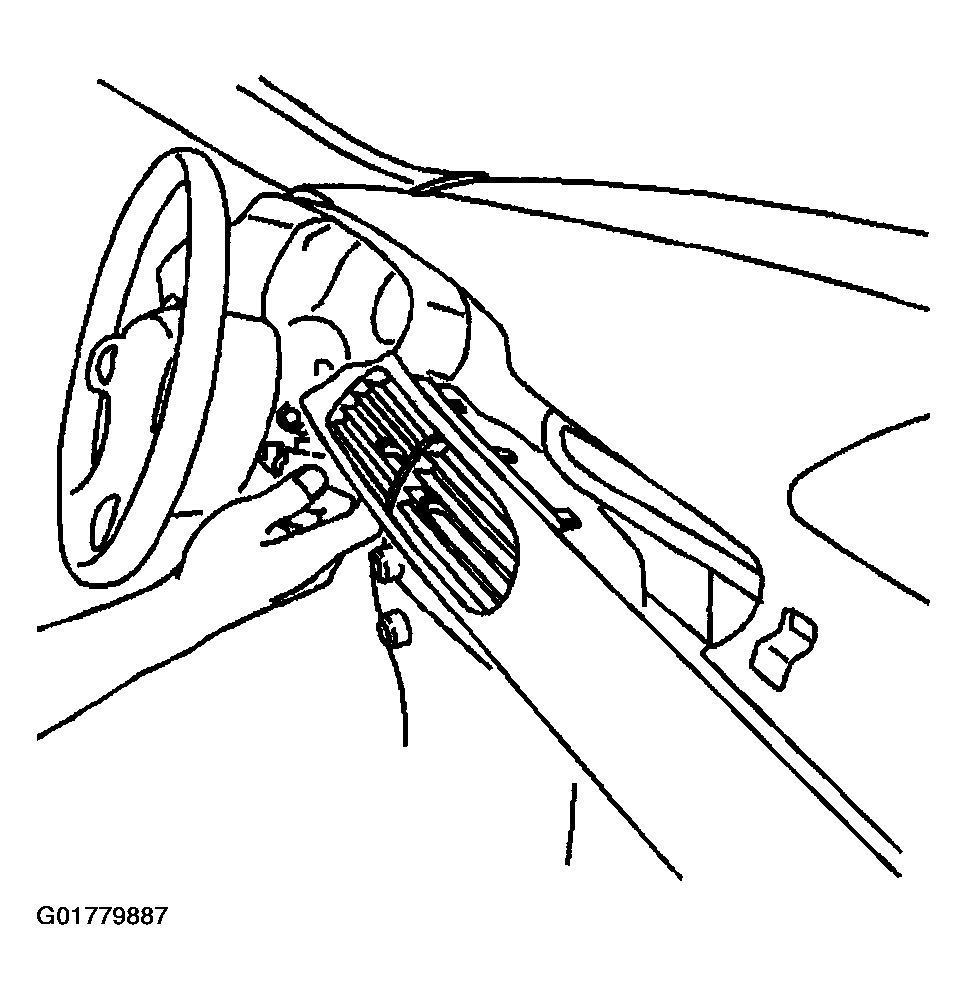

    Fig 3: Removing Instrument Panel Cluster Trim Plate
    G01779887Courtesy of GENERAL MOTORS CORP.
