Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull outward on the outer trim cover (1, 3) in the fingerpull area.
  2. Remove the outer trim cover (1, 3) from the IP carrier (2).

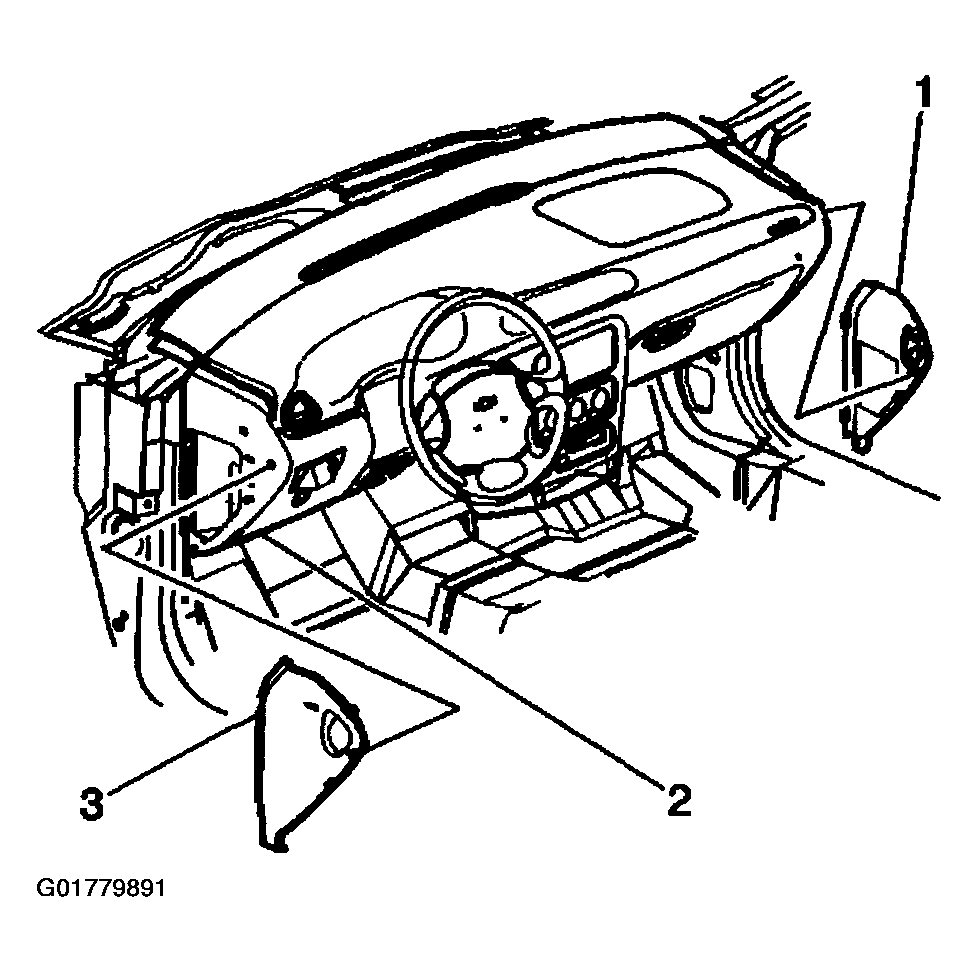

    Fig 1: Removing Instrument Panel Outer Trim Cover
    G01779891Courtesy of GENERAL MOTORS CORP.
