Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the tabs on the outer trim cover (1, 3) to the retaining clips in the IP carrier.
  2. Gently press the outer trim cover (1, 3) into the IP carrier (2).

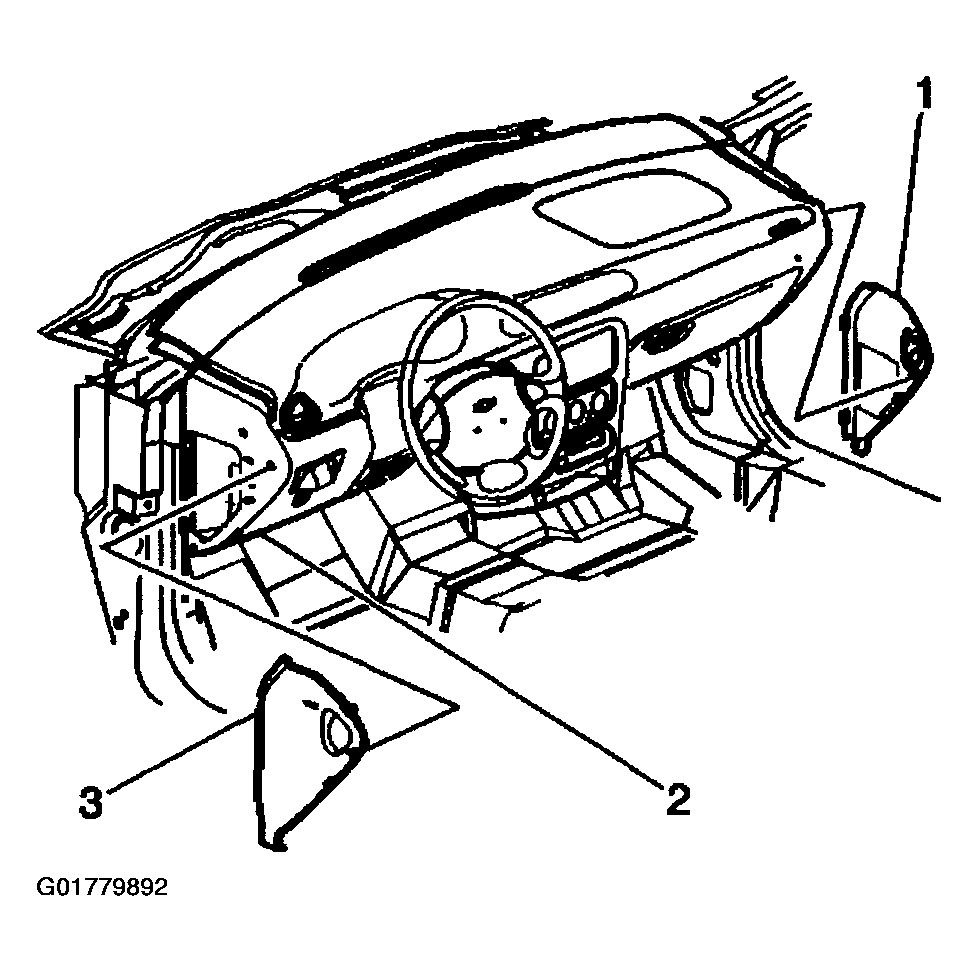

    Fig 1: Installing Instrument Panel Outer Trim Cover
    G01779892Courtesy of GENERAL MOTORS CORP.
