Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cigar lighter fuse.
  2. Remove the cigar lighter element (2).
  3. Remove the cigar lighter housing (4) by placing one side of the "T" portion of the tool (3) J 42059  into the tab opening inside the lighter housing (4).

    Angle the other side of the tool (3) into the other tab opening inside the lighter housing (4)

    Remove the lighter housing (4) by pulling the tool rearward from the IP trim plate (1).

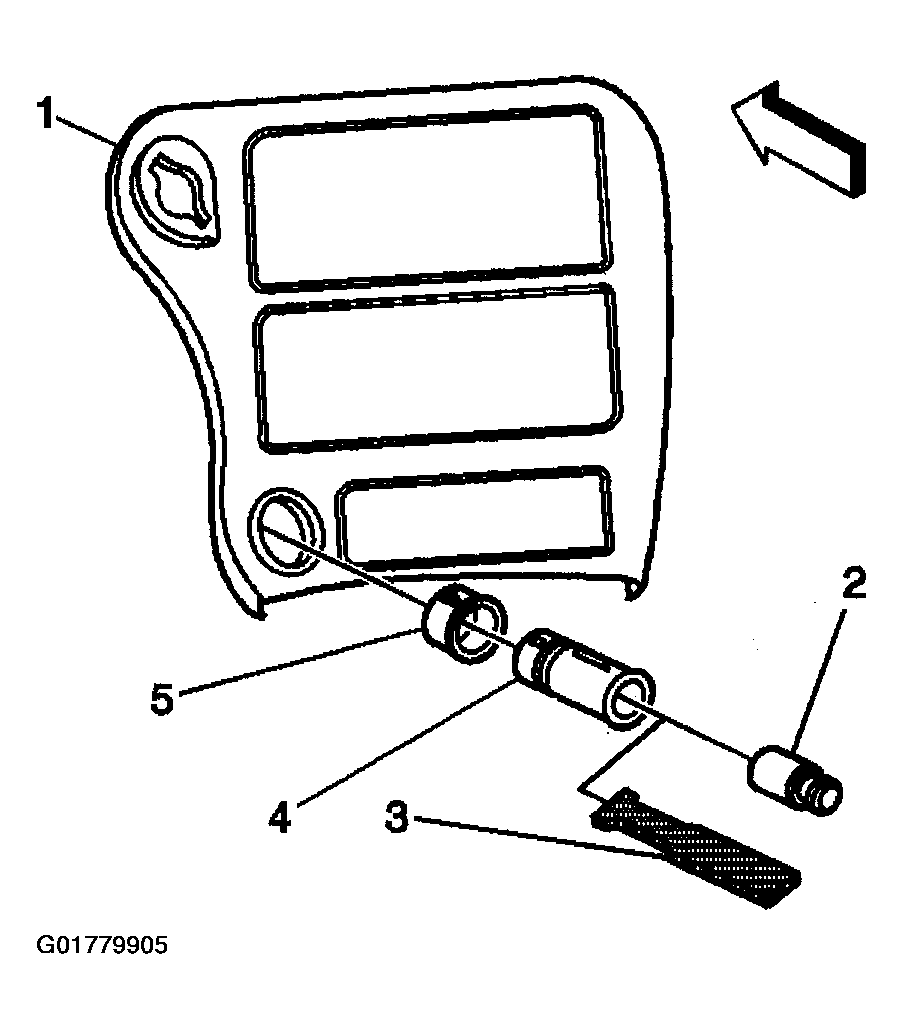

    Fig 1: Removing Cigar Lighter
    G01779905Courtesy of GENERAL MOTORS CORP.
  4. Remove the tool from the lighter housing (4).
  5. Disconnect the electrical connector from the lighter housing (4).
  6. Remove the lighter retainer (5) using your index finger and pulling out.
