Engine Oil Pressure Indicator Always On

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

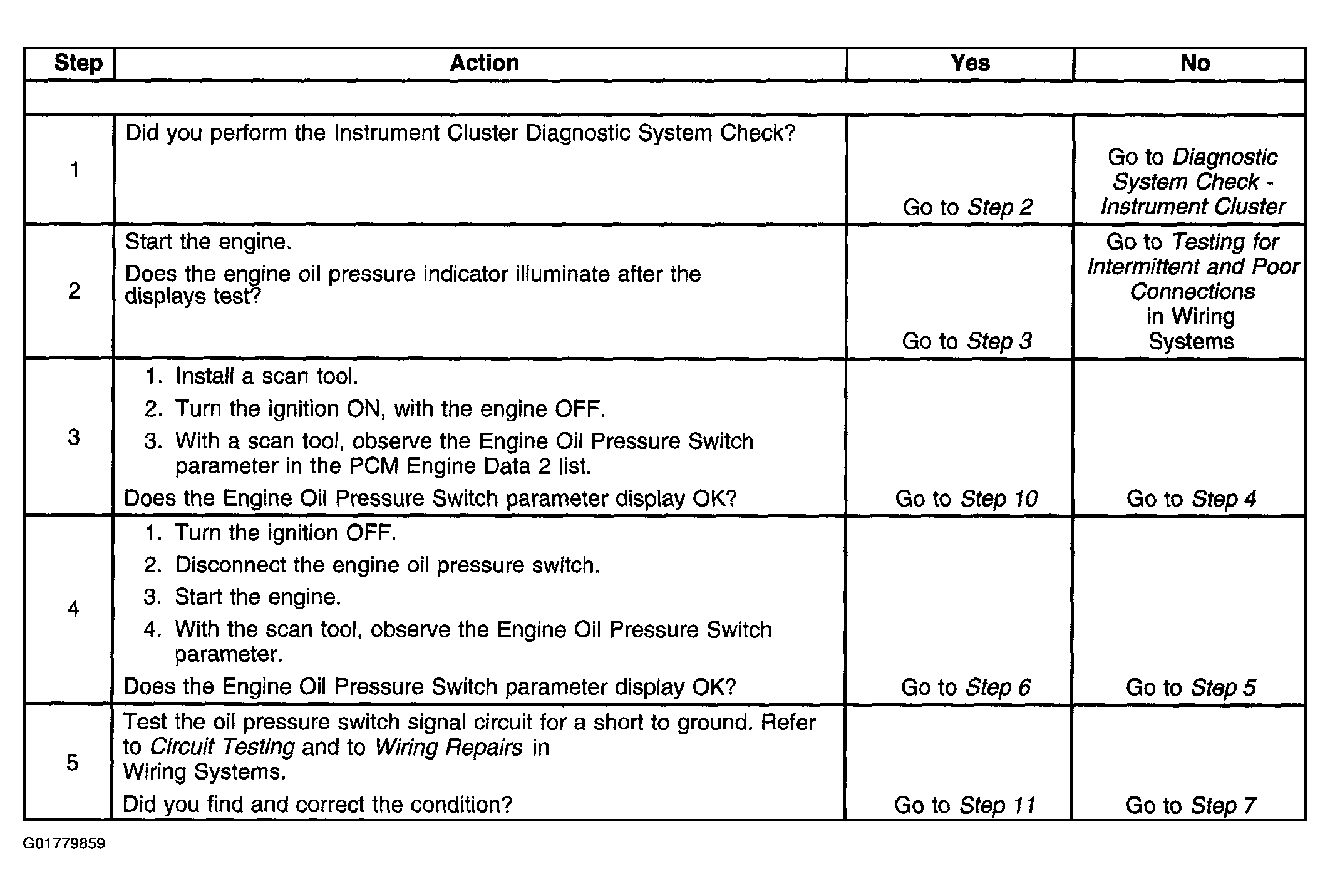

Fig 1: Engine Oil Pressure Indicator Always On (1 Of 2)
G01779859Courtesy of GENERAL MOTORS CORP.

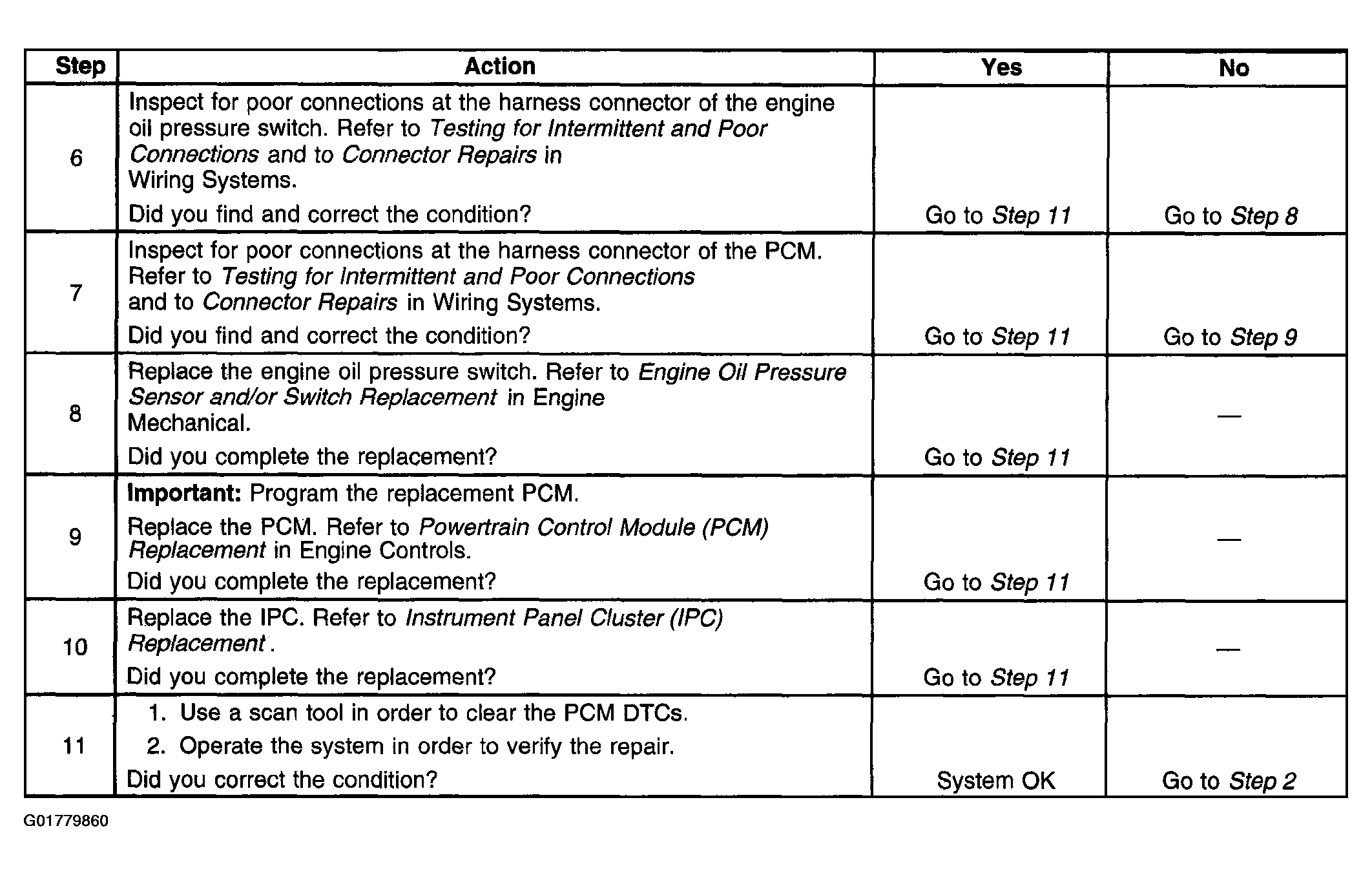

Fig 2: Engine Oil Pressure Indicator Always On (2 Of 2)
G01779860Courtesy of GENERAL MOTORS CORP.
