Test Description

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3.  Tests for the proper operation of the circuit in the low voltage range. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.

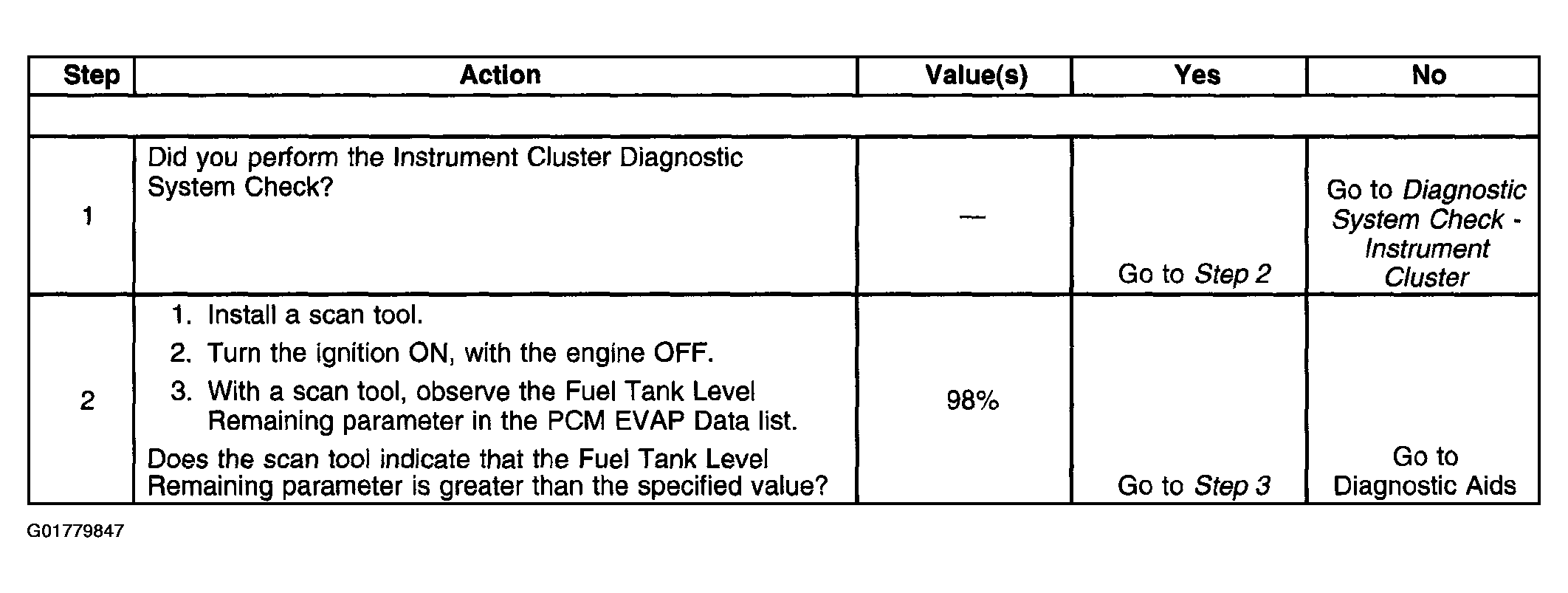

Fig 1: DTC P0463 (1 Of 2)
G01779847Courtesy of GENERAL MOTORS CORP.

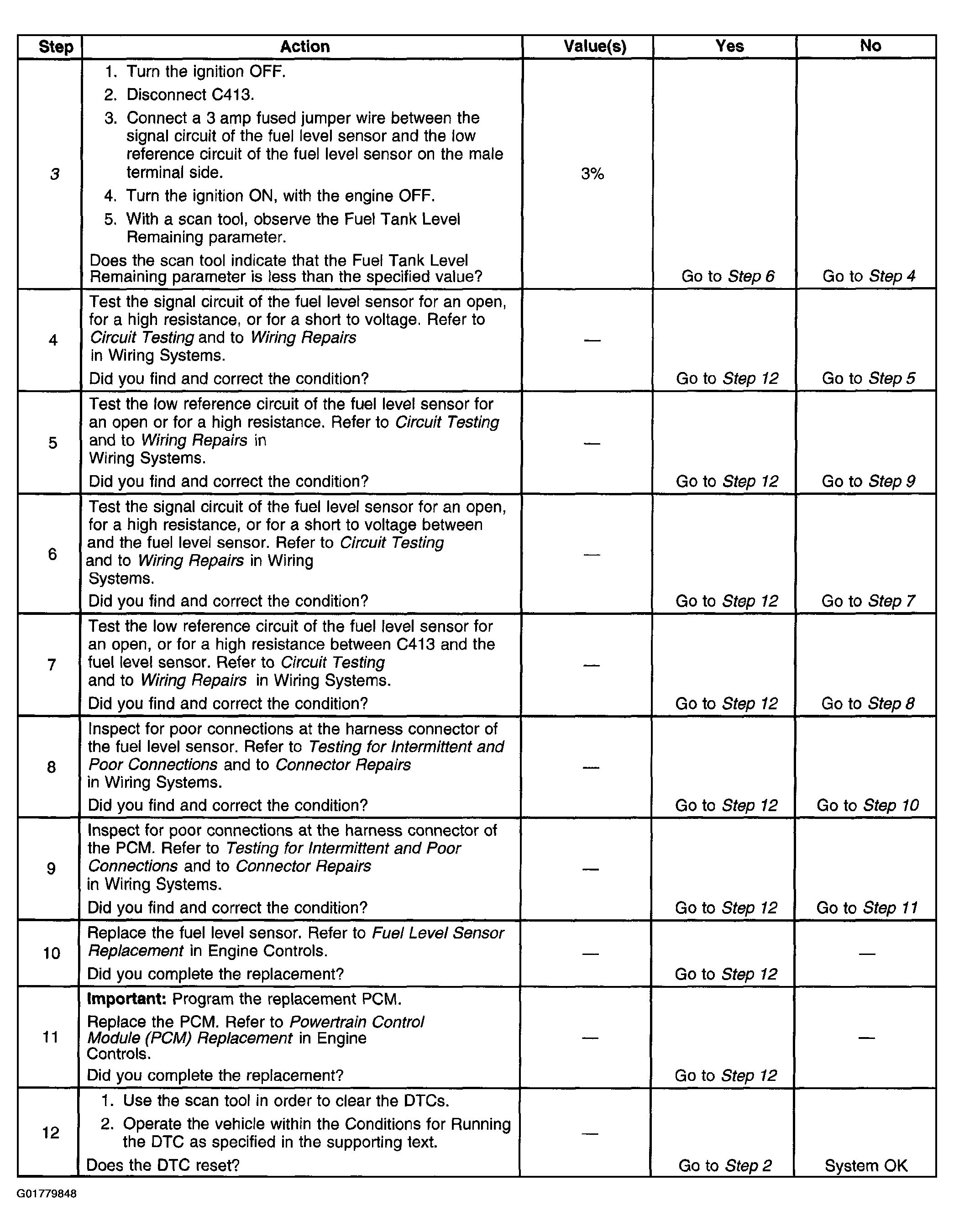

Fig 2: DTC P0463 (2 Of 2)
G01779848Courtesy of GENERAL MOTORS CORP.
