Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .
  2. Untie and loosen the drawstrings from the seat cushion cover.
    Fig 1: Loosening Seat Cushion Cover Drawstrings
    G01780593Courtesy of GENERAL MOTORS CORP.
  3. Unhook the seat cover loops from the front of the seat frame.
    Fig 2: Unhooking Front Seat Cover Loops
    G01780594Courtesy of GENERAL MOTORS CORP.
  4. Unhook the seat cover loops from the rear of the seat frame.
    Fig 3: Unhooking Rear Seat Cover Loops
    G01780595Courtesy of GENERAL MOTORS CORP.
  5. Pull back the rear seat cushion cover from the pad.
  6. Reach inside of the seat cover and unfasten the hook and the loop retainers.
  7. Remove the seat cushion cover from the pad.

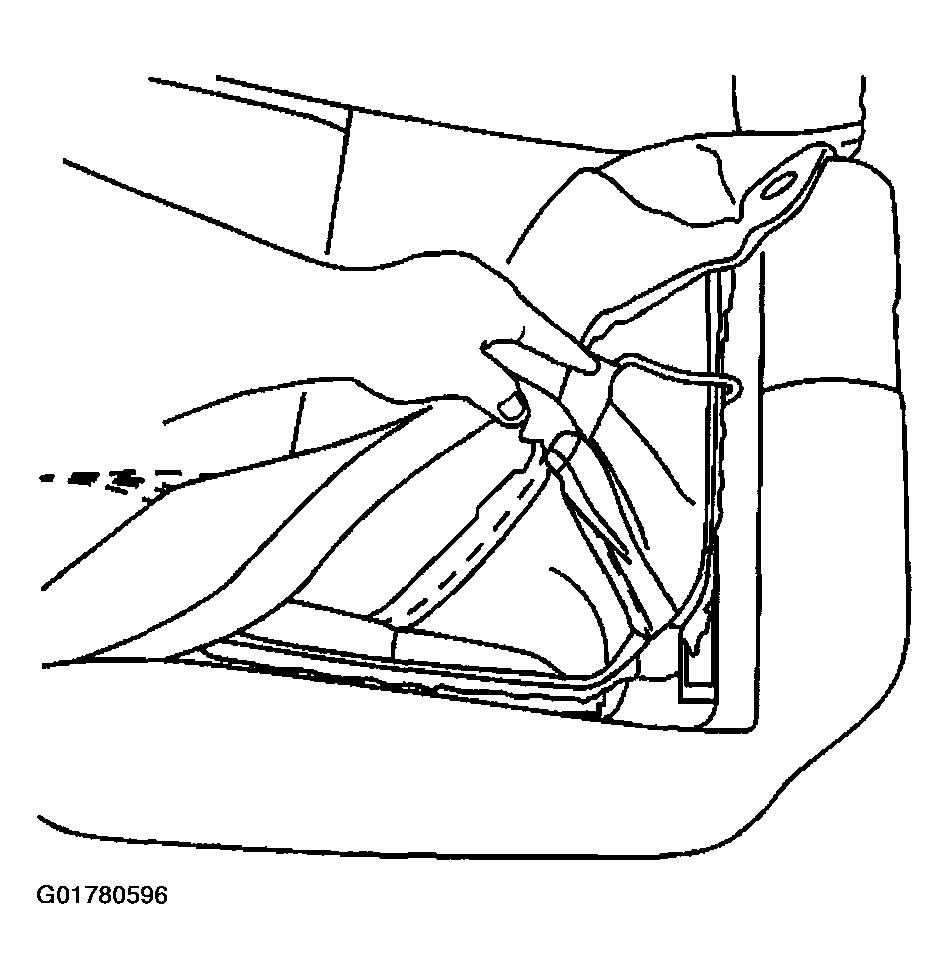

    Fig 4: Removing Seat Cushion Cover
    G01780596Courtesy of GENERAL MOTORS CORP.
