Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the latch striker (2) to the seat back frame (3).
  2. Install the rivets (1) to the latch striker (2). Use a rivet gun to attach the latch striker (2) to the seat back frame (3).
  3. Adjust the seat back cover and the pad to the desired appearance. Refer to Seat Back Cover and Pad - Rear Split Folding .
  4. Install the rear seat back. Refer to Seat Back Replacement - Rear Split Folding .

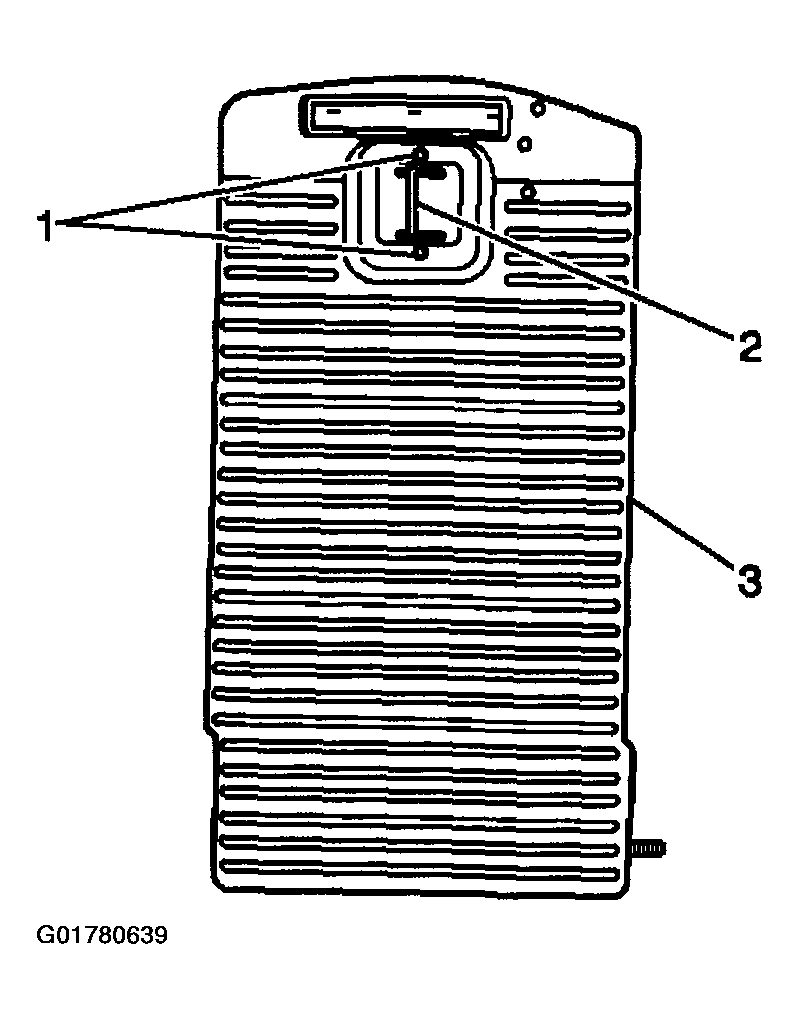

    Fig 1: Installing Seat Back Latch Striker
    G01780639Courtesy of GENERAL MOTORS CORP.
