Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .
  2. Remove the rear seat back bolster bolt (3) from the lower U-bracket.
  3. Lift up the rear seat back bolster (2). Disengage the T-hook from the access hole in the rear shelf in order to remove the rear seat back bolster (2).

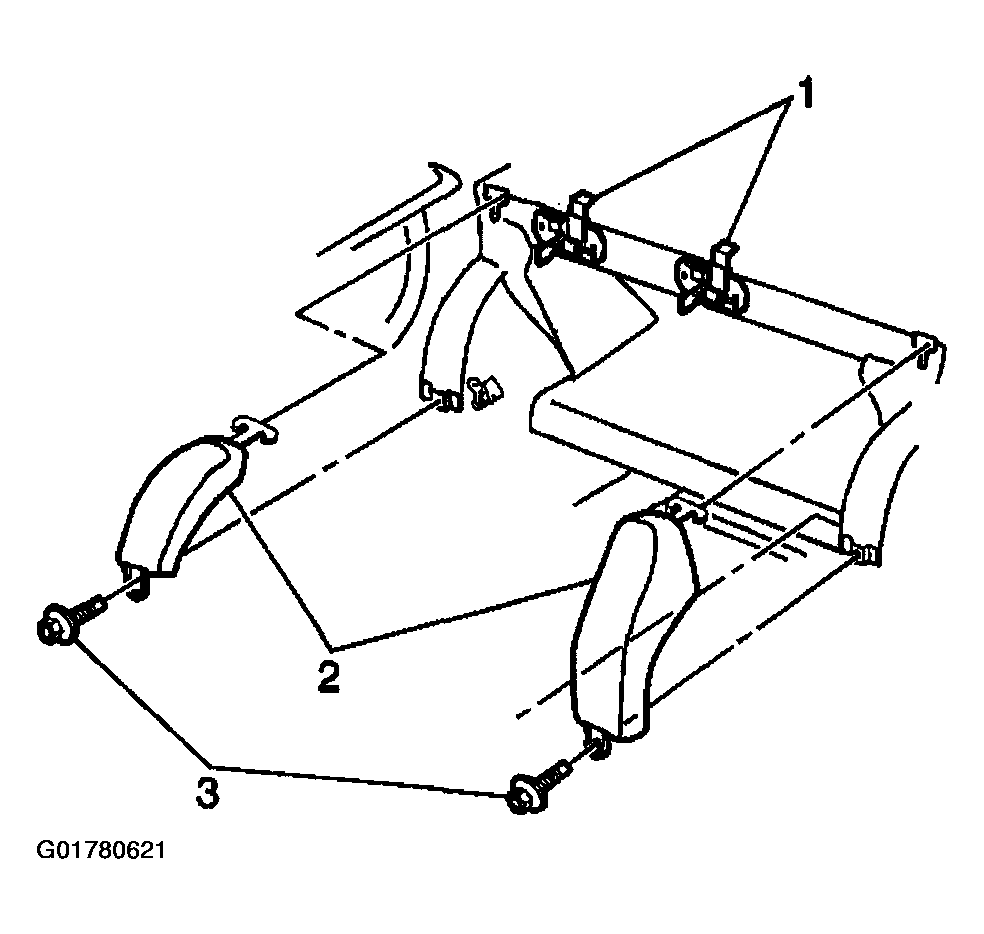

    Fig 1: Removing Rear Split Folding Seat Back Bolster
    G01780621Courtesy of GENERAL MOTORS CORP.
