Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat shoulder belt guide track (1) to the center pillar.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the front seat shoulder belt guide track bolts.

    Tighten

    Tighten the front seat shoulder belt guide track bolts to 42 N.m (31 lb ft).

  3. Install the front seat shoulder belt guide track cover (2).
  4. Install the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR .

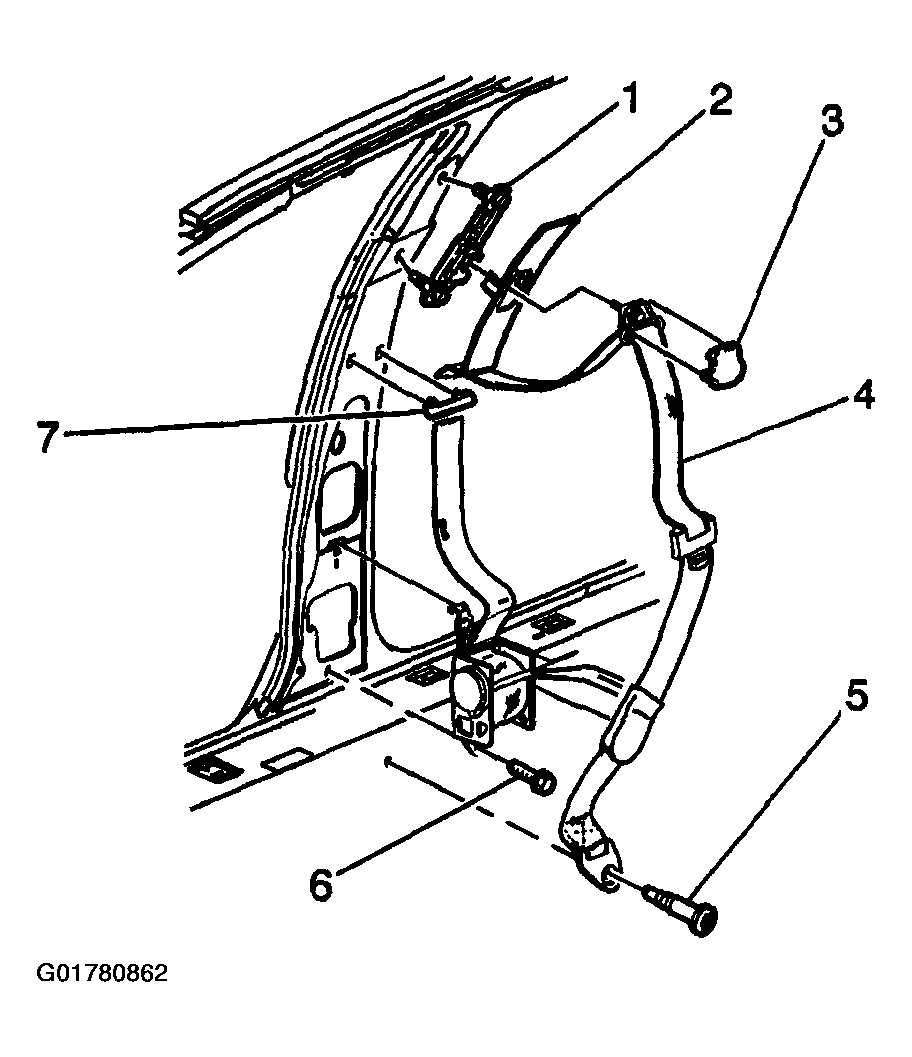

    Fig 1: Installing Front Seat Belt Height Adjuster
    G01780862Courtesy of GENERAL MOTORS CORP.
