Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion and cover. Refer to SEAT BACK COVER & PAD REPLACEMENT - REAR .
  2. Remove the bolt (13) that remains the buckle assembly (14) to the seat frame.
  3. Remove the buckle assembly.

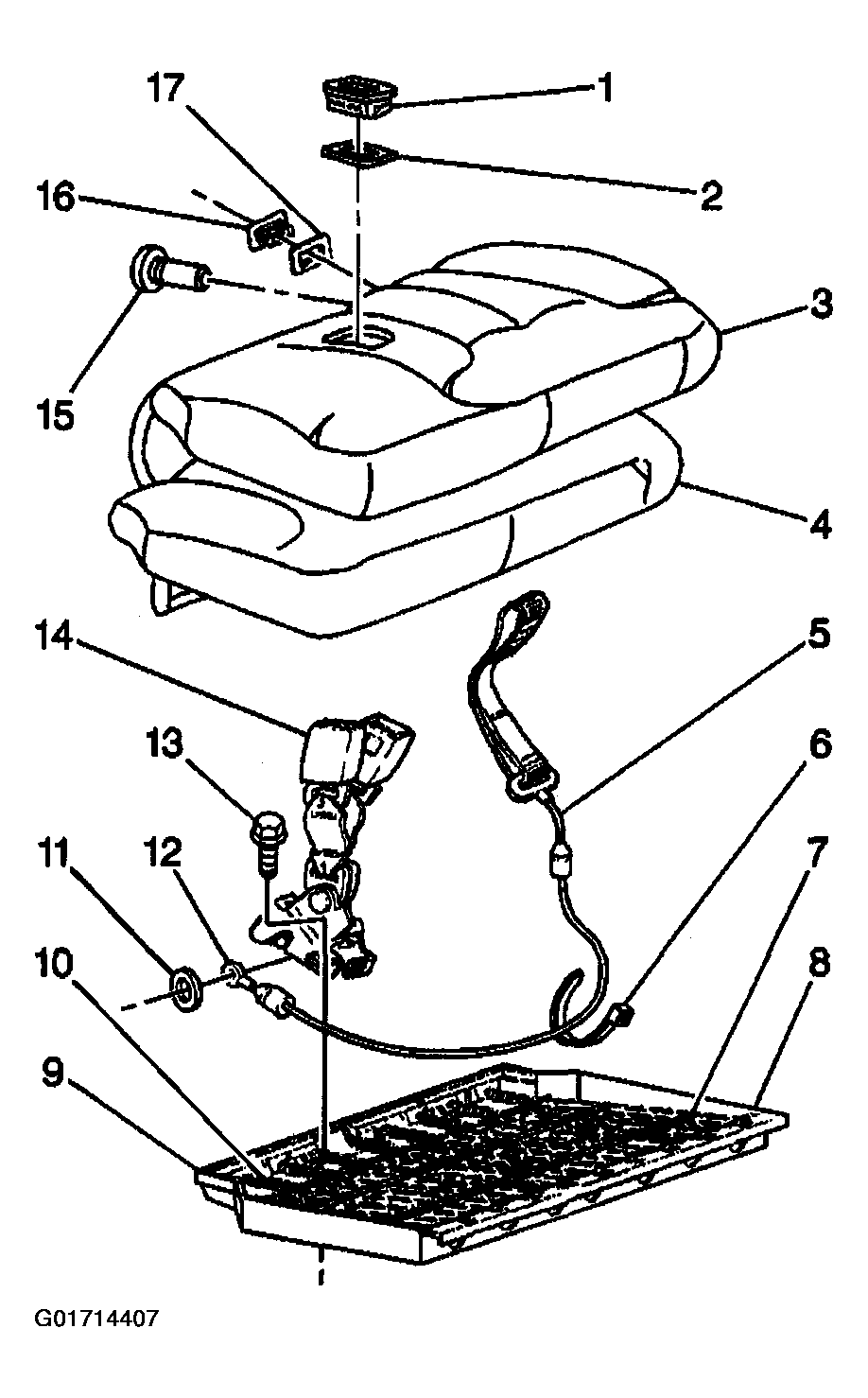

    Fig 1: Seat Belt Buckle & Latch Replacement Rear (Crew Cab)
    G01714407Courtesy of GENERAL MOTORS CORP.
