Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the seat belt buckles through the rear seat cushion. Fold the rear seat up.
  2. Remove the rear seat belt buckle nuts.

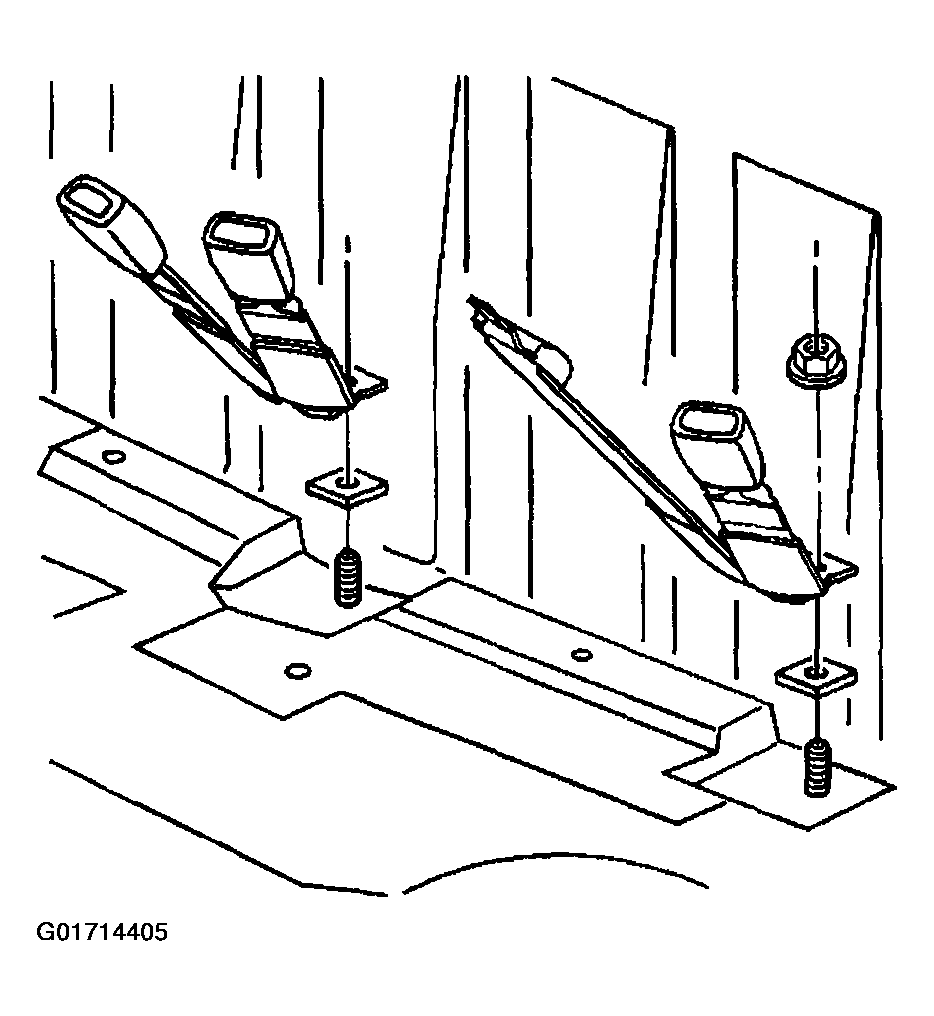

    3. Fig 1: Rear Seat Belt Buckle Nuts
    G01714405Courtesy of GENERAL MOTORS CORP.
  3. Remove the buckle assembly.
