Exhaust Manifold Removal-Left (C/K/G/C3500HD)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Twist the spark plug boot one-half turn in order to release the boot. Pull on the spark plug boot only. Do not pull on the spark plug wire or the wire could be damaged.

Remove the left spark plug wires from the spark plugs and ignition coils.

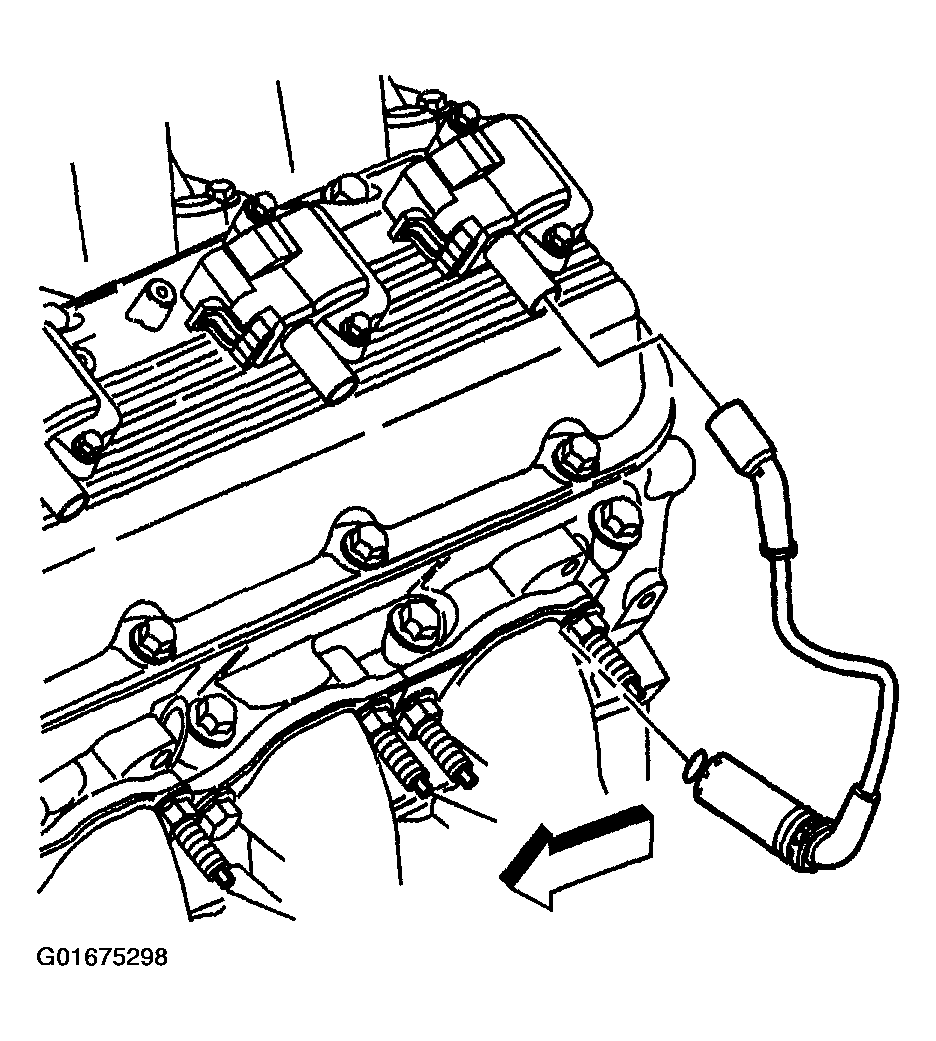

Fig 1: Left Spark Plug Wires (C/K/G/C3500HD)
Courtesy of GENERAL MOTORS CORP.
Remove the left exhaust manifold heat shield bolts and nuts.
Remove the left exhaust manifold heat shield.

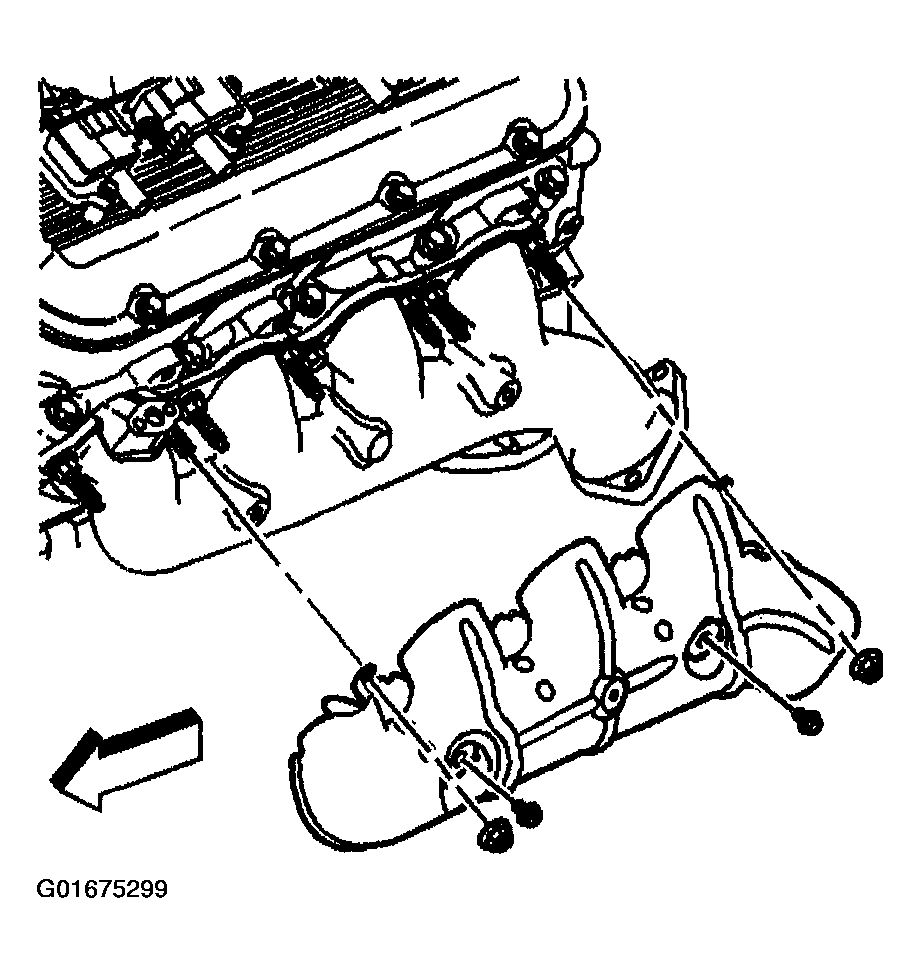

Fig 2: Left Exhaust Manifold Heat Shield & Bolts (C/K/G/C3500HD)
Courtesy of GENERAL MOTORS CORP.
Remove the left exhaust manifold nuts and center bolt.
Remove the left exhaust manifold.
Remove the left exhaust manifold gasket.

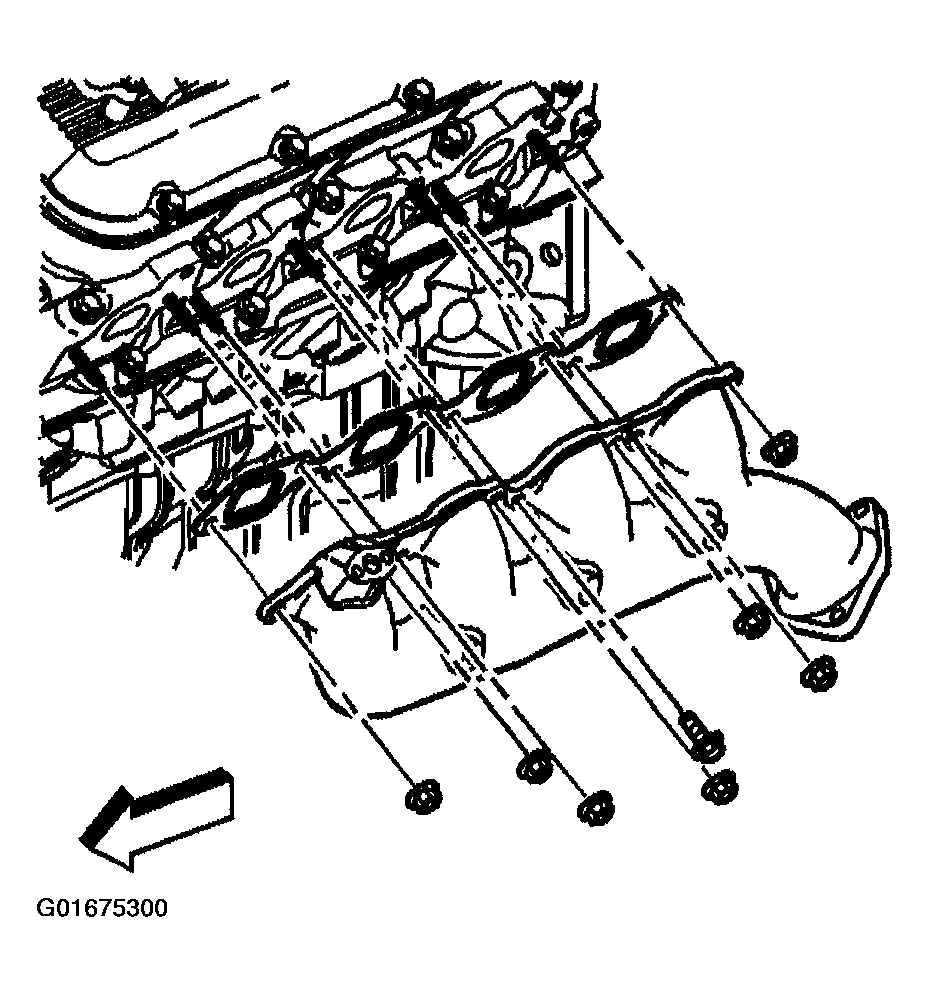

Fig 3: Left Exhaust Manifold, Gasket & Nuts (C/K/G/C3500HD)
Courtesy of GENERAL MOTORS CORP.
Remove the left spark plugs.

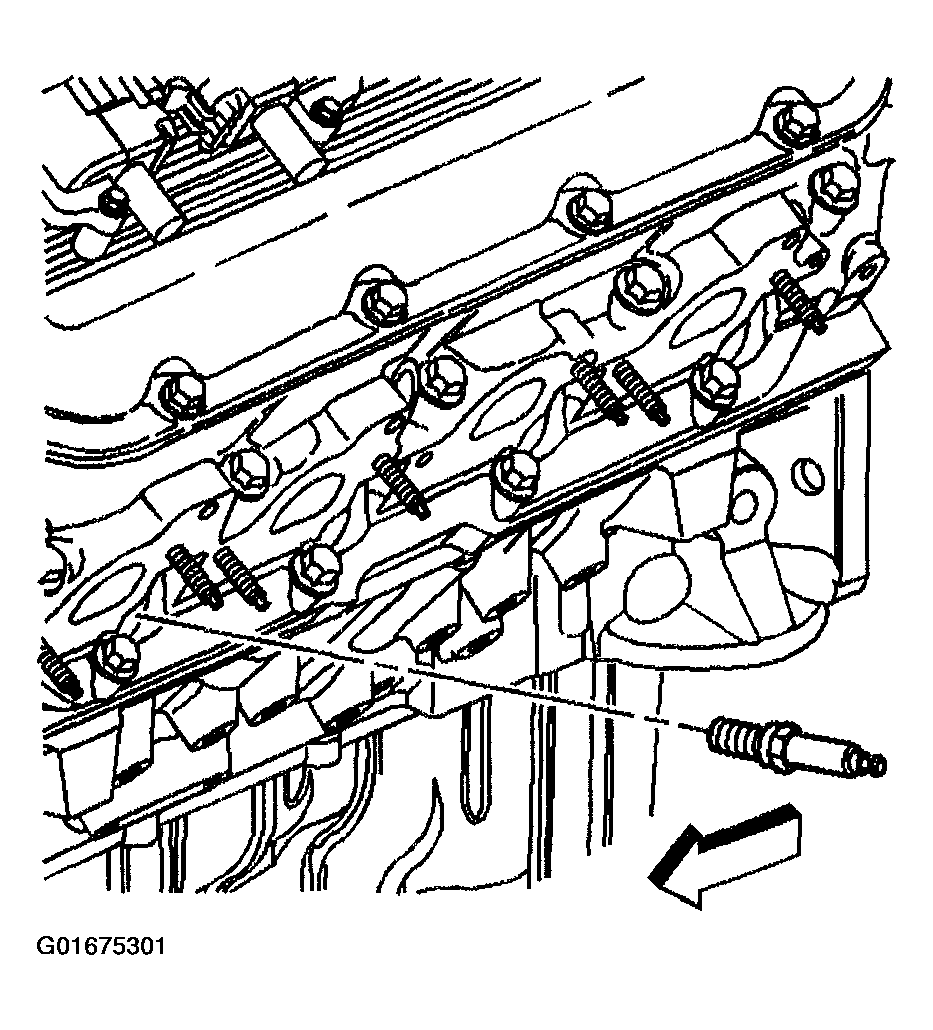

Fig 4: Left Spark Plug (C/K/G/C3500HD)
Courtesy of GENERAL MOTORS CORP.
Remove the exhaust manifold studs, if necessary.

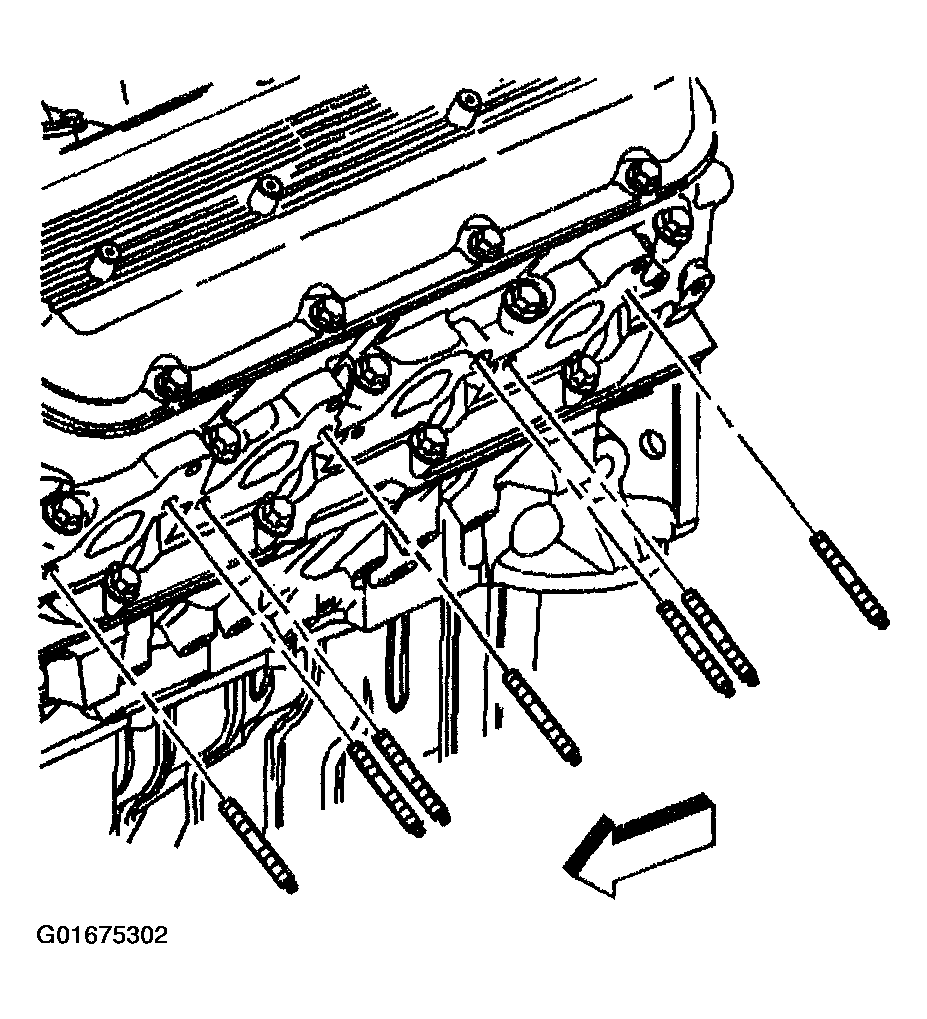

Fig 5: Exhaust Manifold Studs (C/K/G/C3500HD)
Courtesy of GENERAL MOTORS CORP.
