Engine Flywheel Removal (C/K with MT)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The flywheel may need to be tapped with a non-metallic mallet from the engine side due to a slight interference fit to the crankshaft.

  1. Remove the engine flywheel bolts.
  2. Remove the engine flywheel.

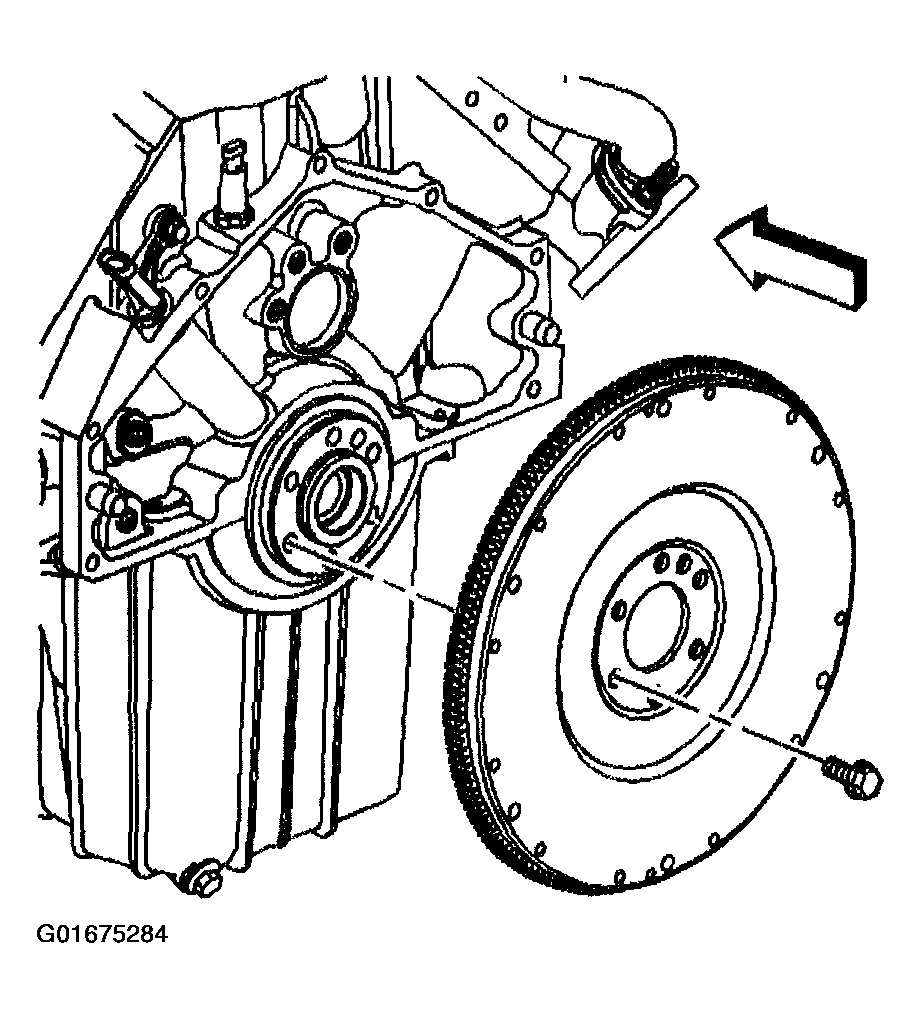

    Fig 1: Engine Flywheel (C/K W/MT)
    G01675284Courtesy of GENERAL MOTORS CORP.
