Engine Flywheel Housing Installation (Medium Duty with MT)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine flywheel housing.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine flywheel housing bolts.

    Tighten

    Tighten the engine flywheel housing bolts to 60 N.m (44 lb ft).

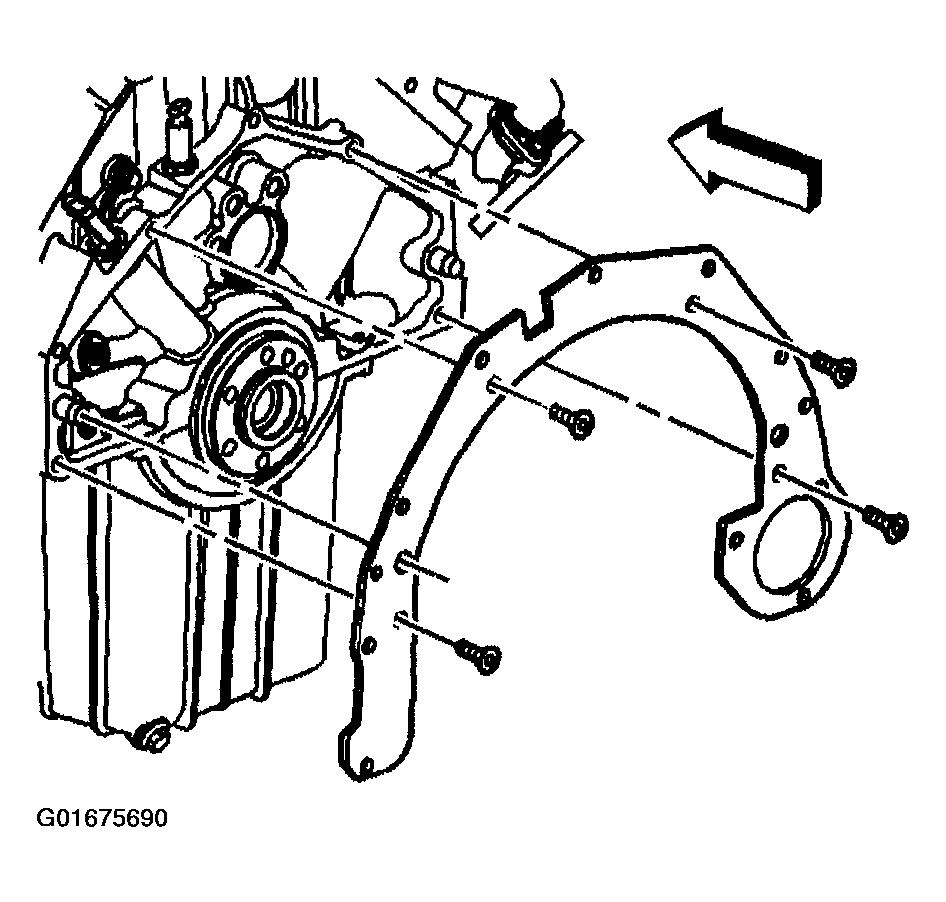

    Fig 1: Engine Flywheel Housing & Bolts (Medium Duty W/MT)
    G01675690Courtesy of GENERAL MOTORS CORP.
