Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

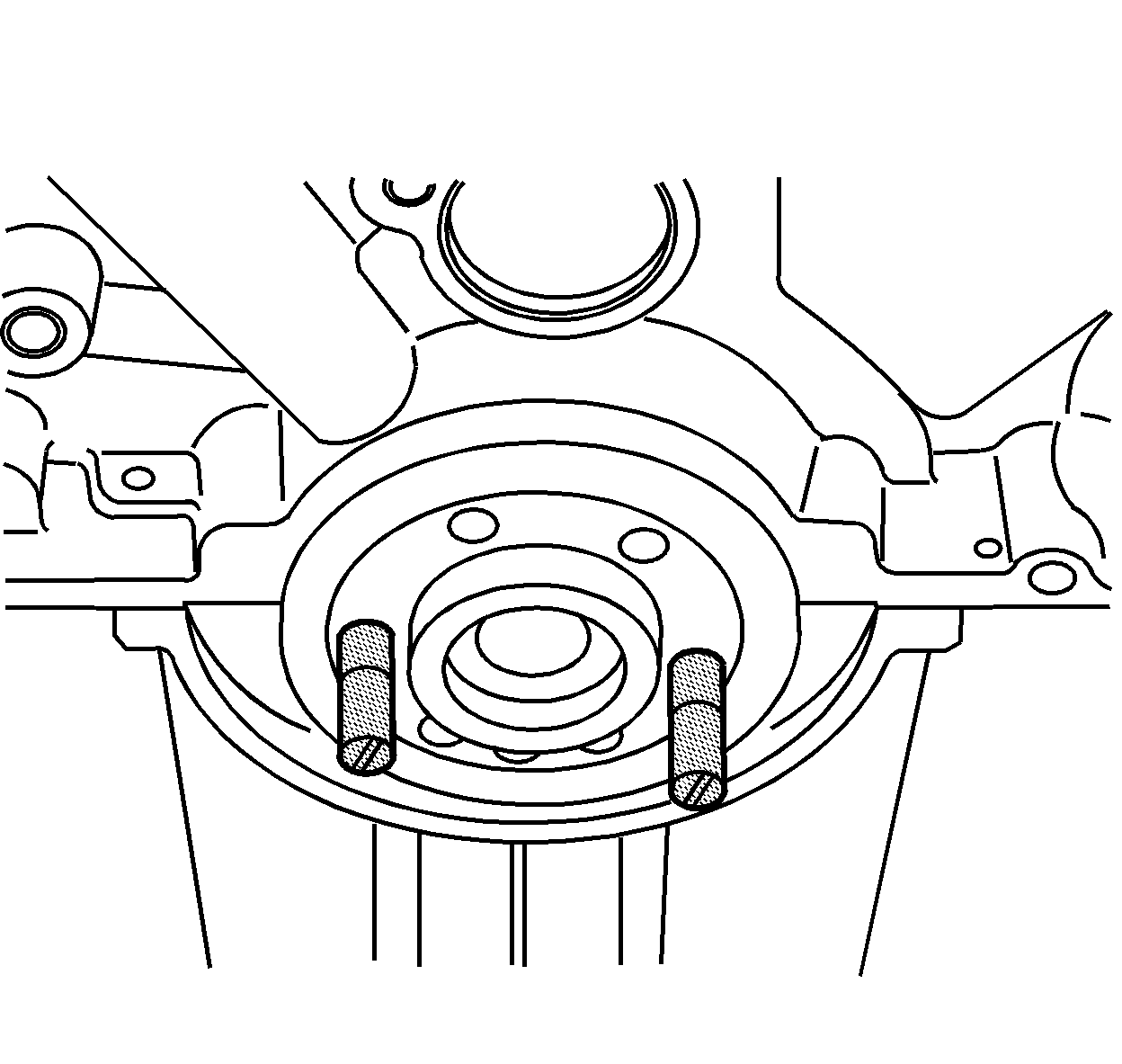

    Fig 1: View Of Guide Pins In Crankshaft
    GM655276Courtesy of GENERAL MOTORS CORP.
  1. Remove the flywheel. Refer to Engine Flywheel Replacement .
  2. Install the guide pins from J 43320  into the crankshaft.

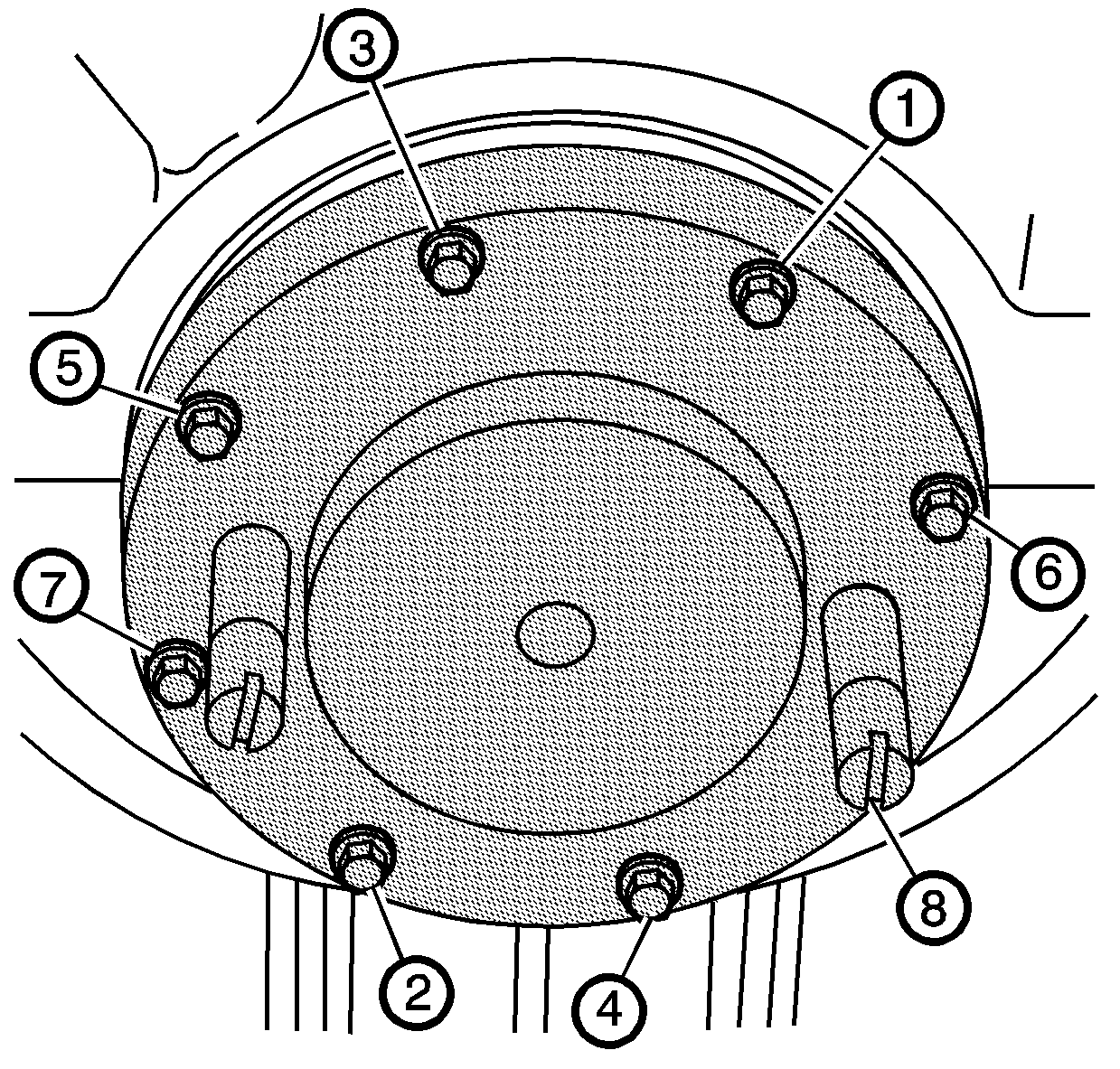

    3. Fig 2: J 43320 Self-Drilling Sheet Metal Screws Installation Sequence
    GM655278Courtesy of GENERAL MOTORS CORP.
  3. Install the J 43320  over the guide pins.
  4. Using a suitable drill, insert eight of the self-drilling sheet metal screws into the rear crankshaft seal, using a criss-cross pattern. The self-tapping screws are included with the J 43320

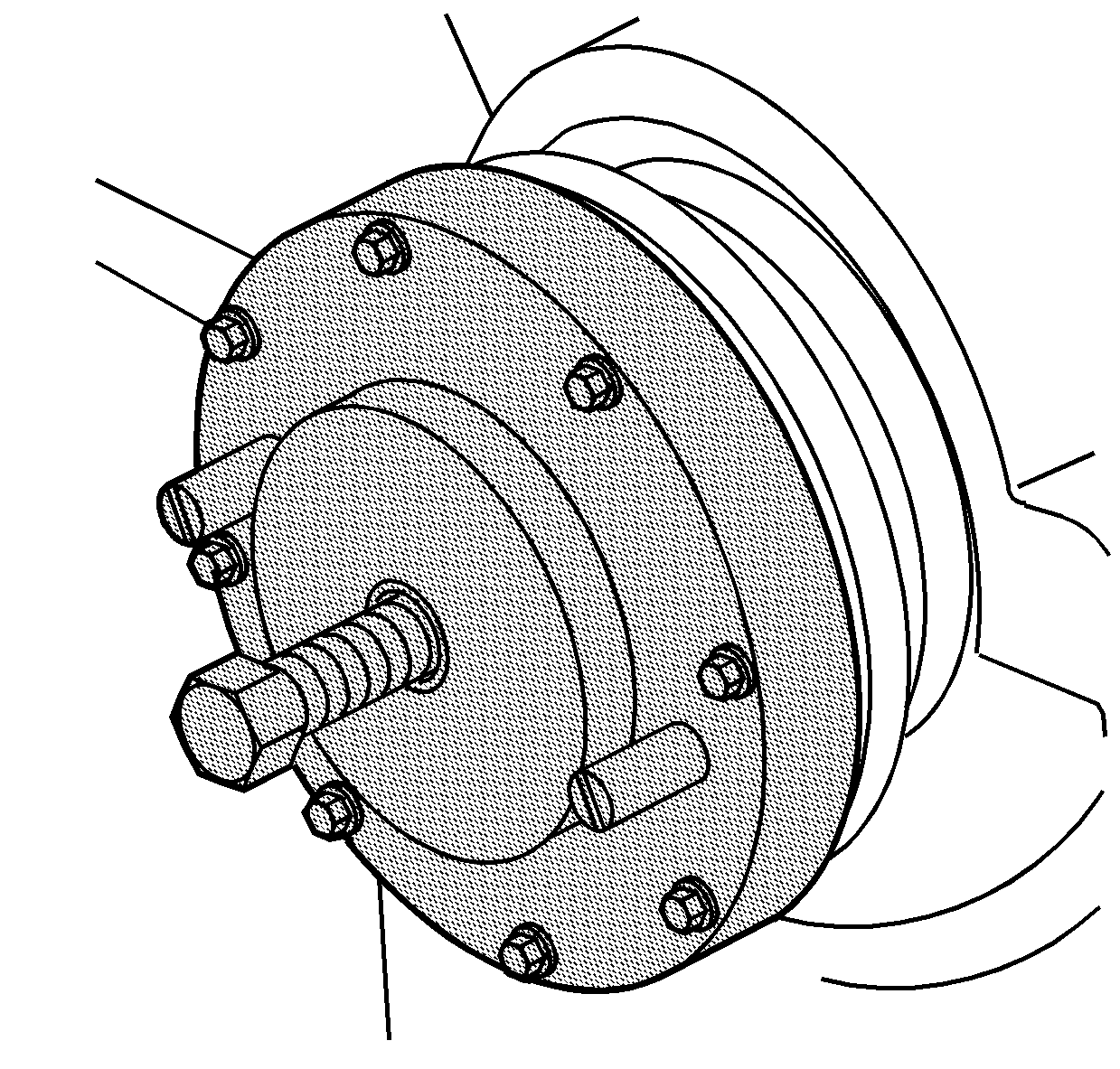

    5. Fig 3: View Of J 43320 & Center Bolt
    GM655279Courtesy of GENERAL MOTORS CORP.
  5. Thread the center bolt of J 43320  into the crankshaft to remove the seal.
  6. Remove the guide pins from the crankshaft.
