Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the right side of the rear seat forward to gain access to the armrest trim cover and bolts.
  2. Remove the armrest trim cover (7).
  3. Remove the armrest bolts (6).
  4. Remove the armrest by sliding off the pivot and out.

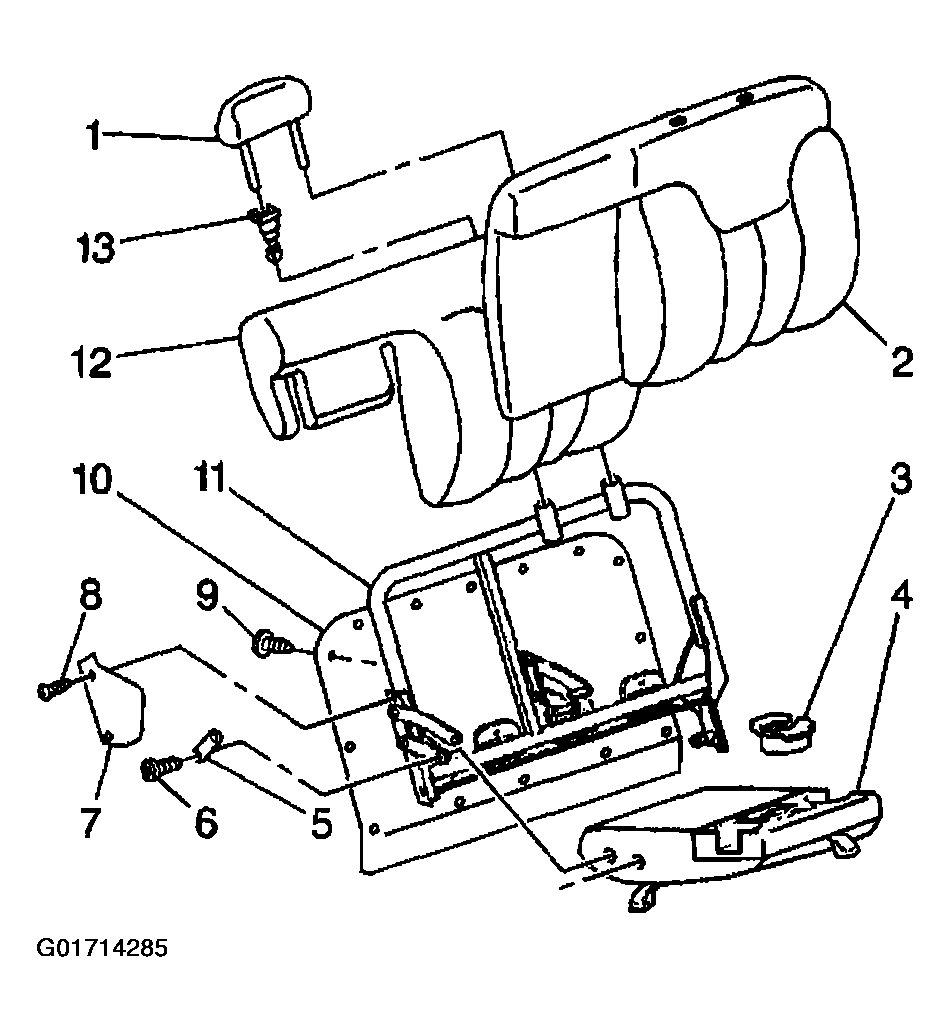

    Fig 1: Armrest Replacement - Rear Seat
    G01714285Courtesy of GENERAL MOTORS CORP.
