Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove all of the related panels and components.
  2. Remove any excess sealer surrounding the existing hinge and scribe the location of the hinge on the hinge pillar.
  3. Lightly hand-sand the existing hinge with 100 grit or finer sandpaper in order to locate the 4 welds that attach the hinge to the pillar.

    Important:  It is critical to punch the center of the weld so that as much of the weld as possible is removed during the drilling.

  4. Center punch each of the 4 weld marks on the original hinge.

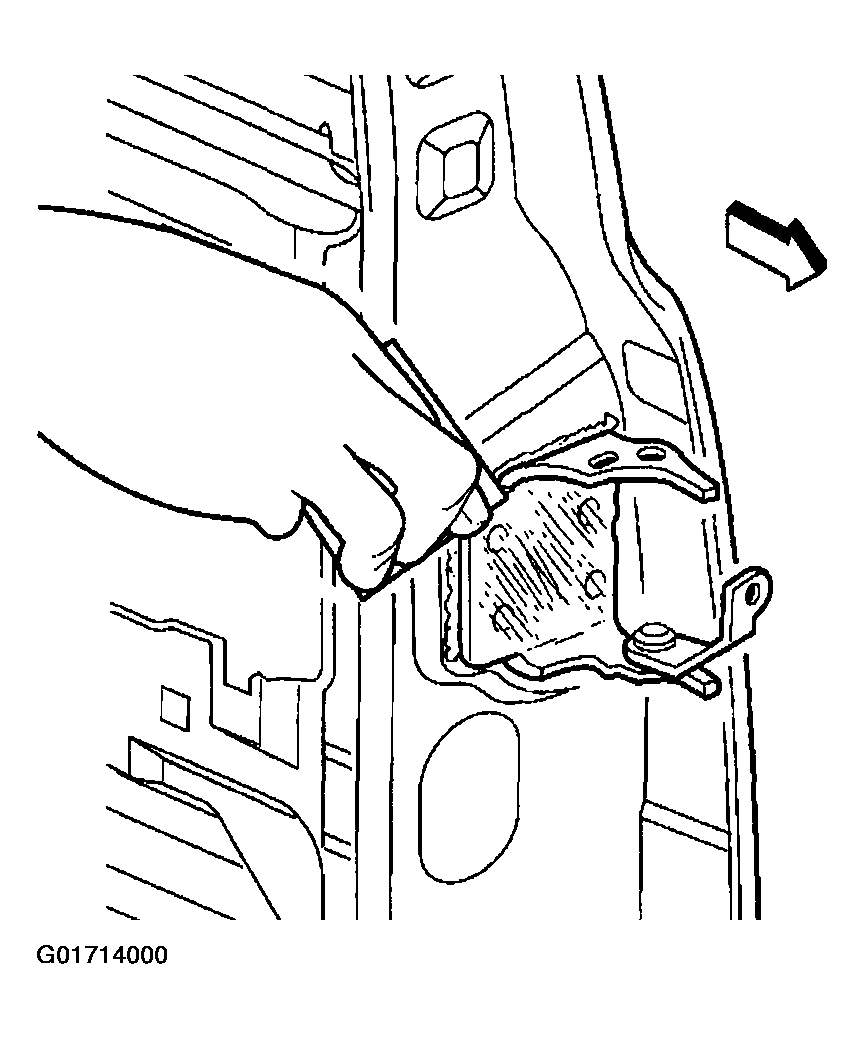

    Fig 1: Center Punch Each Of The 4 Weld Marks On Original Hinge
    G01714000Courtesy of GENERAL MOTORS CORP.

    Important:  Do not drill into the door (1).

  5. Drill through the hinge (2), at each punch location. Use a 13 mm (1/2 in) rotabroach hole saw (3) or equivalent.
    6. Fig 2: Using Rotabroach Hole Saw
    G01714001Courtesy of GENERAL MOTORS CORP.
  6. Remove the hinge. If necessary, use a chisel in order to separate the hinge from the door.
  7. Remove all of the remaining welds from the door surface in order to ensure a flush fit of the service hinge.
