Diagnostic Aids

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The automatic day-night feature of the driver outside rearview mirror may be inoperative due to the signal circuit being shorted to battery positive voltage.

When this condition occurs, both the driver outside rearview mirror and the inside rearview mirror will be in a darkened state. Both mirrors will be permanently damaged and will need to be replaced.

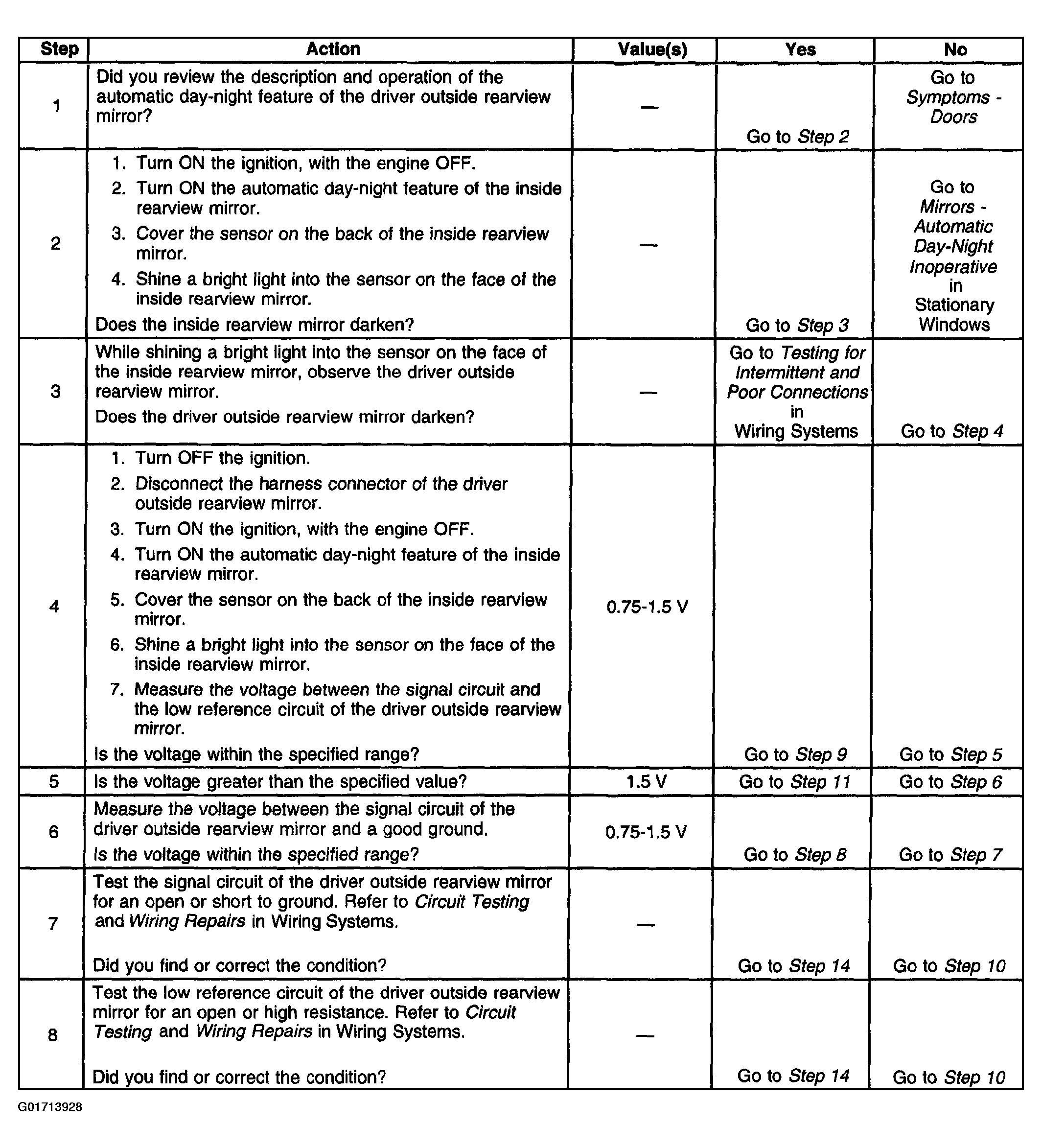

Fig 1: Mirrors - Outside Automatic Day-Night Feature Inoperative (Steps 1-8)

Courtesy of GENERAL MOTORS CORP.

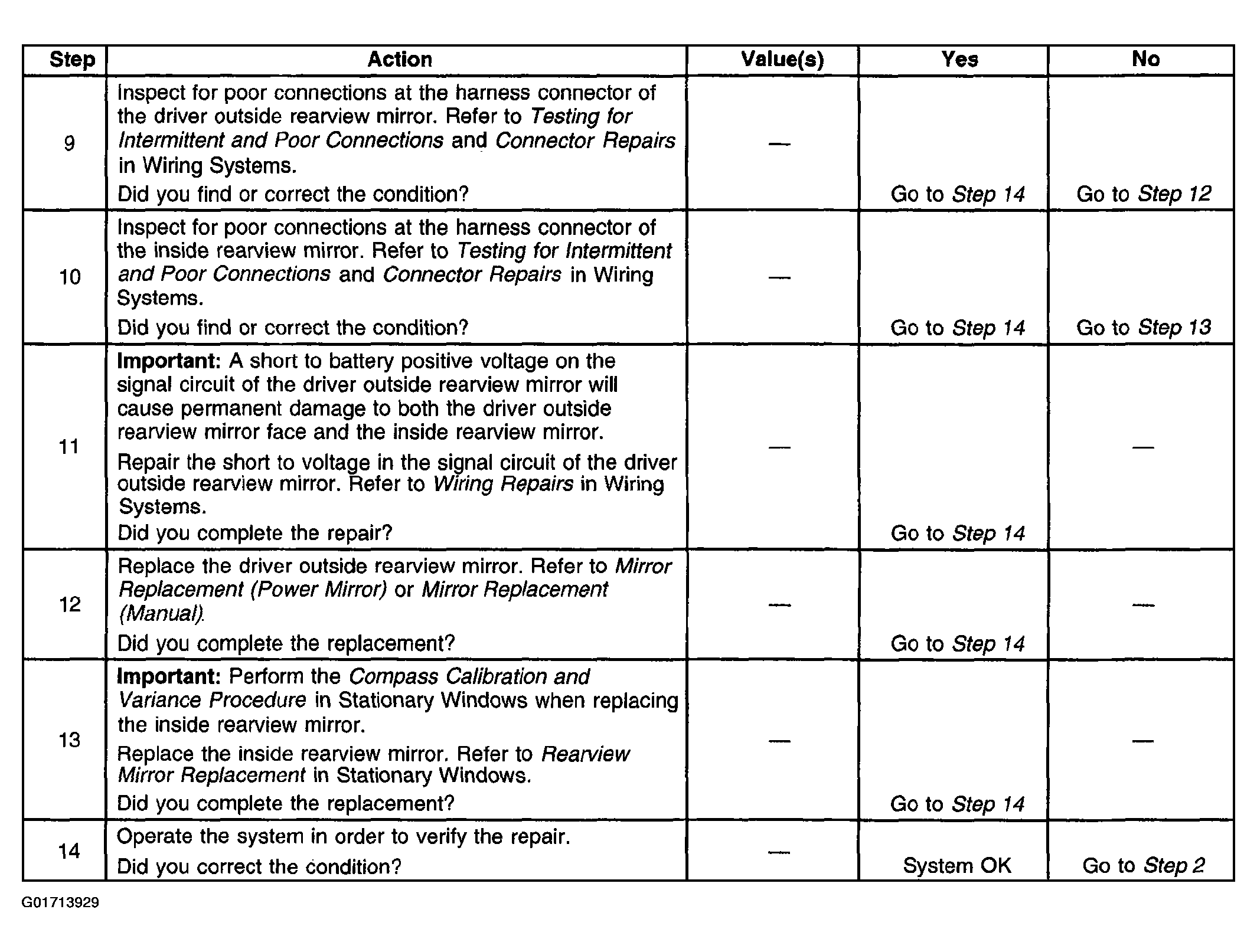

Fig 2: Mirrors - Outside Automatic Day-Night Feature Inoperative (Steps 9-14)

Courtesy of GENERAL MOTORS CORP.
