Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 25070  in order to heat the molding and the surrounding sheet metal to 82-93°C (180-200°F).
  2. Remove the roof joint molding.
    • Use a flat bladed tools in order to pry off the molding between the seater and the joint. Use pliers or a similar tool in order to handle the hot molding and pull the molding loose. The molding and the sealer should come off in 1 piece.
    • Do not damage the paint on the cab.

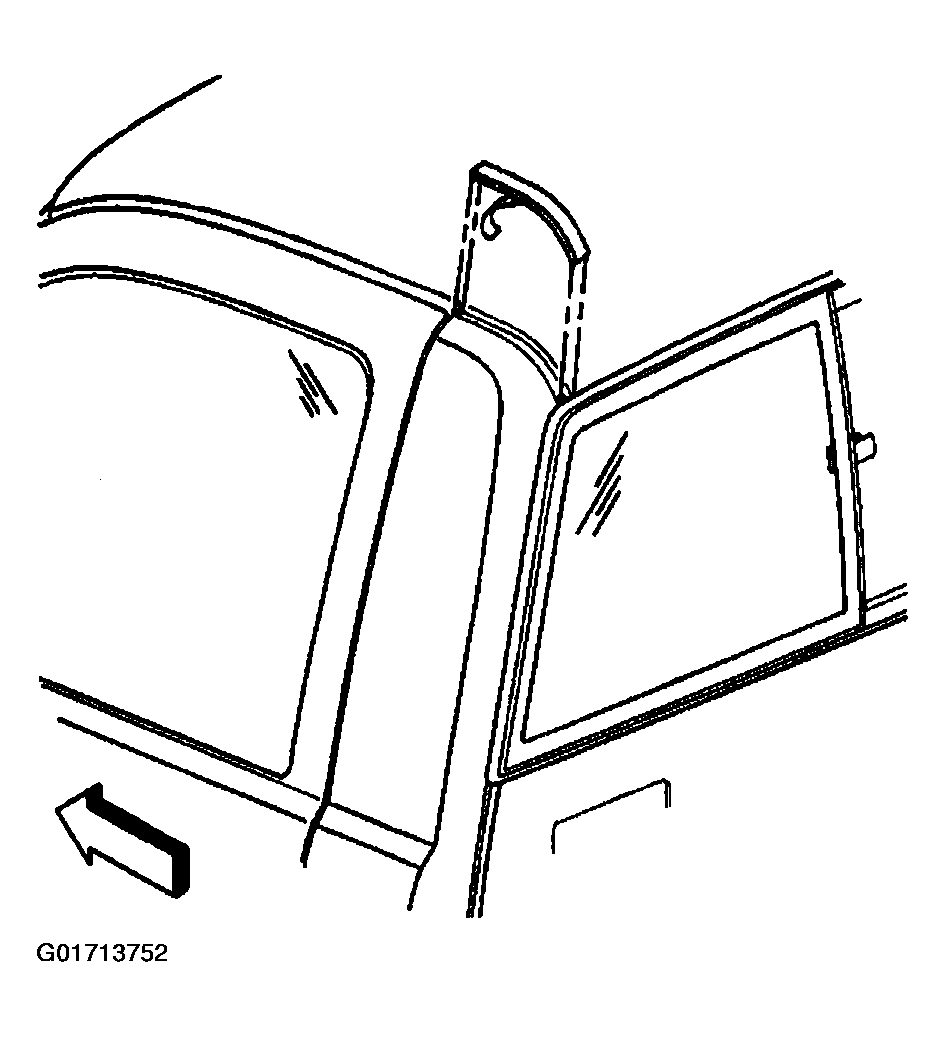

    Fig 1: Roof Joint Molding (Standard Cab)
    G01713752Courtesy of GENERAL MOTORS CORP.
  3. Clean the joint in order to remove any remaining sealer. Sealer could interfere with the fit of the replacement molding.
