Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

For diesel only, remove the winter cover, if equipped and installed.
Open the hood.
Remove the upper grille baffle.

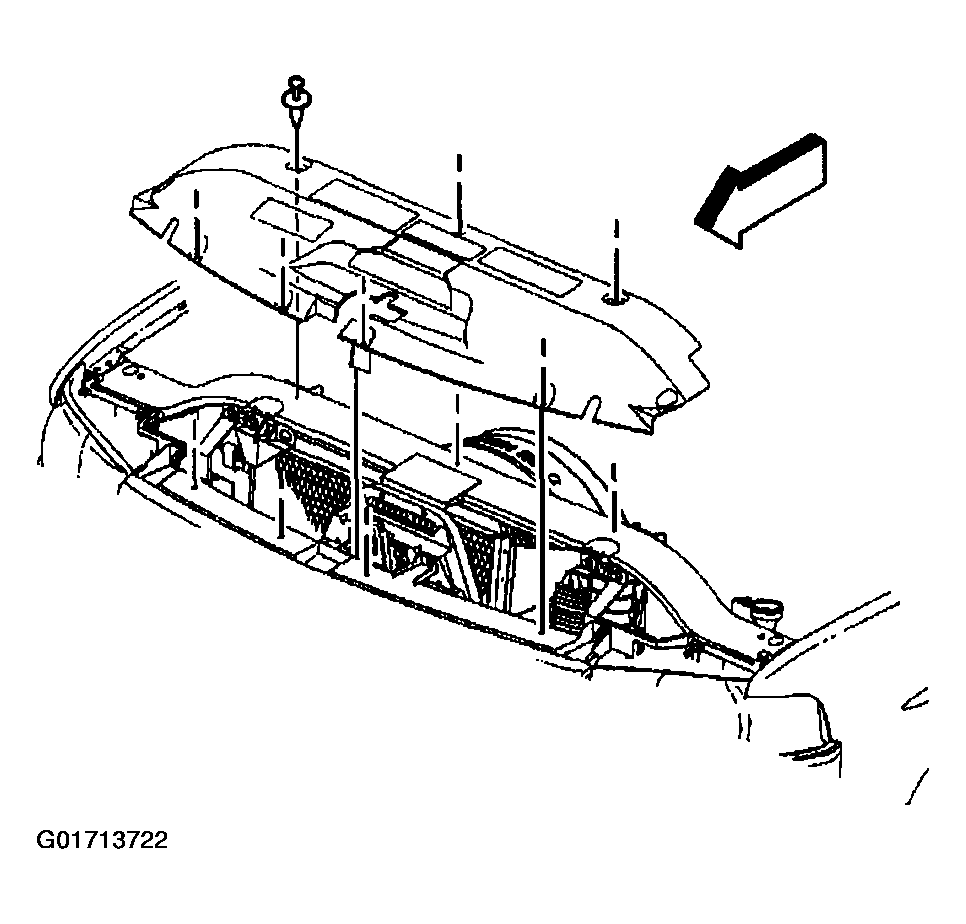

Fig 1: Upper Grille Baffle
Courtesy of GENERAL MOTORS CORP.
Using a Phillips screwdriver, rotate the grille retainer 1/4 turn counterclockwise.

Fig 2: Grille Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the screw holding the grille to the latch support.

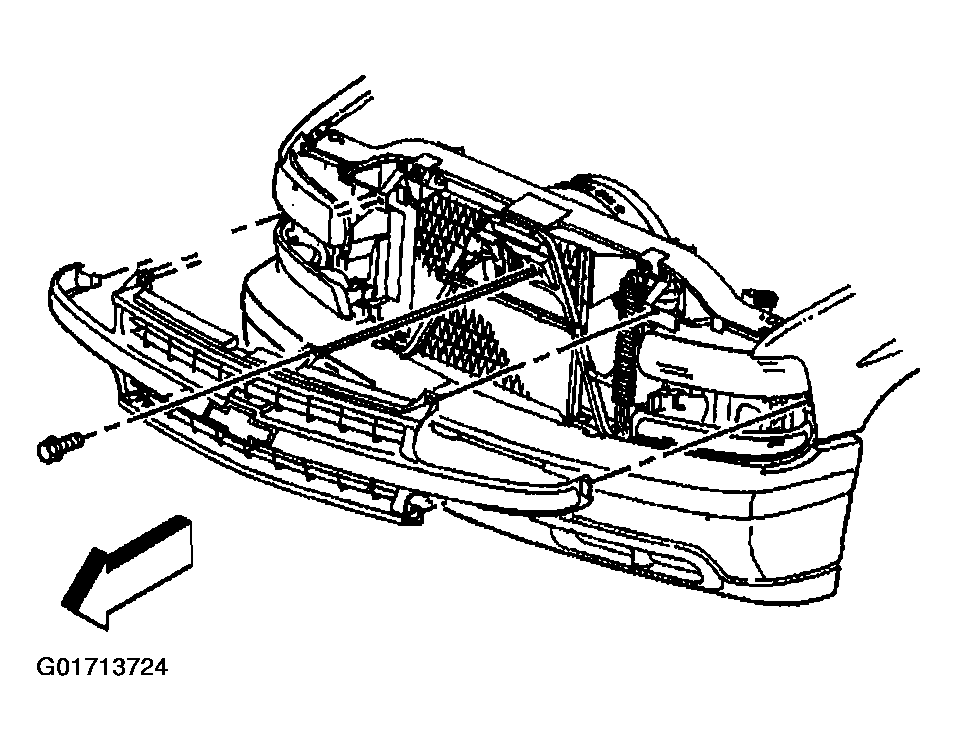

Fig 3: Grille Assembly
Courtesy of GENERAL MOTORS CORP.
Unsnap the grille ends from the fender. Remove the grille from the vehicle.

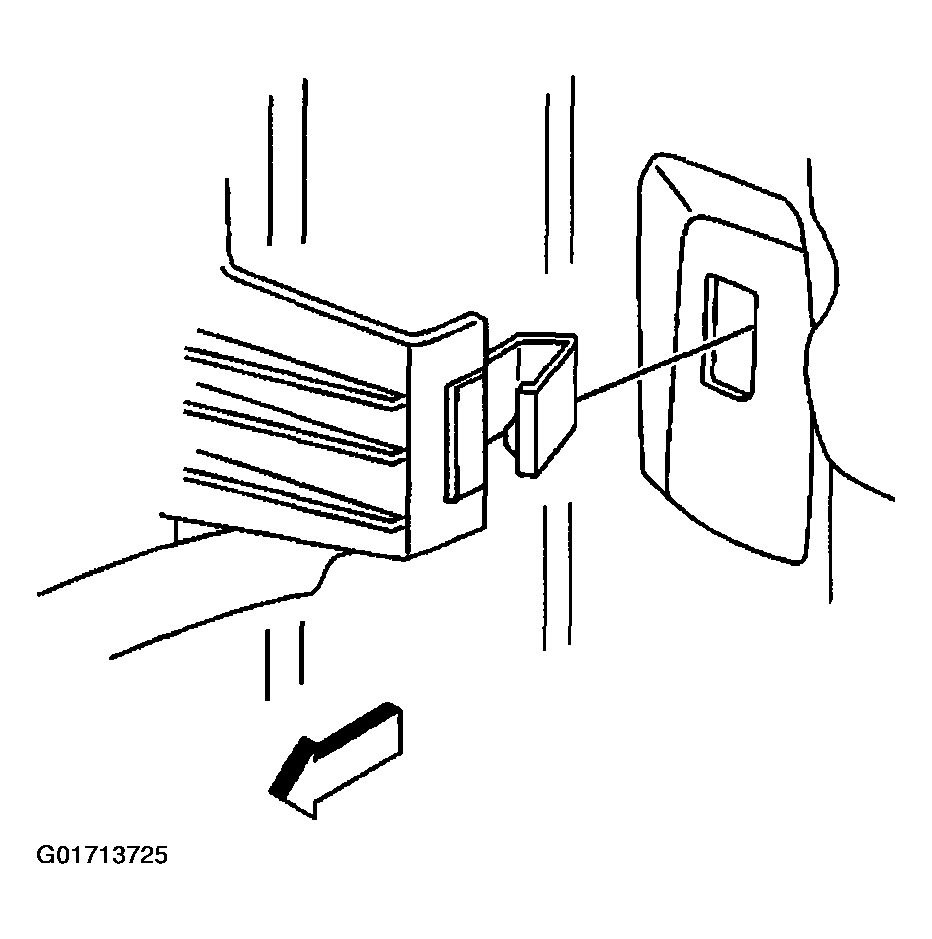

Fig 4: Grille End Snap Fastener
Courtesy of GENERAL MOTORS CORP.
