Diagnostic Aids

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Refer to EXTERIOR LIGHTING SYSTEMS DESCRIPTION & OPERATION in order to avoid a misdiagnosis.

For an intermittent condition, refer to TESTING FOR INTERMITTENT & POOR CONNECTIONS .

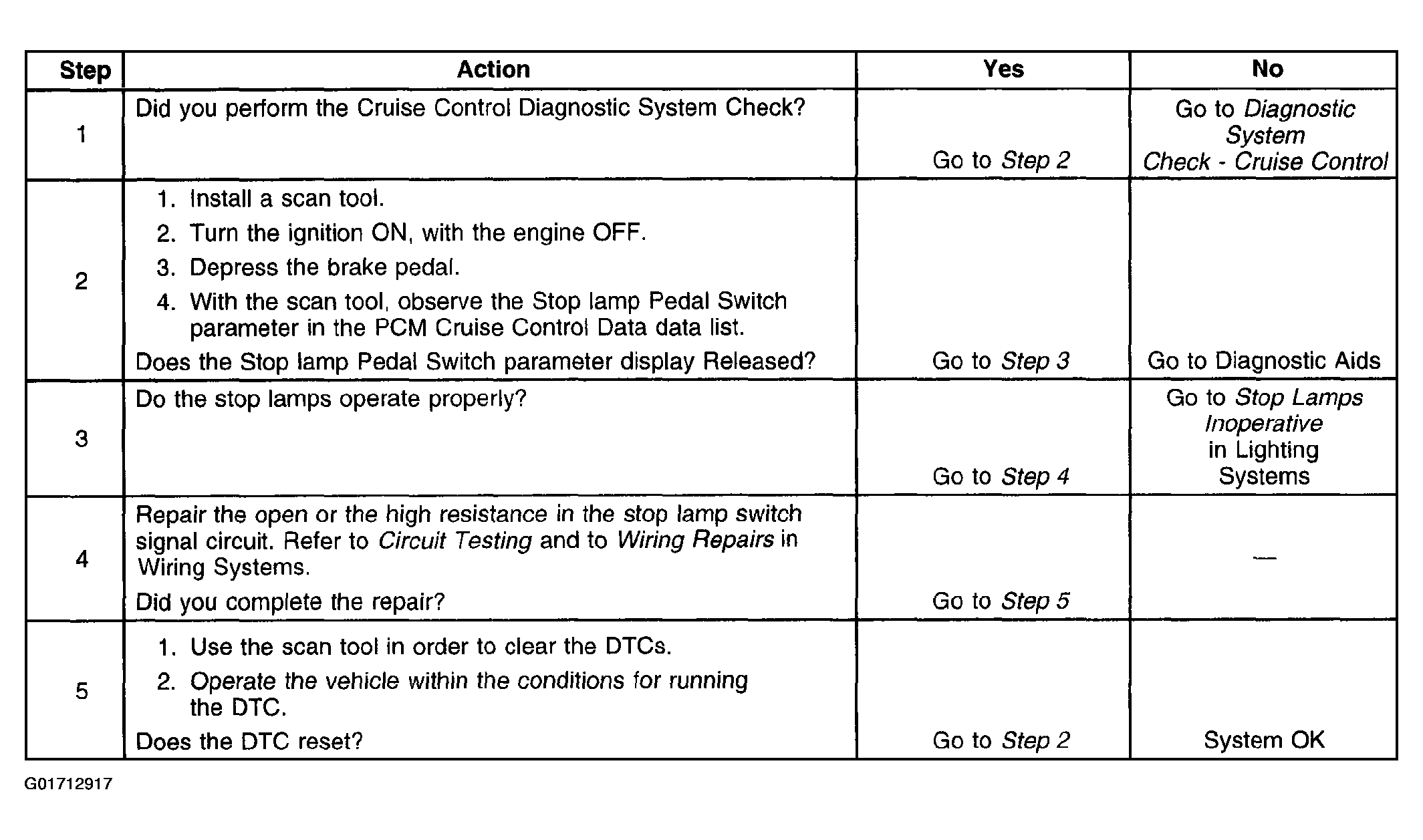

Fig 1: DTC P1574 Diagnosis
G01712917Courtesy of GENERAL MOTORS CORP.
