Conditions for Enabling Cruise Control

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The vehicle speed is greater than 40 km/h (25 mph).

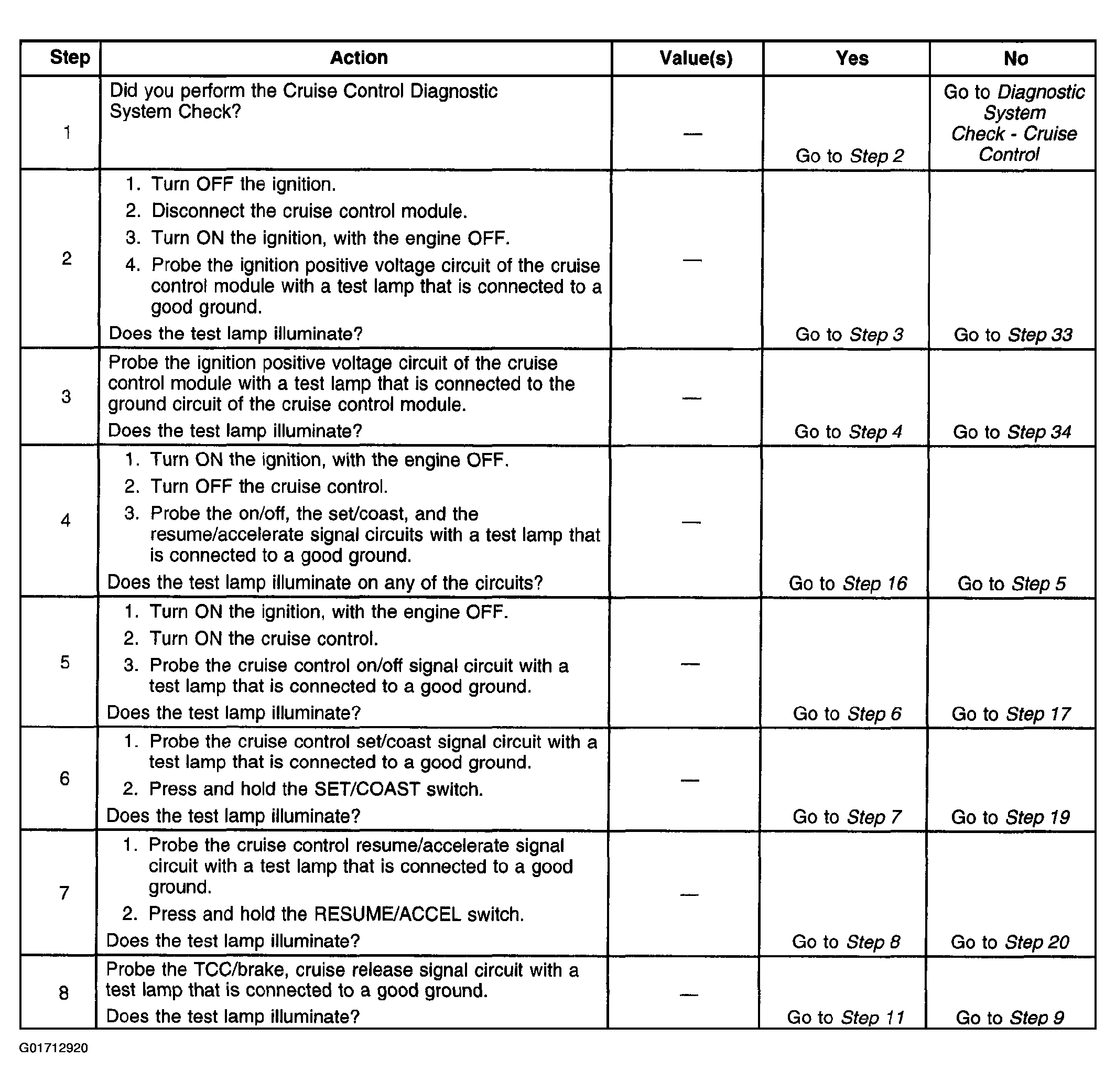

Fig 1: Cruise Control Inoperative/Malfunctioning (4.3L, 4.8L, 5.3L & 6.0L Without ETC) Diagnosis (Steps 1-8)

Courtesy of GENERAL MOTORS CORP.

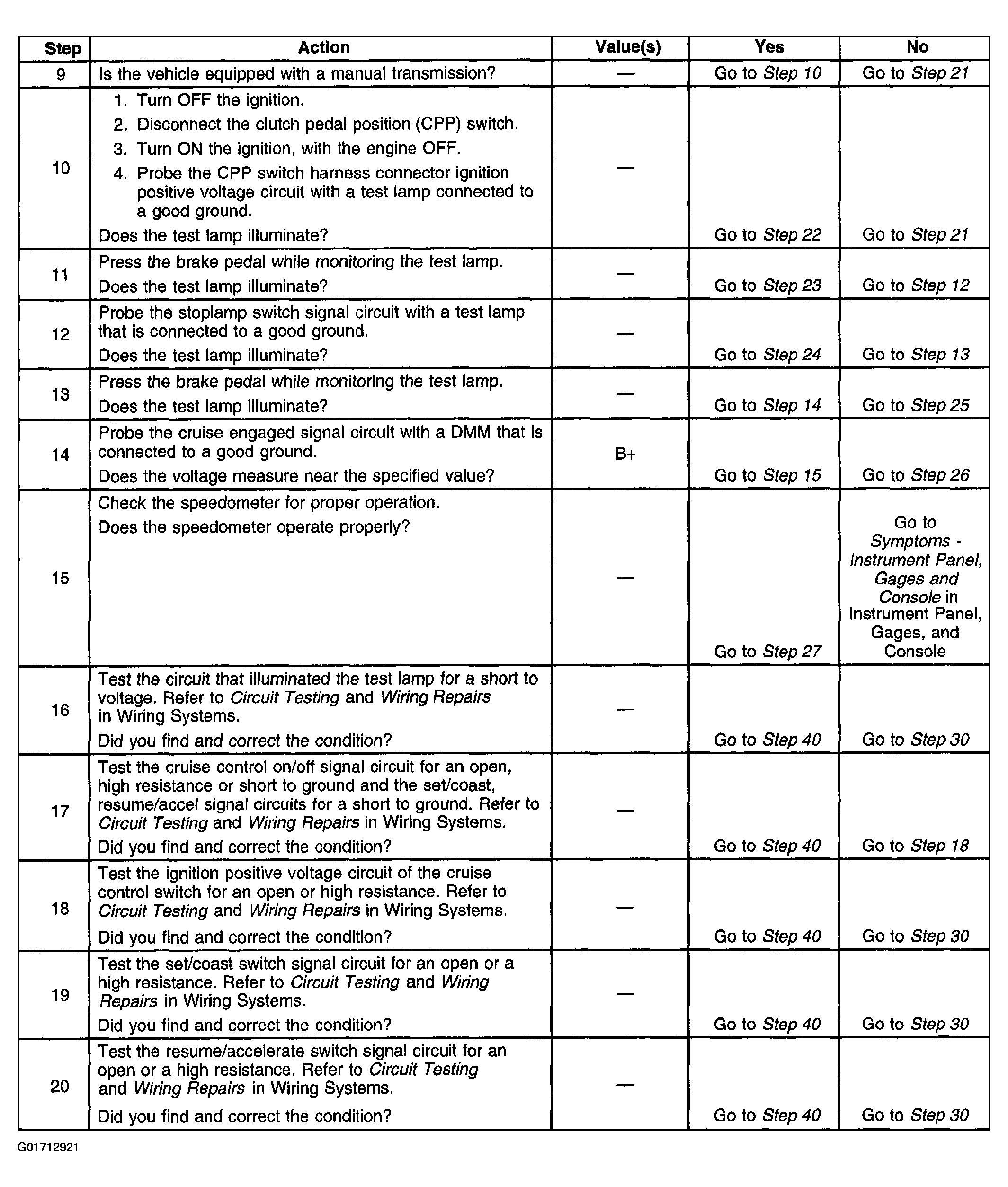

Fig 2: Cruise Control Inoperative/Malfunctioning (4.3L, 4.8L, 5.3L & 6.0L Without ETC) Diagnosis (Steps 9-20)

Courtesy of GENERAL MOTORS CORP.

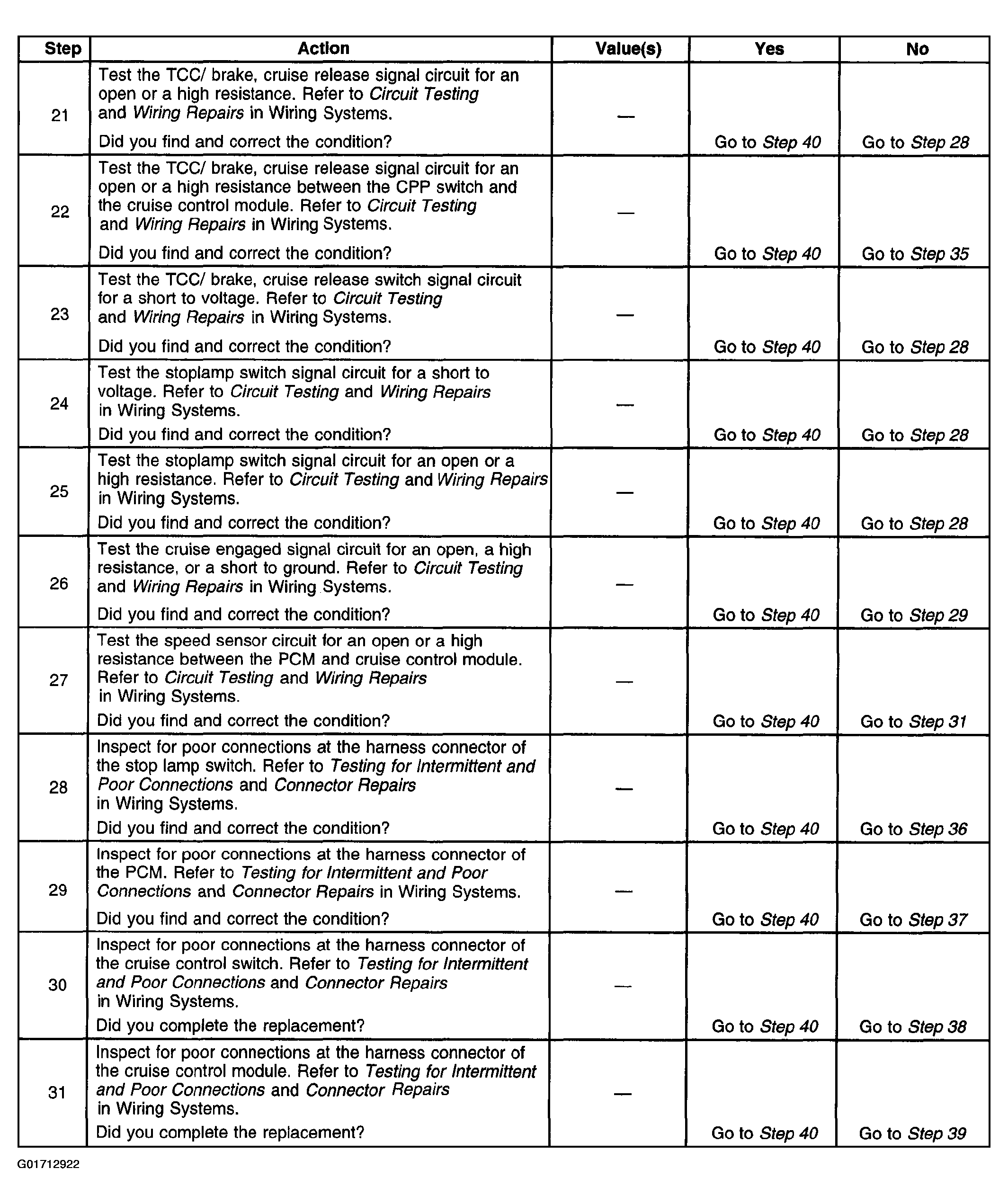

Fig 3: Cruise Control Inoperative/Malfunctioning (4.3L, 4.8L, 5.3L & 6.0L Without ETC) Diagnosis (Steps 21-31)

Courtesy of GENERAL MOTORS CORP.

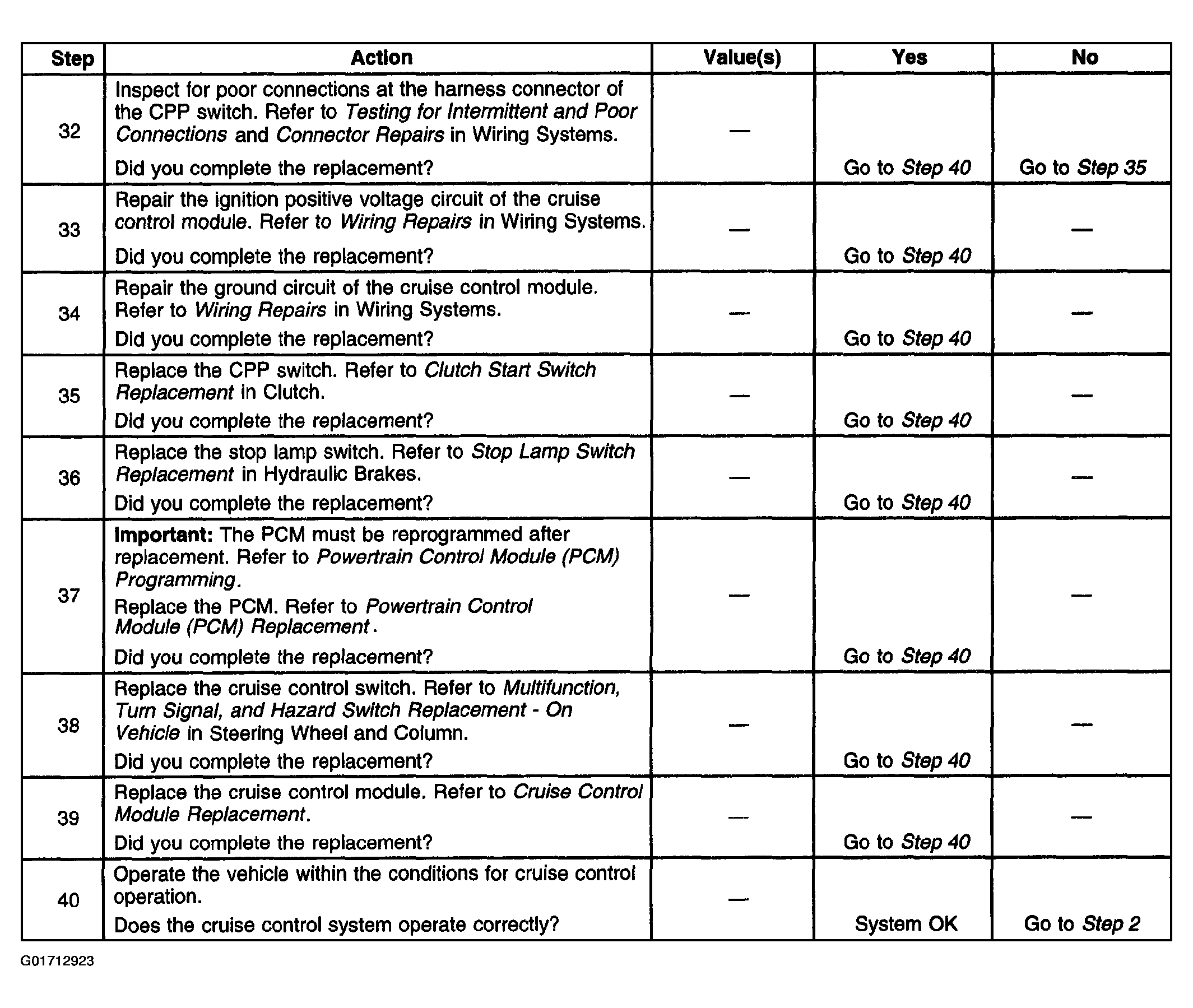

Fig 4: Cruise Control Inoperative/Malfunctioning (4.3L, 4.8L, 5.3L & 6.0L Without ETC) Diagnosis (Steps 32-40)

Courtesy of GENERAL MOTORS CORP.
