Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cupholder assembly. Refer to Cupholder Replacement (Except Pro)  or Cupholder Replacement (Pro)  .

    Important:  Observe the orientation of the switches. The red lights points towards the rear of the vehicle.

  2. Disconnect the wire connectors from the 2 switches.
    • Switch 1 is the power switch.
    • Switch 2 is the hot and cold switch.
  3. Remove the defective switch by pushing in the retaining tabs (1) while pushing the switch outwards.

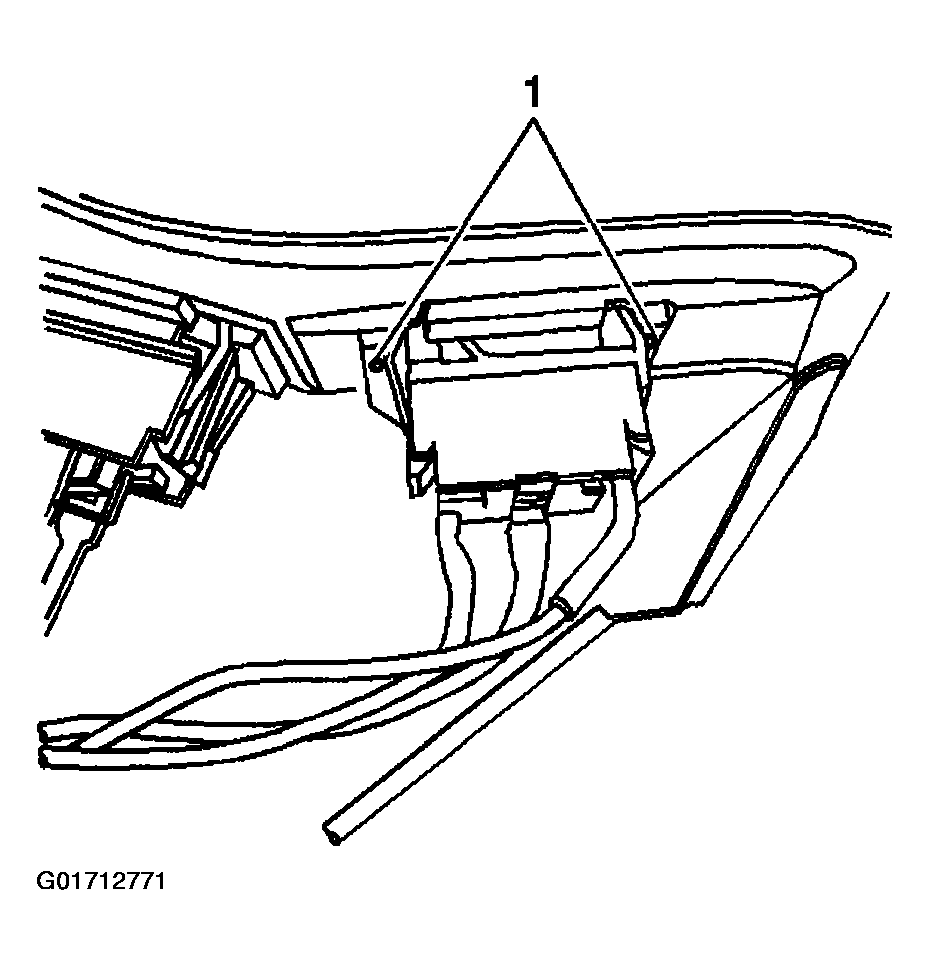

    Fig 1: Switch Retaining Tabs
    G01712771Courtesy of GENERAL MOTORS CORP.
