Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the console door.
  2. Remove the 4 bolts attaching the center console to the console bracket.

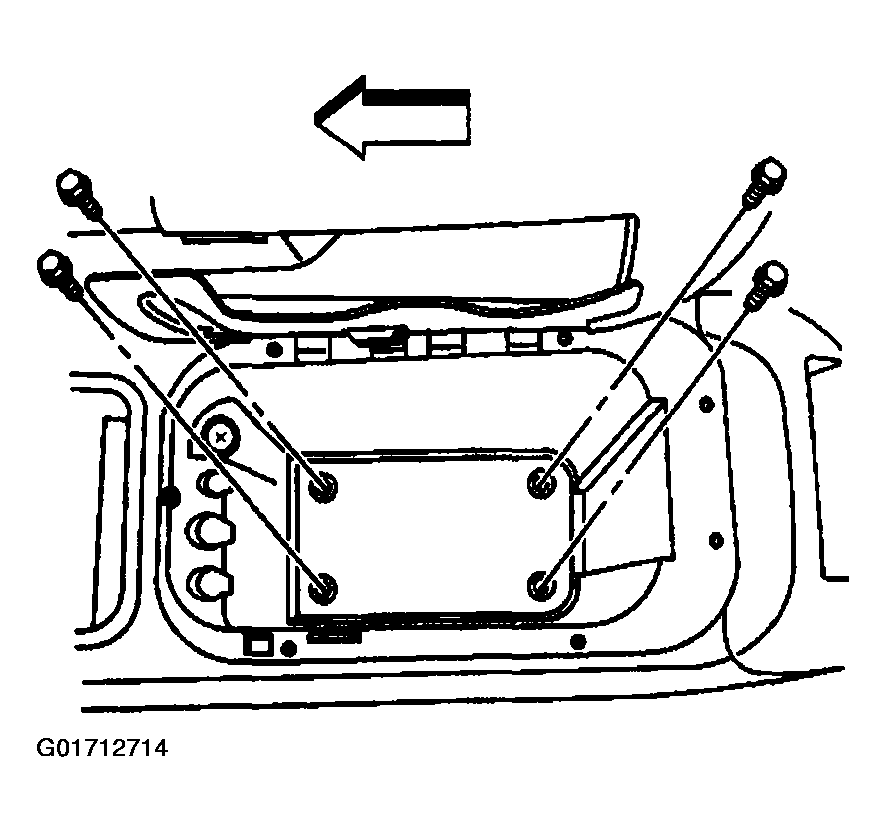

    Fig 1: Center Console To Console Bracket Bolts
    G01712714Courtesy of GENERAL MOTORS CORP.
  3. Remove the cupholder from the console by using a flat bladed tool to pry the cupholder out.

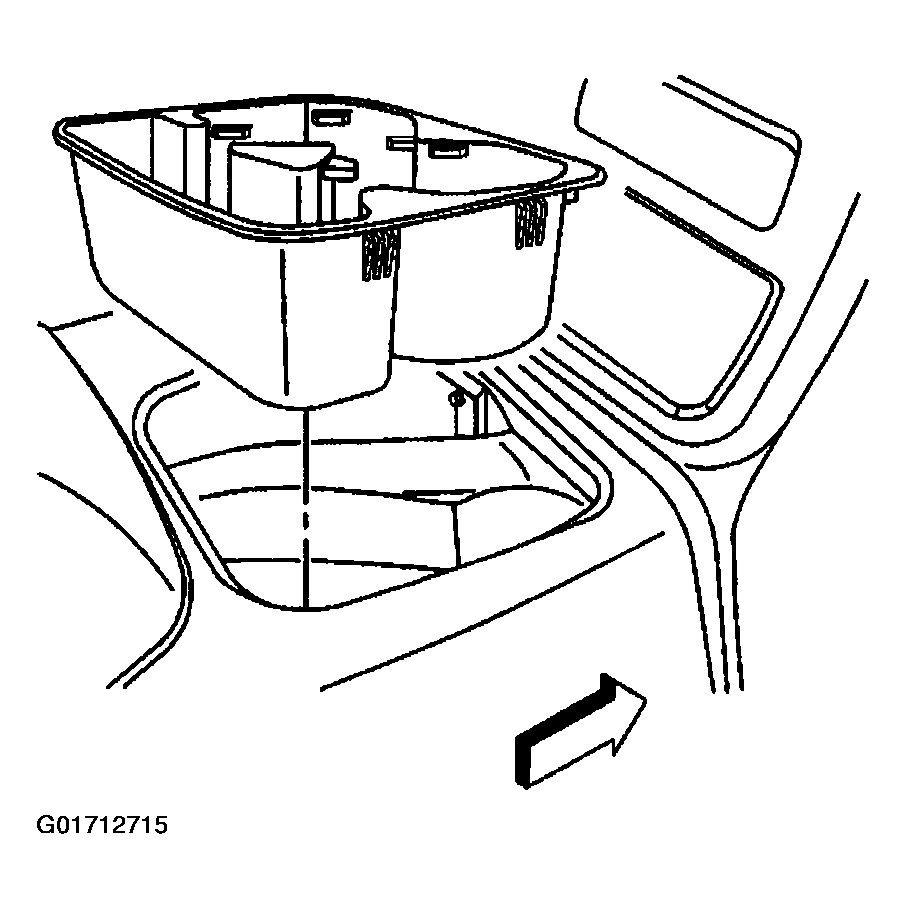

    Fig 2: Center Console Cupholder
    G01712715Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 screws retaining the center console (1) to the console extension (3).
  5. Remove the center console from the bracket.

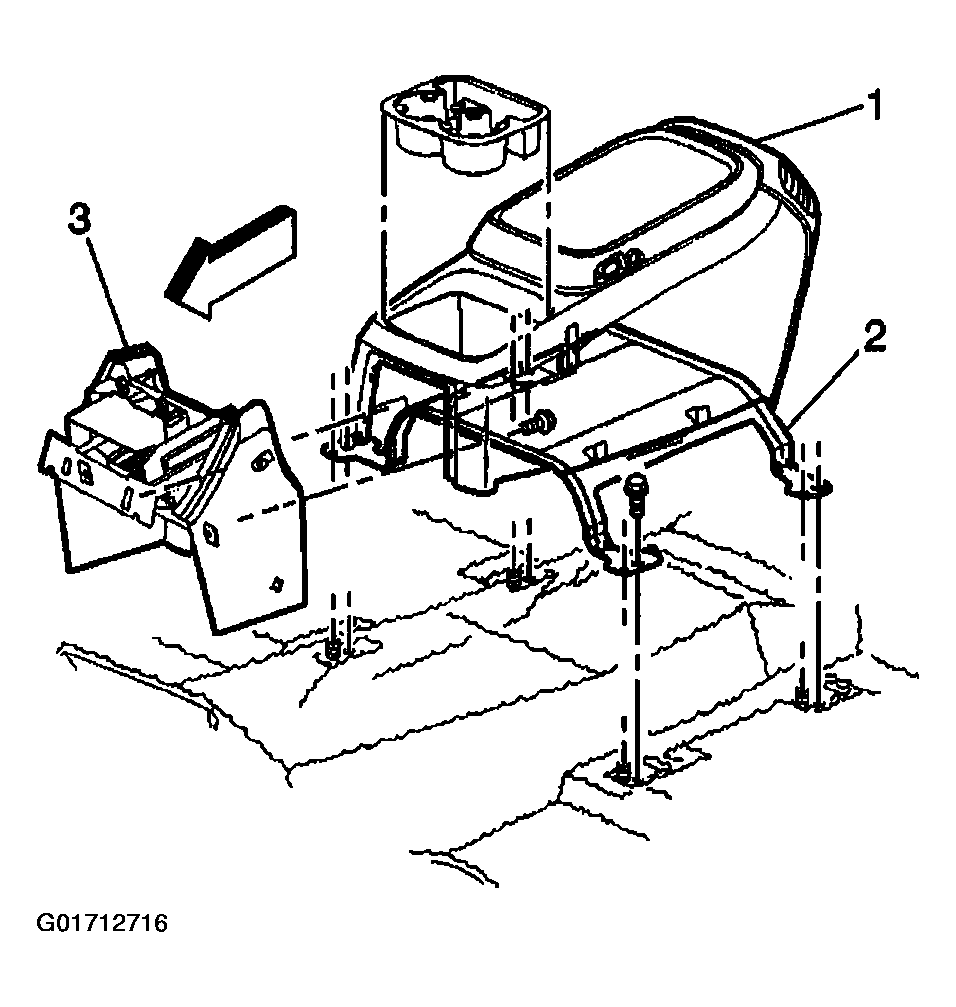

    Fig 3: Center Console
    G01712716Courtesy of GENERAL MOTORS CORP.

    Important:  Do not grab or pull on the CD storage door when removing the trim bezel

  6. Remove the screws securing the trim bezel to the console extension.
  7. Use a small prying device to gently push in the tabs underneath the trim bezel securing the top of the trim bezel.
  8. Remove the trim bezel.
  9. Remove the console extension upper compartment insert.

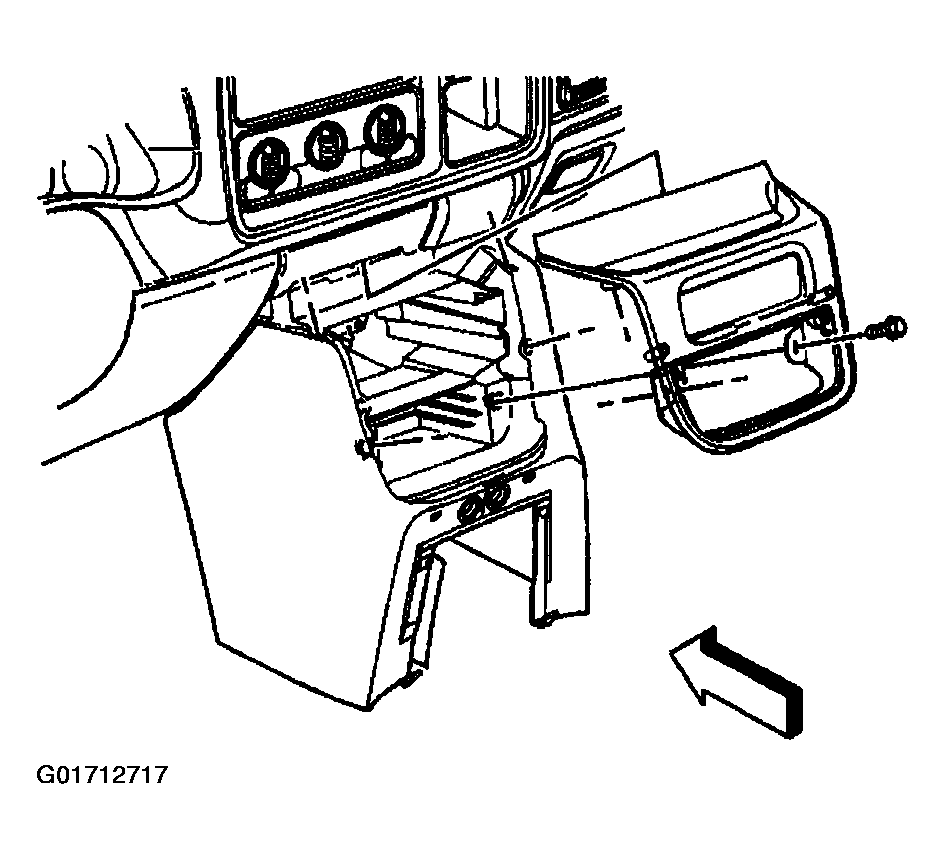

    10. Fig 4: Console Extension Upper Compartment Insert
    G01712717Courtesy of GENERAL MOTORS CORP.
  10. Remove the remote CD player, if equipped. Refer to REMOTE CD PLAYER REPLACEMENT .
  11. Remove the bolts attaching the console extension to the instrument panel (IP).
  12. Slide the extension rearward and unclip the extension from the upper fasteners.

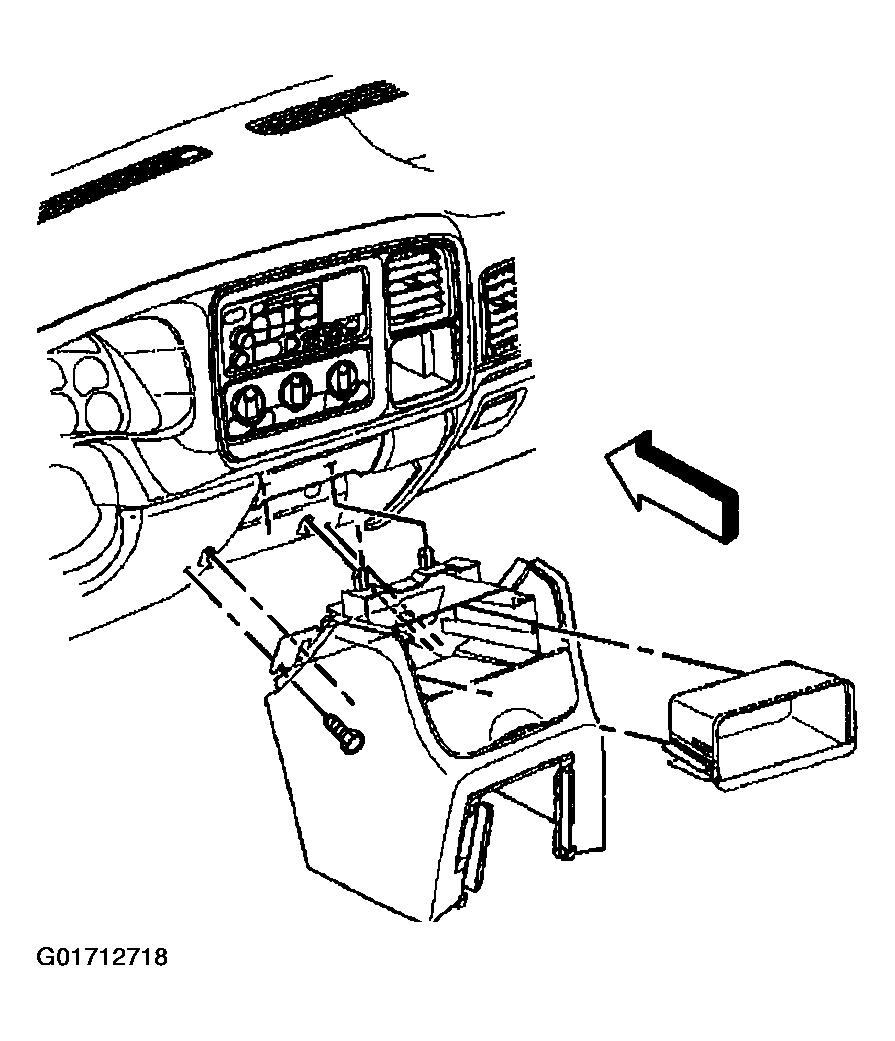

    Fig 5: Console Extension To Instrument Panel
    G01712718Courtesy of GENERAL MOTORS CORP.
